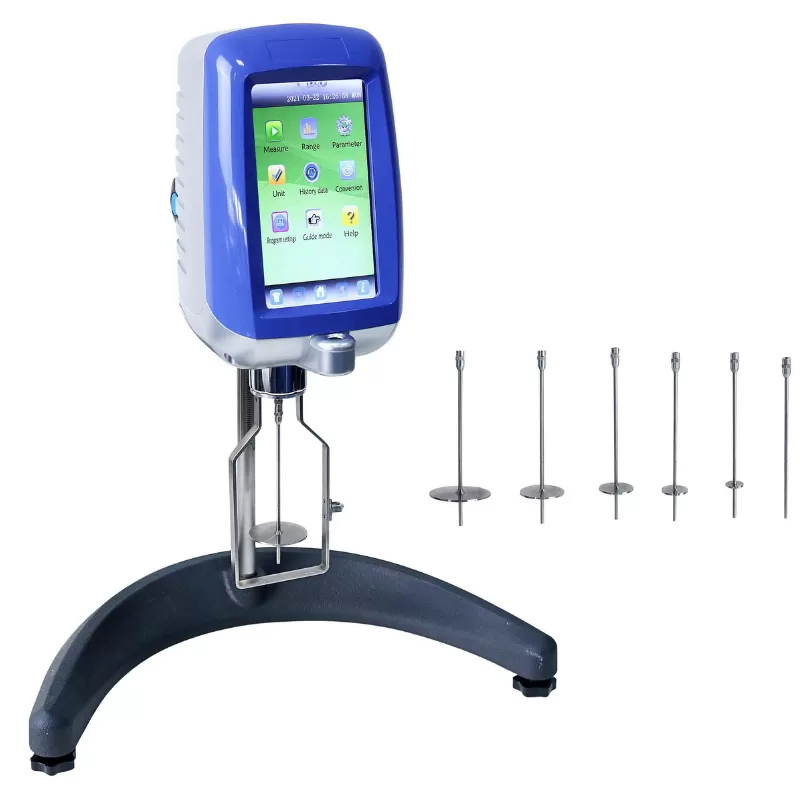

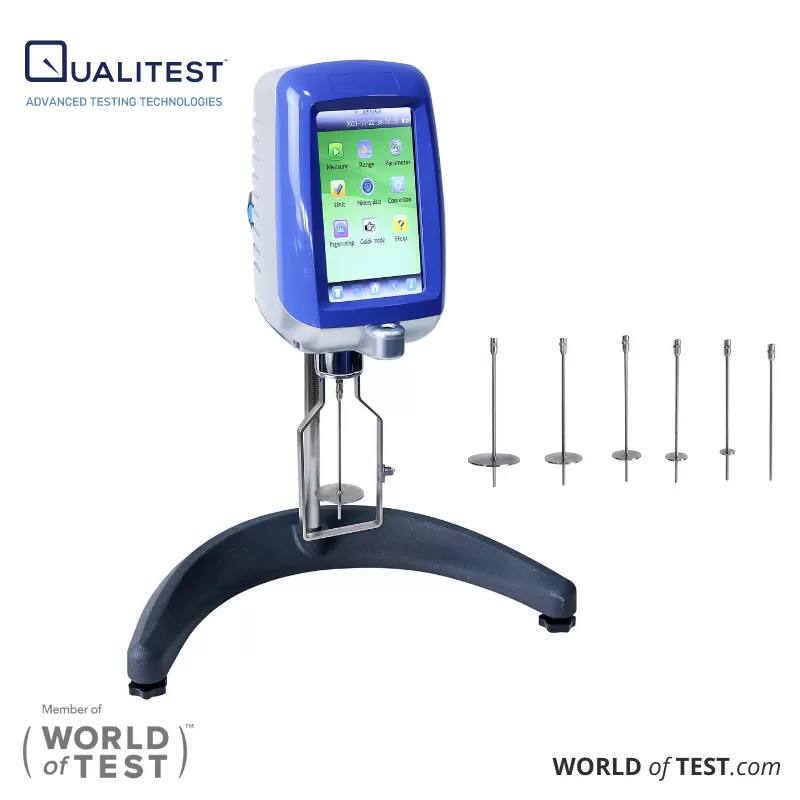

ViscoQT 1700/S and 1800/S Series Programmable Touch-screen Rotary Viscometer (Rheometer) Technical Specifications:
|
Ordering Information → Parameters ↓ |
ViscoQT 1700/S |
ViscoQT 1800/S |
|
Measurement Range (mPa.s) |
ViscoQT 1700/1S:1-2M ViscoQT 1700/2S:100-13M ViscoQT 1700/3S:200-26M ViscoQT 1700/4S:800-104M |
ViscoQT 1800/1S: 1-6M ViscoQT 1800/2S: 100-40M ViscoQT 1800/3S: 200-80M ViscoQT 1800/4S: 800-320M |
|
R.P.M (per min) |
0.3-100 |
0.1-250 |
|

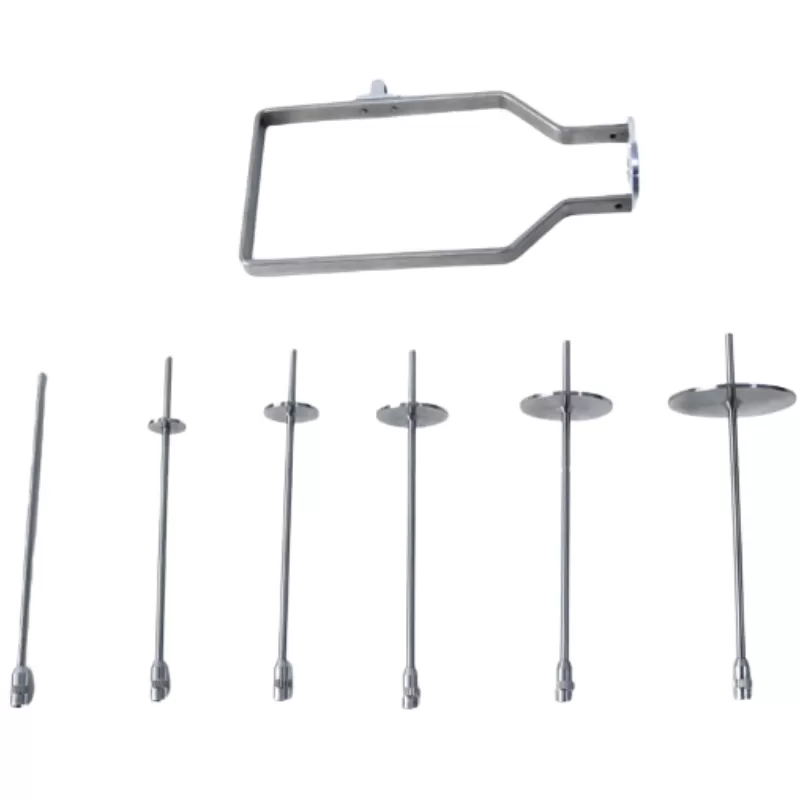

Rotors |
ViscoQT 1700（8）/1 : four rotors---No.1, No.2, No.3, No.4 (#0 is optional) ViscoQT 1700（8）/2、ViscoQT 1700（8）/3、ViscoQT 1700（8）/4: six rotors--- |
|
|
Measurement |
±1.0% (of the full range) |
|
|
Repeatability |
±0.5% (of the full range) |
|
|
Voltage |
Power Adapter （Input：110/220 V；50 /60 Hz； Output：15V；1.2A) |
|
|
Optional Accessories |
ViscoQT-ACC 1601---Low viscosity adapter （No.0 rotor） ViscoQT-ACC 1602---Small sample adapter（comes with NO.21、NO.27、NO.28、NO.29, and the max. measure range would be reduced to one-sixth） ViscoQT-ACC 1603---Mini single color printer ViscoQT-ACC 1608---Viscometer data collection and analyses software |
|
|
(M=1million) |
||
Optional Accessories:
- THD Series - Low-Temperature Thermostatic Bath
- ViscoQT-ACC 1600 - Standard Oil (500ml)
- ViscoQT-ACC 1601 - Low Viscosity Adapter (Equipped with the 0th rotor, capable of measuring 1.0 mPa.s samples)
- ViscoQT-ACC 1602 - Small Sample Adapter (Specifically designed for customers with small samples, requiring quantities as small as 5 to 18ml. The sample cup is easily cleaned, installed, removed, and observed. Accurate data on shear rate and shear stress can be obtained for detailed analysis of sample fluid characteristics. Disposable sample cups are available.)
- ViscoQT-ACC 1603 - Mini Single Color Printer
- ViscoQT-ACC 1604 - RTD Thermometer (-20°C to 120°C)
- ViscoQT-ACC 1605 - Thermoses (Designed to accurately measure the viscosity of heated oil, paraffin, asphalt emulsions, medicine, high polymers, and similar liquid materials at high temperatures. Allows temperature control of samples within a range of room temperature to +300°C. Programmable intelligent thermostat ensures temperature fluctuation within 0.1°C. Sample dosage is as small as 10ml, and disposable sample cups are available. Compatible with the standard SC4 spindle for easy use.)
- ViscoQT-ACC 1608 – For ViscoQT 1700-1800 Series Viscometer Data Collection and Programmed Analysis Software (Automates data collection and testing, generating viscometer graphs and recording measurement data each time. Allows comparison of up to 10 historical data sets, outputs Excel documents, enables programmable downloading, offline operation, data analysis, chart drawing, and printing.)
