eBT-V Mobile Rheometer for Fresh Concrete Design

• Compact design for portability and easy handling.
• Quick and effortless switching between operation modes.
• Cable-free operation for enhanced convenience.
• Powered by a rechargeable battery for mobility and independence from power outlets.
• Control the device using a smartphone for intuitive operation.
• Wirelessly transmit measurement results to a smartphone for real-time monitoring.
• Ideal for quality control, particularly in construction site environments.
• Equipped with a rechargeable battery to power the drive and electronics, ensuring independence from power sources.
• Data transfer facilitated via Bluetooth®, allowing for seamless connectivity.
• Export raw data and measurement evaluations as Excel files for further analysis and documentation.

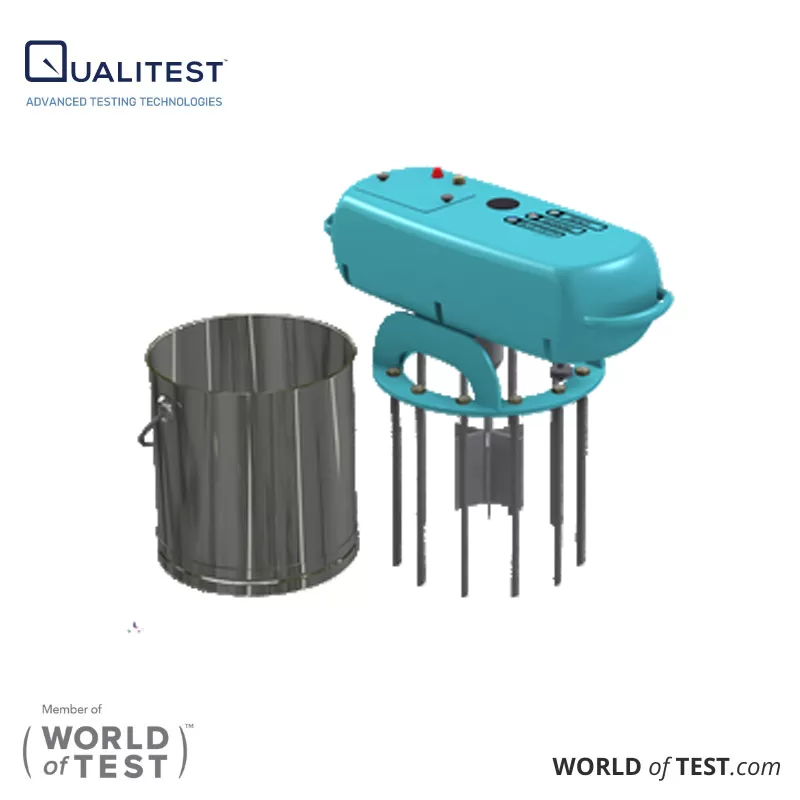

eBT-V Mobile Rheometer for Fresh Concrete

Qualitest-Schleibinger eBT-V Mobile is a portable compact rheometer designed specifically for testing fresh concrete in both lab and construction site settings. Unlike traditional methods like spread tables or slump flow tests, the eBT-V Mobile Rheometer for Fresh Concrete evaluates concrete under various loads, allowing for the determination of relative yield stress and viscosity.

This device offers two operational modes:

• P-Mode: Ideal for typical or vibrated concrete as well as stiff concrete. In P-Mode, the rheometer conducts a single revolution (360°) test in non-sheared concrete, minimizing issues like segregation and structural breakdown during measurement. A measuring probe attached to the device rotates around a centering rod, measuring the force applied. The speed profile is customizable, and measurements typically take less than one minute.
• V-Mode: Suited for modern concretes like self-compacting concrete (SCC) and ultra-high-performance concrete (UHPC). V-Mode utilizes a vane geometry approximation of a classical cylinder shape. The star arrangement of wings on the probe minimizes sliding against the container walls, while integrated anti-slip rods on the device holder prevent slipping on the container surface. The eBT-V Mobile Rheometer for Fresh Concrete is mounted on the device holder, with the vane probe attached to the drive shaft. Torque on the vane probe is measured, and like in P-Mode, the speed profile is customizable.
