Name: Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210
SKU: S7MZDYC8WQ
Availability: InStock
Rating: 5 (1 reviews)

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

Contact

Product code: S7MZDYC8WQ

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210 is a compact desktop CNC lathe equipped with…

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210 Technical Specifications

Turning diameter over bed(max)	210mm
Chuck diameter	100mm
Spindle speed	300-1750r/min(control speed of G code)
Spindle through-hole	26mm
Spindle mount	MT4
Spindle motor power	1100W
X axis travel	90mm
Z axis travel	300mm
X/Z axis motor	400W Servo Motor
The max moving speed	8000mm/min
The max feeding speed	2000mm/min
Control system	KY 980Tc Turning CNC System, Optional siemens 808D
MPG handwheel	4 axis
Automatic tool change system(ATC)	4 Tools (option 8 tools)
Tool dimension	12*12mm
Tailstock taper	MT2
Tailstock sleeve diameter	26mm
Travel of tailstock	25mm
Positioning accuracy	0.03mm
Repeatability accuracy	0.02mm
Power	220VAC / 110VAC
Weight(NW/GW)	220/250KG

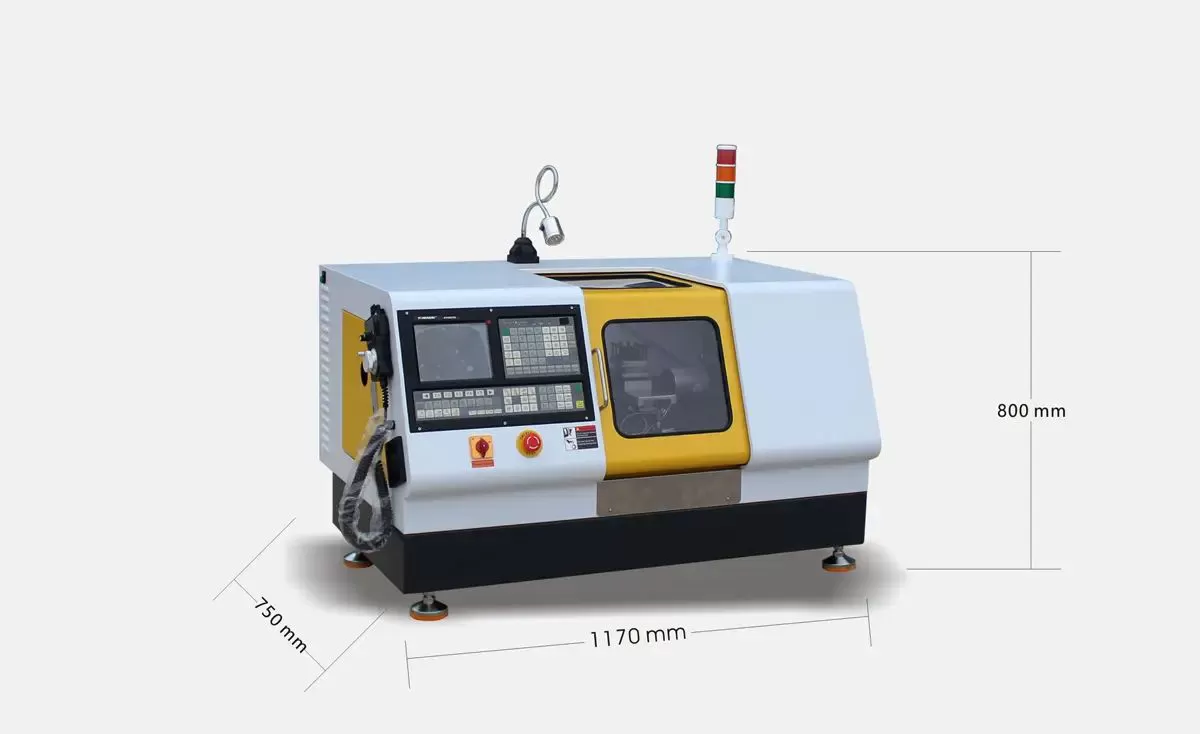

Overall dimension	1170750800mm
Packing size	12008601000mm

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210 Features

High performance 2 axis lathe industry CNC controller.

8-inch color display with a selectable interface in English and other language.

Standard features include an MPG handwheel for precise manual control

Compact design with high-quality cast construction and a high-strength guideway

Automatic four-position tool post with a 1.3kW, 1750 RPM spindle

Safety feature: Controller automatically stops operation when the door is opened

High-quality 2-axis step motor (optional AC servo motor available)

Operates on 110V or 220V power supply

Capable of cutting a variety of materials, including plastics, aluminum, stainless steel, and titanium

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210 is a compact desktop CNC lathe equipped with the KY980Tc Turning CNC System, featuring a multilingual interface. Its standard specifications include an MPG handwheel, an automatic four-position tool post, high-quality cast construction, a high-strength guideway, precision ball screws, a semi-automatic lubrication system, and flood coolant. An interlocking guard enhances safety. The XZ-axis motors are AC servo motors, ensuring precision and reliability.

Designed for cutting a variety of tough materials, including wax, plastic, acrylic, free-cutting alloys, aluminum, and steel, it is well-suited for educational settings, training programs, and small-scale machining tasks. Compatible with leading software such as MasterCAM, UG, Fusion 360, and SolidWorks.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

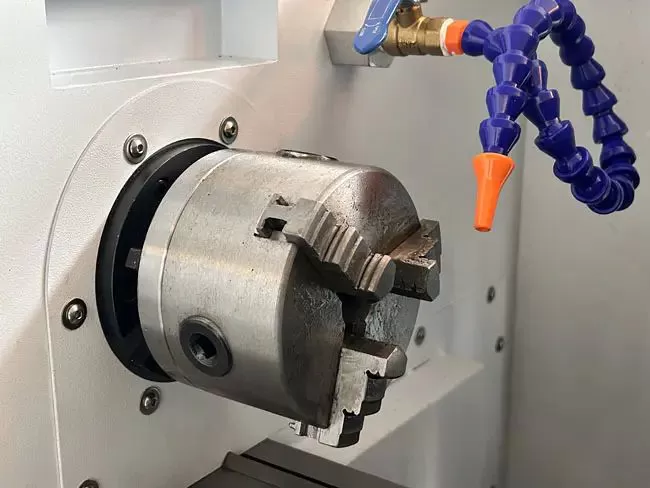

Chuck with three jaws

100mm (4-Inch) Self-Centering Chuck with Optional 4-Jaw Chuck uses a cast iron spindle box for excellent rigidity and stability, enhancing machining precision. The spindle is equipped with an encoder, allowing for accurate threading operations.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

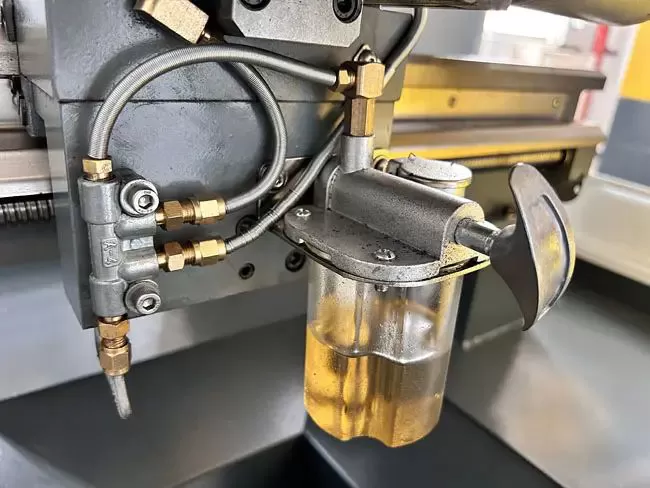

Lubrication system

This machine features a guide rail lubrication system, enhancing durability and extending its lifespan.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

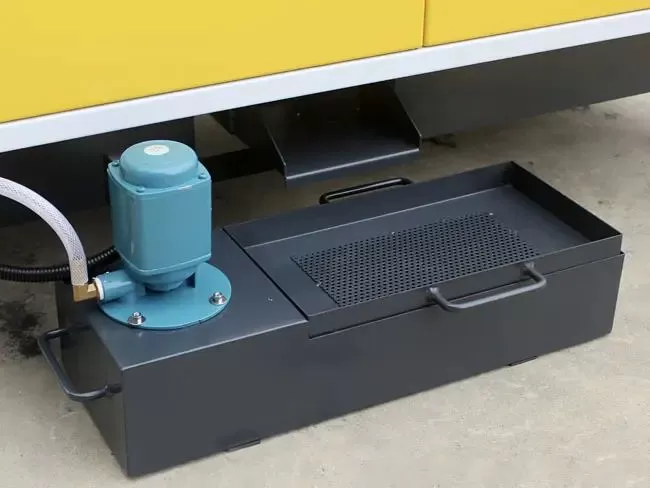

Efficient Cooling and Filtration

The large-capacity circulation cooling water tank, with a built-in filtration system, efficiently dissipates heat and removes impurities. This ensures optimal performance and extends tool lifespan. Supports both manual and G-code automatic control.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

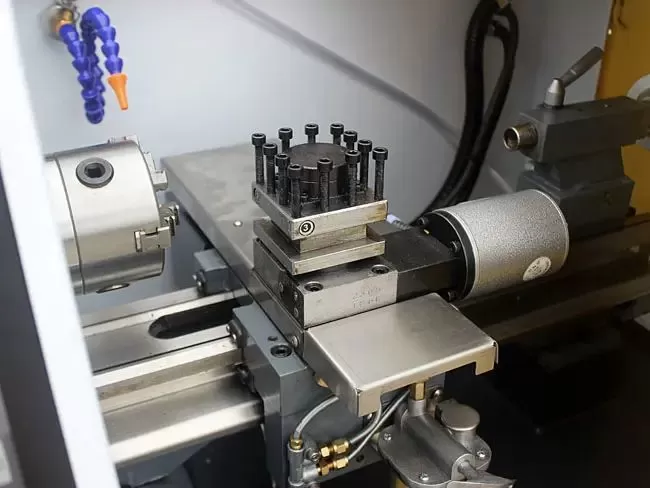

Automatic tool change

Equipped with a 4-station automatic tool changer for handling complex parts, with an optional 8-station upgrade. Supports turning tools with 12×12mm specifications.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

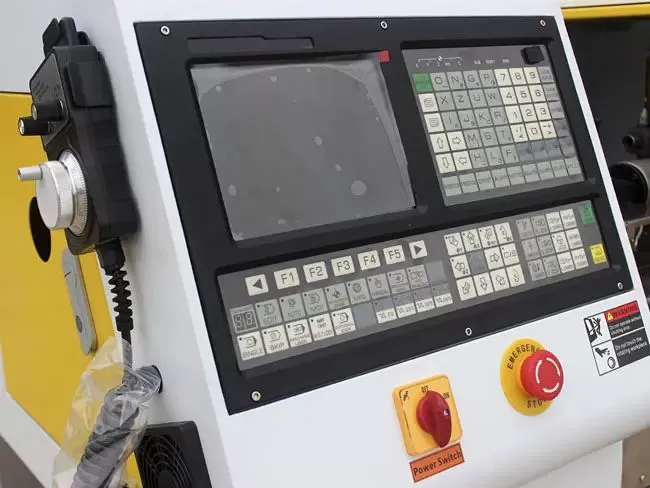

Industrial Lathe CNC system

The industrial CNC lathe system offers enhanced stability, durability, and simplified operation. The integrated handwheel trial cutting function lets you verify program accuracy and positioning before final machining.

Mini CNC Lathe for Preparation of Round Tensile Specimens – QualiLathe 210

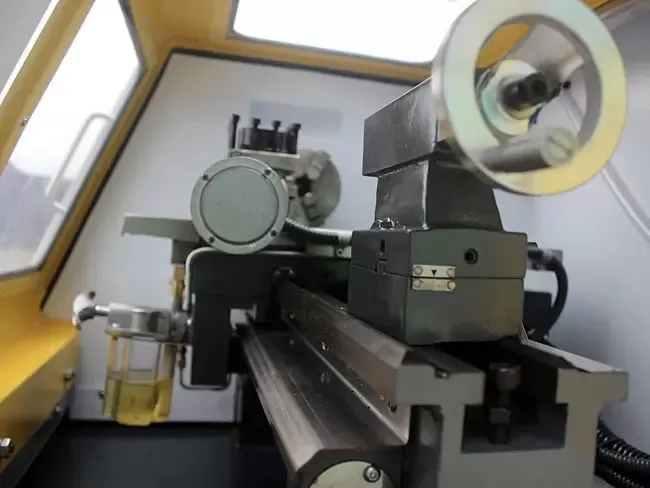

Machine tool body

The machine tool body is made from high-quality cast materials and includes a lathe tailstock. A semi-automatic lubrication system protects the guide rail and ball screws, ensuring long-lasting precision.

Optional Accessories

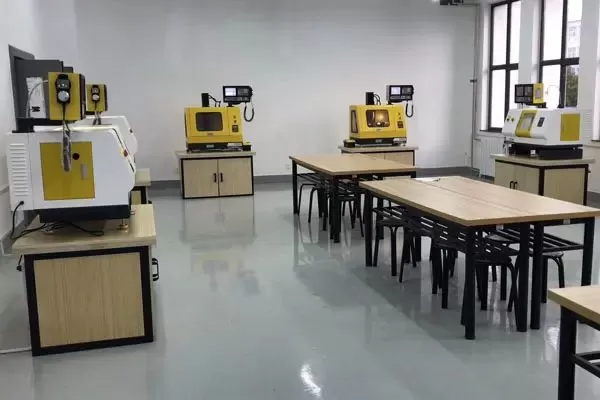

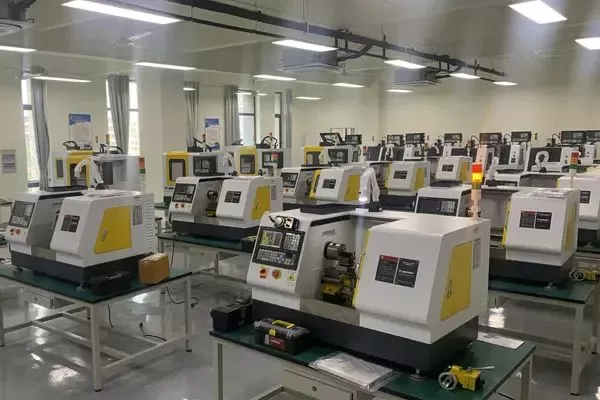

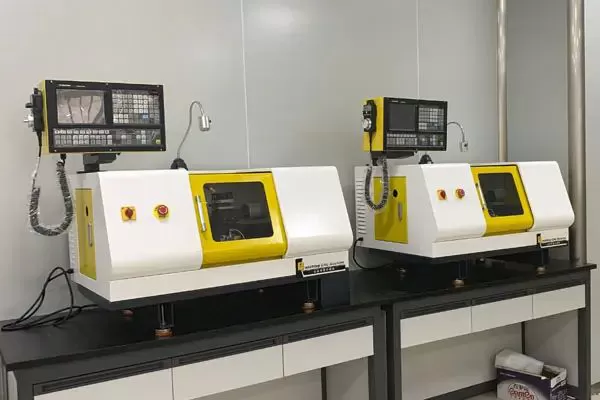

Customer Case
