CNC Lathe – QualiLathe-210B

Contact

Product code: HED3LCVQWO

CNC Lathe – QualiLathe-210B is a compact CNC lathe equipped with the KY980Tc Turning CNC system (optional Siemens or…

CNC Lathe – QualiLathe-210B Technical Specifications

Turning diameter over bed(max)	210mm
Chuck diameter	100mm
Spindle speed	300-1750r/min(control speed of G code)
Spindle through-hole	26mm
Spindle mount	MT4
Spindle motor power	1100W
X axis travel	90mm
Z axis travel	300mm
X/Z axis motor	400W Servo Motor
Max. moving speed	8000mm/min
Max. feeding speed	2000mm/min
Control system	980Tc Turning CNC System, Optional siemens 808D
MPG handwheel	4 axis
Automatic tool change system(ATC)	4 Tools (option 8 tools)
Tool dimension	12x12mm
Tailstock taper	MT2
Tailstock sleeve diameter	20mm
Travel of tailstock	25mm
Positioning accuracy	0.02mm
Repeatability accuracy	0.03mm
Power Supply	220VAC / 110VAC
Weight(NW/GW)	280/320KG
Overall dimension	1170x700x1300mm
Packing size	1200x860x1500mm

CNC Lathe – QualiLathe-210B Features

High-Performance 2-Axis CNC Lathe Controller

8-inch color screen with a selectable interface in English and other

Standard features include an MPG handwheel

Built with high-quality cast materials for a compact design and reinforced guideway

Automatic 4-position tool post

Controller automatically stops operation when the door is opened

High-quality 2-axis AC servo motor

USB and RS232 ports with DNC functionality

G-code speed control

An excellent choice for DIY projects, hobbyists, and educational training in CNC machining

CNC Lathe – QualiLathe-210B

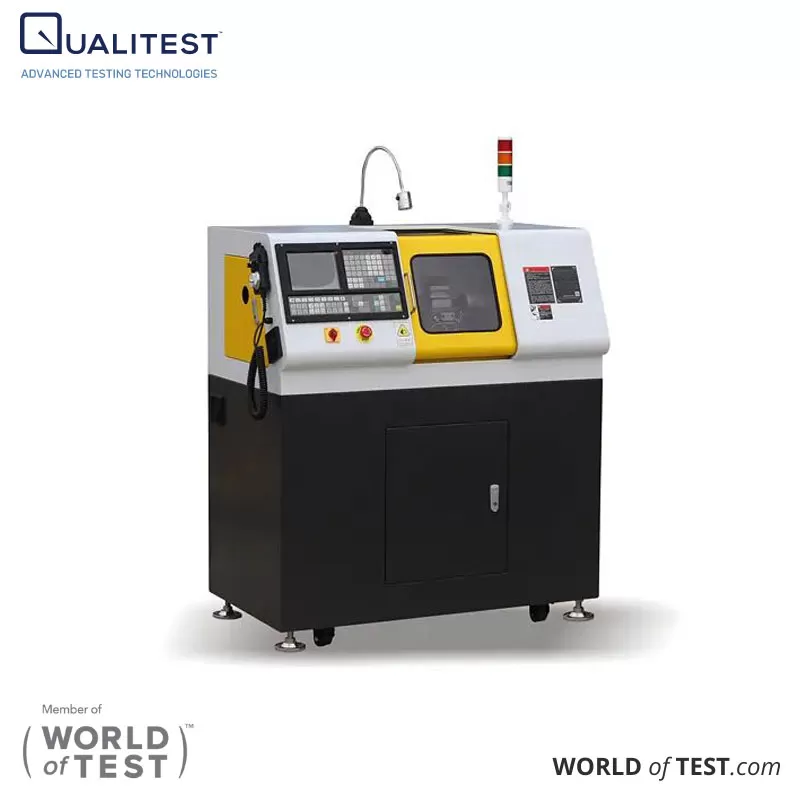

CNC Lathe – QualiLathe-210B is a compact CNC lathe equipped with the KY980Tc Turning CNC system (optional Siemens or FANUC system) and supports a multilingual interface. The standard configuration includes an MPG handwheel, an automatic 4-position tool post (optional 8-tool setup), high-quality cast materials, a reinforced guideway, a ball screw system, an automatic lubrication system, and flood coolant, along with an interlocking safety guard.

The XZ-axis motors use servo technology, making this lathe ideal for machining various tough materials, including wax, plastic, acrylic, free-cutting alloys, aluminum, and steel. It is compatible with software like MasterCAM, UG, Fusion 360, and SolidWorks.

Designed for educational settings and small job shops, this lathe performs multiple functions, including turning inner and outer cylindrical surfaces, end surfaces, taper surfaces, and threading shafts.

CNC Lathe – QualiLathe-210B

Chuck with three jaws

The 100mm (4-inch) self-centering chuck comes with an optional 4-jaw chuck. It features a cast iron spindle box, providing excellent rigidity and stability for precise machining. Equipped with an encoder, the spindle allows for accurate thread cutting.

CNC Lathe – QualiLathe-210B

Lubrication system

This machine features a guide rail lubrication system, enhancing durability and extending its lifespan.

CNC Lathe – QualiLathe-210B

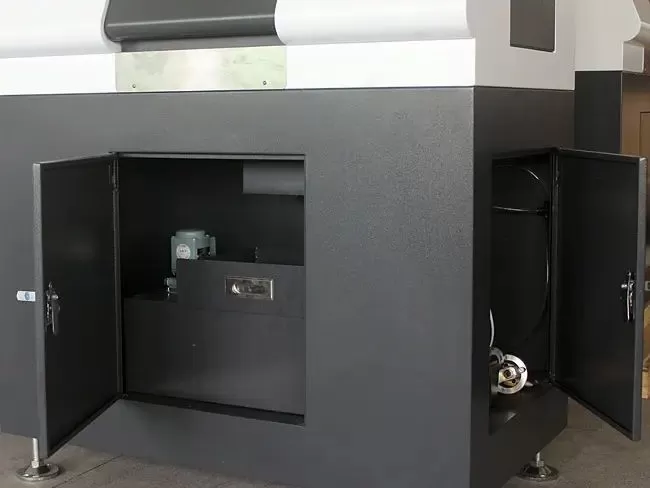

Efficient Cooling and Filtration

Our large-capacity circulating coolant tank, equipped with a filtration system, efficiently dissipates heat and removes impurities to ensure optimal performance and extend tool life. It supports both manual operation and G-code automated control.

CNC Lathe – QualiLathe-210B

Automatic tool change

Equipped with a 4-station automatic tool changer for handling more complex parts, with an optional 8-station upgrade. Supports turning tools with 12×12mm specifications.

CNC Lathe – QualiLathe-210B

Industrial Lathe CNC system

The industrial CNC lathe system offers enhanced stability, durability, and simplified operation. Its integrated handwheel trial-cutting function allows you to verify program accuracy and positioning before final machining, ensuring precision and efficiency.

CNC Lathe – QualiLathe-210B

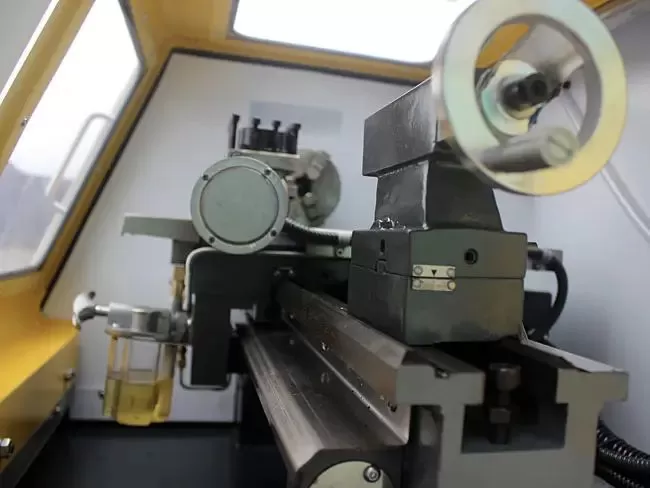

Machine tool body

The machine tool body is made from high-quality cast materials and includes a lathe tailstock. Its semi-automatic lubrication system protects the guide rails and ball screws, ensuring exceptional precision and extended lifespan.

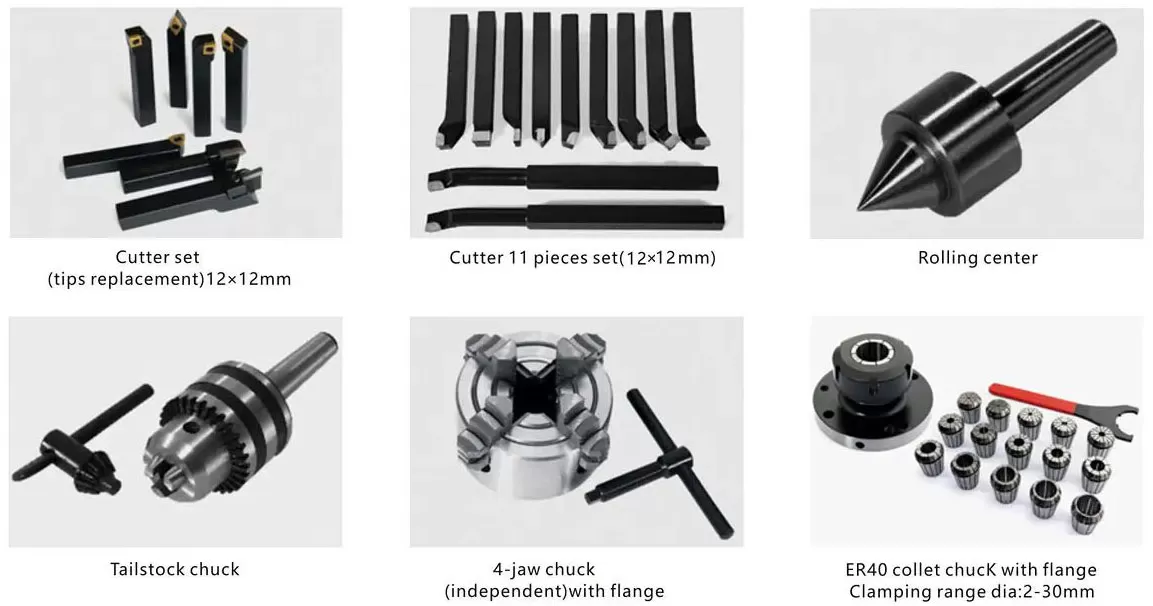

Optional Accessories

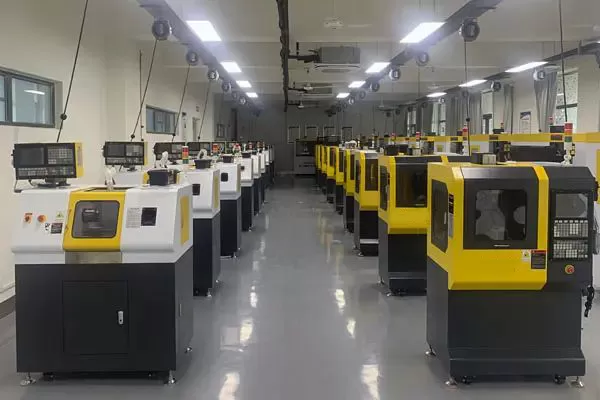

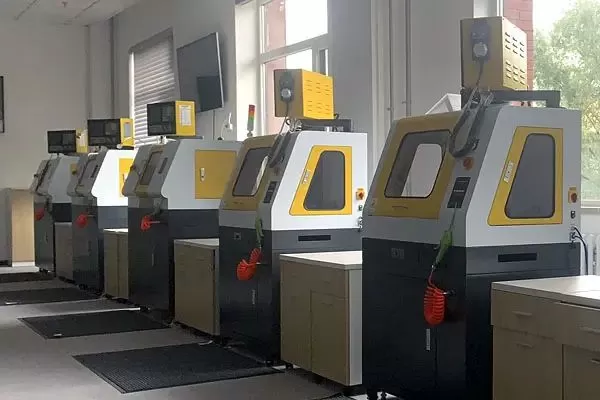

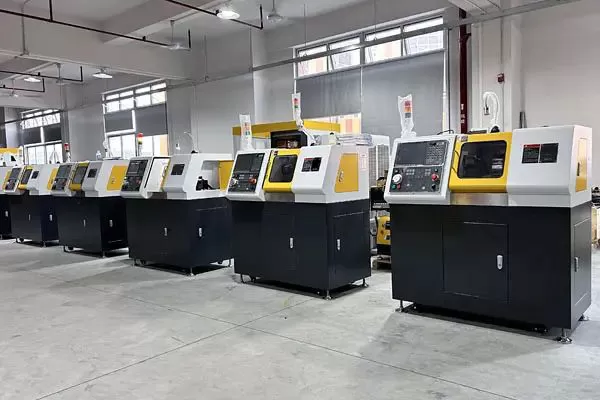

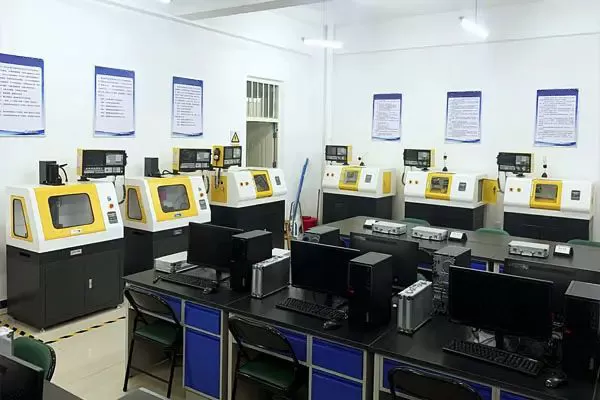

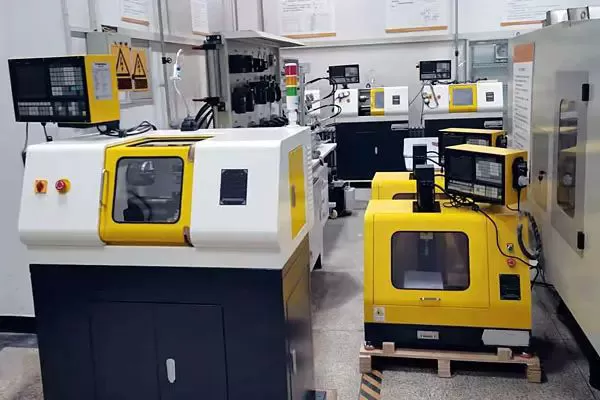

Customer Case
