Micro CNC Milling Machine QualiMill M4

Contact

Product code: SFNJ7D6TKE

Category: CNC Milling & Lathe Machines

Micro CNC Milling Machine QualiMill M4 is a high performance Micro CNC Milling Machine suitable for metal and plastic…

Micro CNC Milling Machine QualiMill M4 Technical Specifications

X axis travel	230mm
Y axis travel	130mm
Z axis travel	220mm
Tool DIA. range	2-12mm or 4-16mm
Control system	KY1000MC CNC Controller
MPG hand wheel	4 axis
Spindle motor	2.2kw or 1.1kw
Spindle speed	100-24000r/min or 300-3500r/min
Max moving speed	2000mm/min
Max feeding speed	1000mm/min
Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
Transmission	Ball screw
Guide rail	High-precision linear guide
Table size	460*130mm
T slot (amount*width)	35*12mm
Max. load	30kg

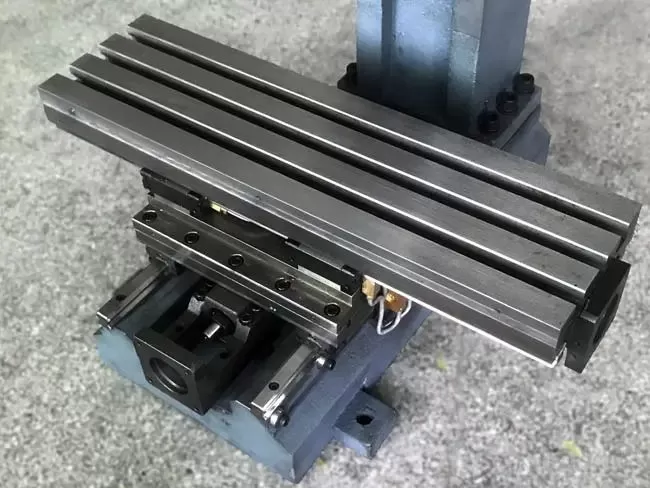

Table structure	Full cast iron
Power	220VAC / 110VAC
Weight(NW/GW)	165/200kg

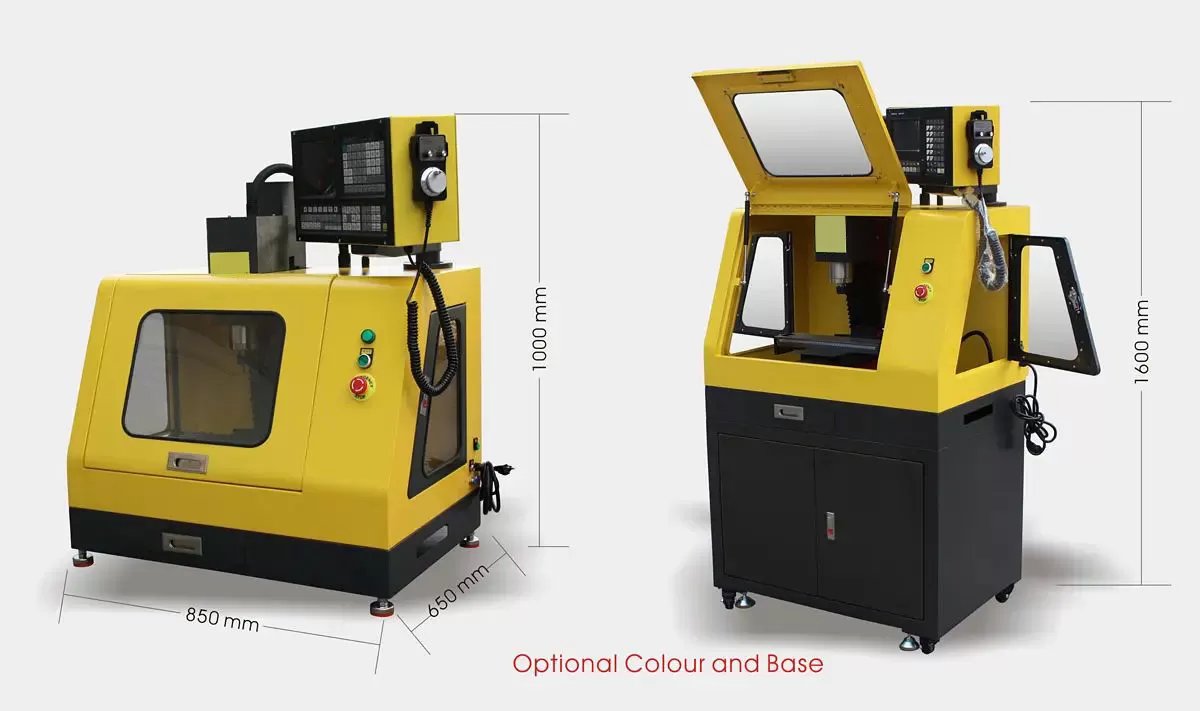

Overall dimension	8506501000mm
Packing size	9307501200mm

Micro CNC Milling Machine QualiMill M4 Features

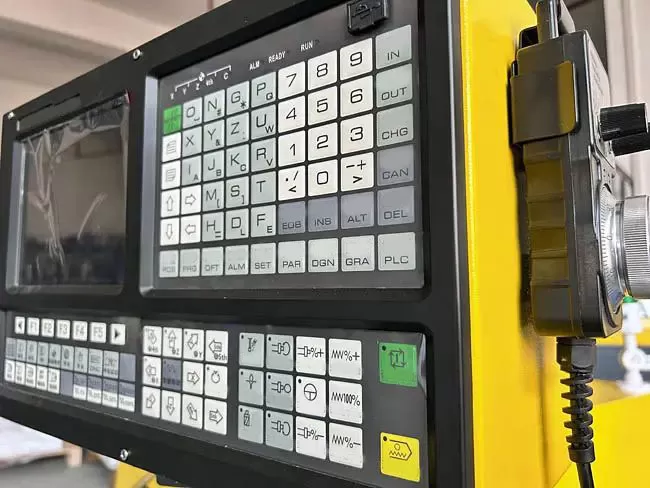

High performance 4 axis milling CNC controller.
Powered by an advanced ARM CPU and ultra-large-scale programmable FPGA, enabling real-time multi-task control and hardware interpolation for high-efficiency, micron-level precision machining.
Standard configuration includes an MPG handwheel for enhanced control.
High-precision linear guide ensures smooth and accurate movement.
Constructed with premium casting materials for a more compact and durable design.

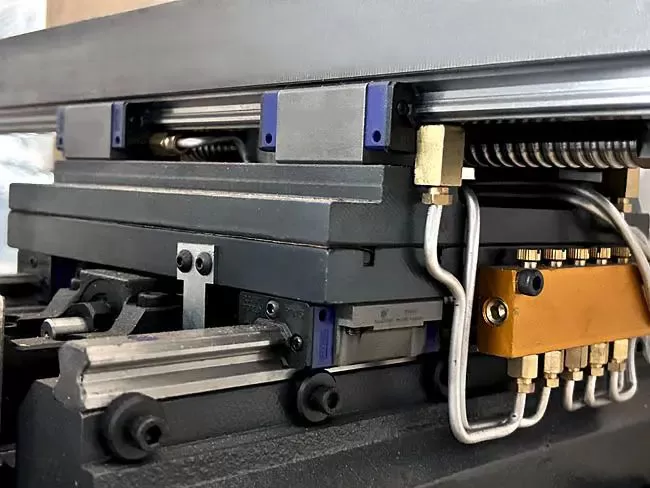

Semi-automatic lubrication system extends rail life for long-term reliability.
Equipped with a high-torque, brushless 3-axis stepper motor for superior performance.
Pre-installed 4-axis fast interface for expanded functionality.

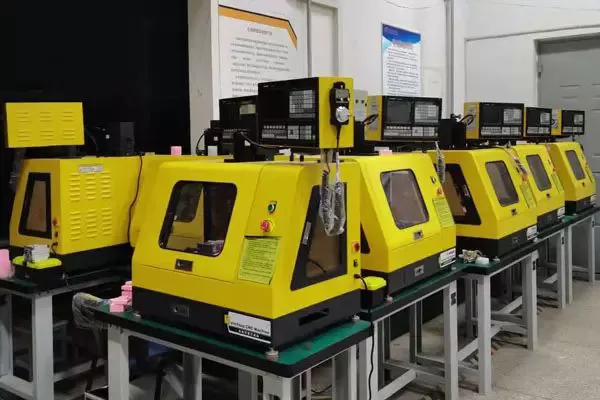

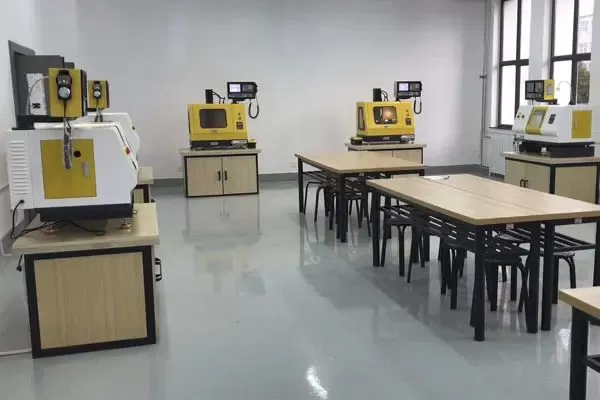

An excellent choice for DIY enthusiasts, hobbyists, and CNC education & training programs.

Micro CNC Milling Machine QualiMill M4

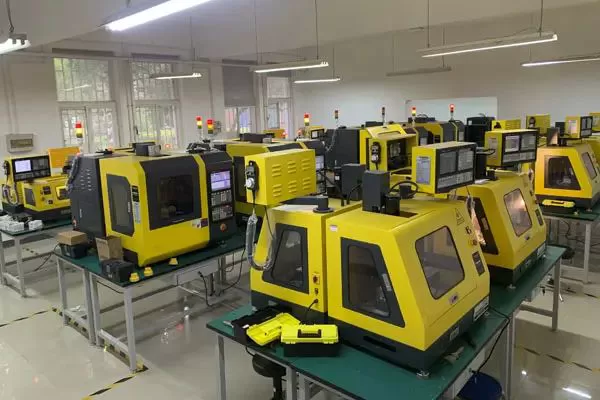

Micro CNC Milling Machine QualiMill M4 is a high performance Micro CNC Milling Machine suitable for metal and plastic specimens, ideal for universities and R&D labs.

QualiMill M4 is a compact and user-friendly CNC milling machine designed for high stability and precision. Equipped with a high-performance 4-axis CNC controller, it supports multiple language interfaces and includes an MPG handwheel as standard.

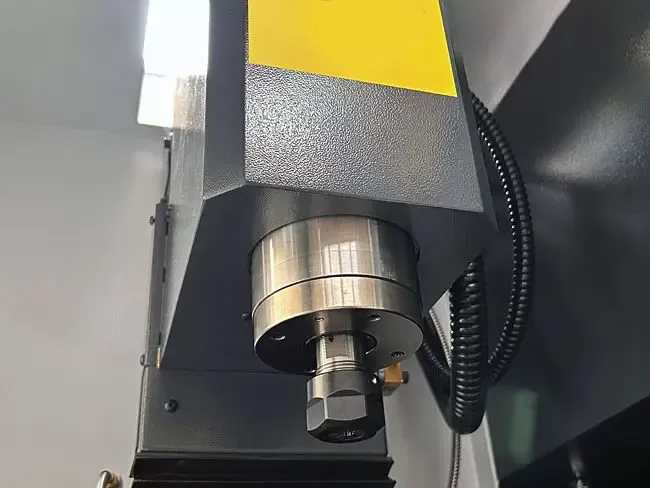

Built with premium-grade cast materials, the machine features high-precision linear guides, ball screws, and a semi-automatic lubrication system. Its fully enclosed, high-visibility interlocking guard ensures safety, while the frequency-controlled water-cooled spindle motor delivers speeds up to 24,000 RPM (optional servo motor: 100–3,500 RPM).

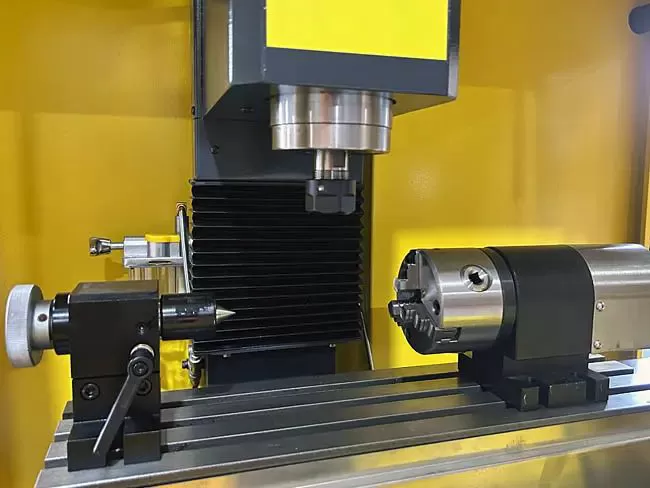

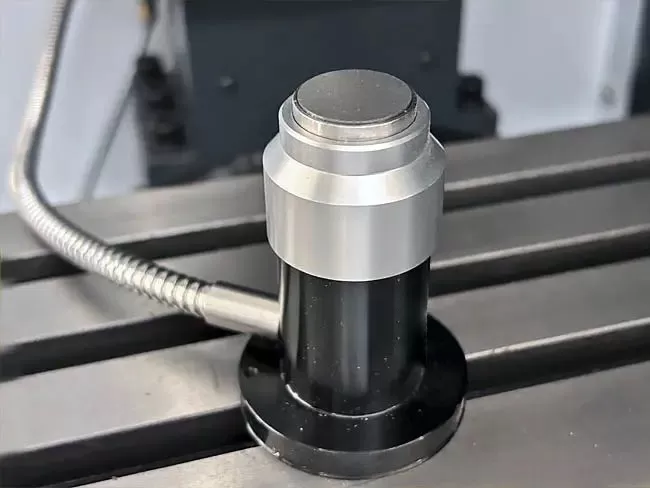

The standard XYZ axis operates on a stepper motor, with an optional AC servo motor upgrade. Additional options include an automatic alignment instrument and a 4th axis with a harmonic reducer.

Ideal for cutting a variety of materials, including wax, plastic, acrylic, free-cutting alloys, aluminum, and steel. Compatible with leading software such as MasterCAM, UG, Fusion 360, and SolidWorks. Perfect for technology development, advertising design, art, vocational training, and CNC enthusiasts.
