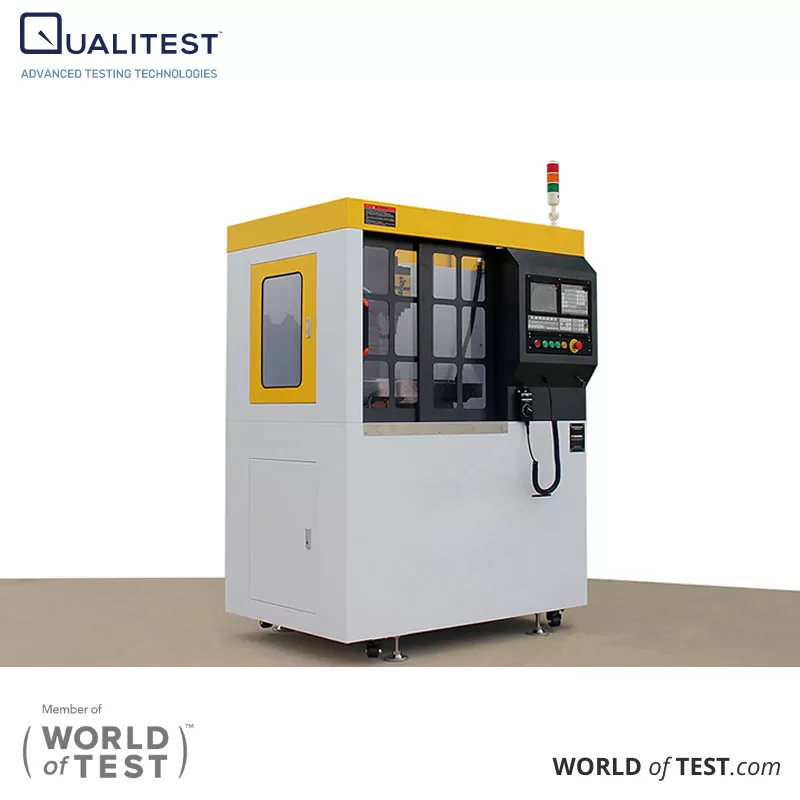

Name: 4 Axis CNC Milling Machine – QualiMill-300A
SKU: MIRJ0TD53H
Availability: InStock
Rating: 5 (1 reviews)

4 Axis CNC Milling Machine – QualiMill-300A

Contact

Product code: MIRJ0TD53H

4 Axis CNC Milling Machine – QualiMill-300A ensures precise and efficient operation. The standard specifications…

4 Axis CNC Milling Machine – QualiMill-300A Technical Specifications

X axis travel	310mm
Y axis travel	180mm
Z axis travel	290mm
A axis Rotate	360°(optional)
Table size	550x180mm
Spindle taper	BT30
Tool DIA. range	4-16mm
T slot (amount*width)	3x12mm
Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
Control system	KY1000MC CNC Controller
MPG hand wheel	4 axis
Spindle motor	1.5KW(2.2KW optional)
Spindle speed	100-3500r/min(24000r/min optional)
Max. moving speed	8000mm/min
Max. feeding speed	4000mm/min
Power of X/Y/Z	Servo motor 750W
Transmission	Ball screw
Max. load	40kg
Table structure	Full cast iron
Guide rail	High-precision linear guide
Voltage	230/120V (110V is also available)
Weight(NW/GW)	600/650kg
Overall dimension	1360x990x1800mm
Packing size	1400x1050x2000mm

4 Axis CNC Milling Machine – QualiMill-300A Features

Designed and manufactured with a strong structural foundation, ensuring adaptability for future enhancements.

High-performance 4-axis CNC milling controller, KY1000MC CNC Controller, with optional Siemens 808D or GSK980MDc controllers.

The KY1000MC supports five feed axes (including the C-axis), two analog spindles, 1ms high-speed interpolation, and 0.1μm control precision—delivering superior machining efficiency, accuracy, and surface quality.

Configurable axis names and types (X, Y, Z, 4th, and 5th) with a 1ms interpolation period and precision of 1μm or 0.1μm. Maximum speed reaches 60m/min (up to 24m/min at 0.1μm precision). The system integrates a servo spindle for continuous positioning, rigid tapping, and precise threading. Built-in multi-PLC programs allow selectable program execution. Additional features include statement macro command programming, parameterized macro program calls, metric/inch programming, automatic tool setting, chamfering, and tool life management. The interface supports English and other languages, with USB connectivity for file operations, system configuration, and software updates.

Standard configuration includes an MPG handwheel.

The MPG handwheel enables precise electronic control of each axis.

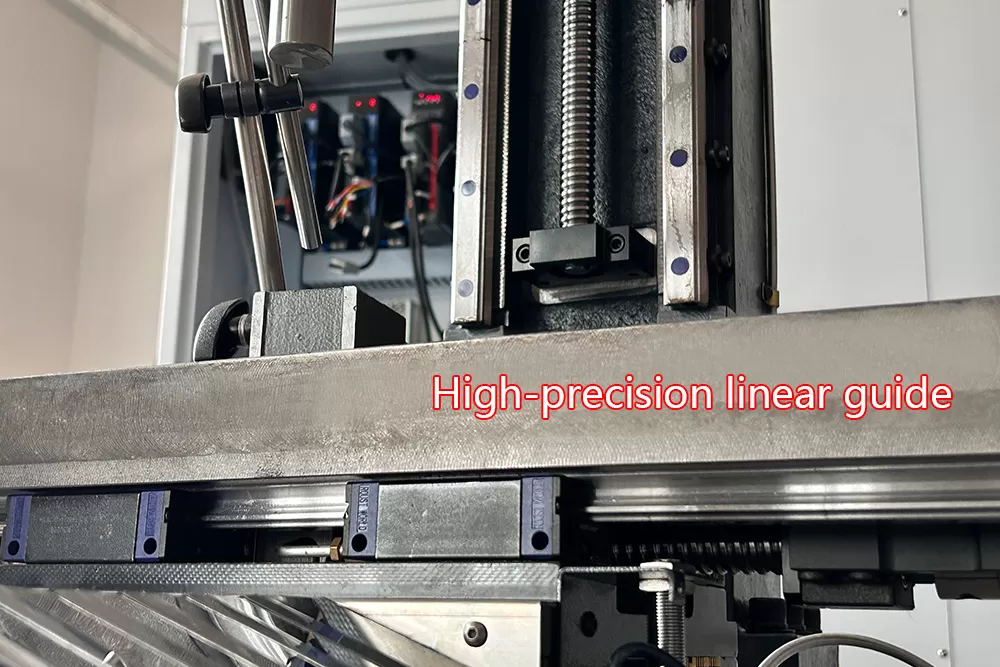

High-precision linear guides and carefully selected premium casting materials ensure a compact and robust structure.

Equipped with a high-accuracy double-nut ball screw, precision bearings, and couplings. An automatic oil lubrication system enhances accuracy and extends the machine’s lifespan.

Supports 220VAC or 110VAC single-phase AC power supply.

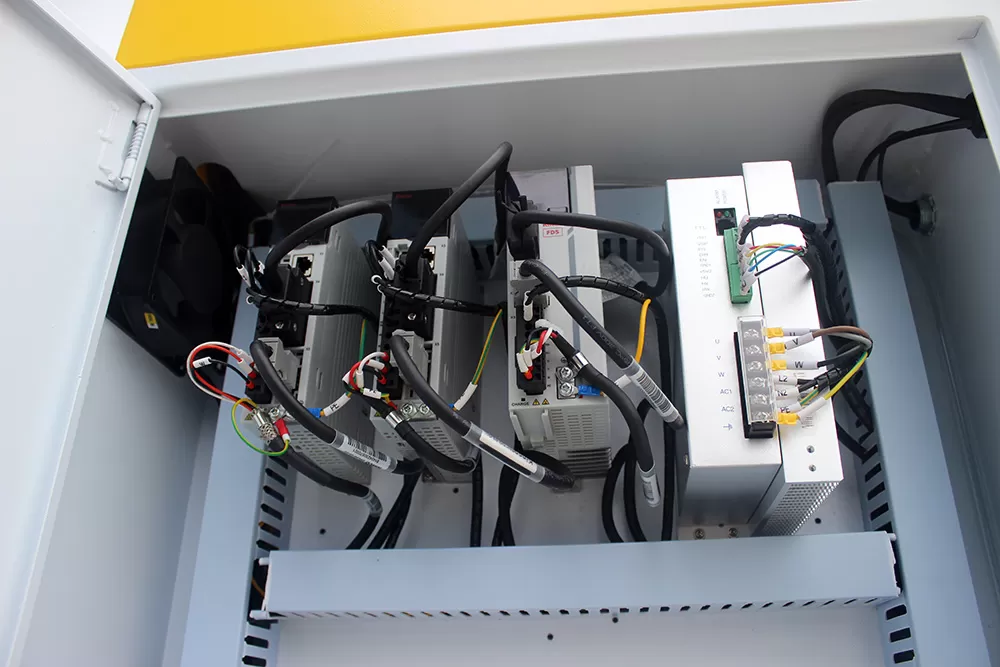

High-quality safety electrical components with fast plug-in connections.

Pre-installed fast interface for the fourth axis.

Integrated coolant sink and nozzles.

Ideal for industries such as technology development, advertising design, fine arts, vocational training, CNC education, and DIY projects.

4 Axis CNC Milling Machine – QualiMill-300A

4 Axis CNC Milling Machine – QualiMill-300A ensures precise and efficient operation. The standard specifications include an MPG handwheel for easy control, along with an integrated sink and nozzles for effective cooling. Featuring a high-precision linear guide and carefully selected high-quality casting materials, the machine offers a more compact and durable structure. An automatic lubrication system protects the rails, extending their lifespan. Equipped with a high-quality 3-axis servo motor, it also includes USB and RS232 ports for seamless connectivity. The pre-installed 4-axis fast interface enhances versatility, making it an excellent choice for DIY enthusiasts, hobby users, and CNC education and training.
