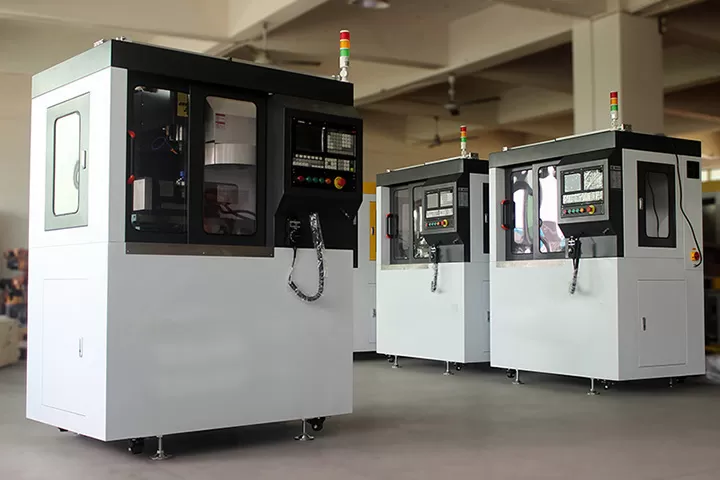

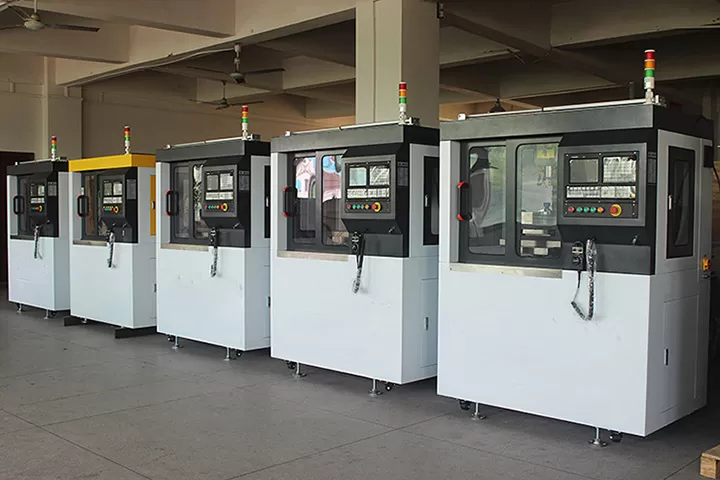

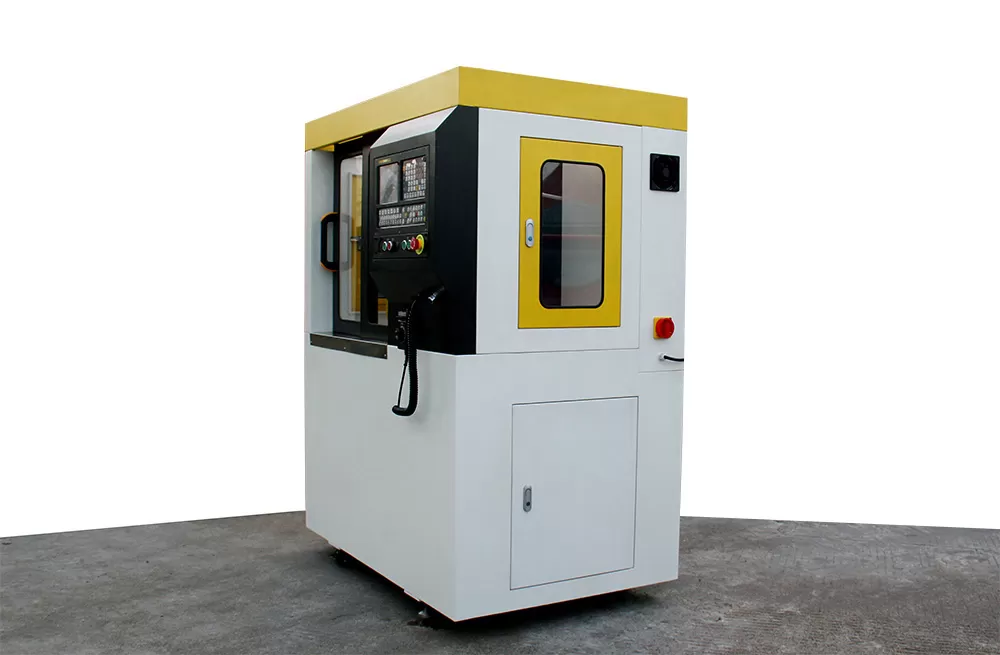

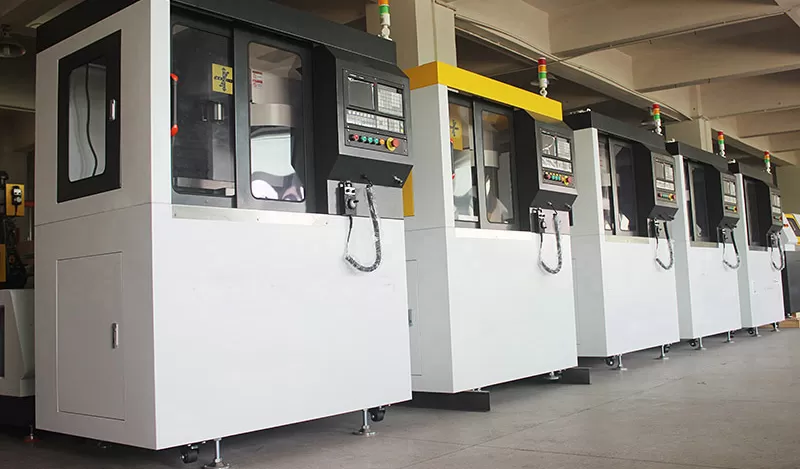

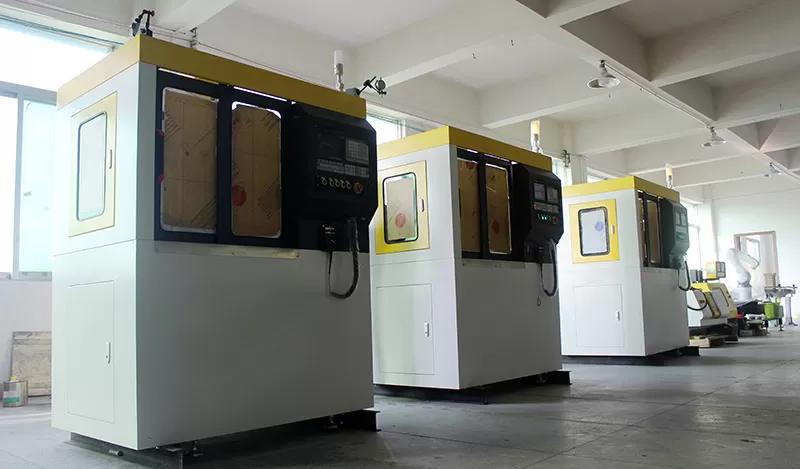

Name: 5 Axis CNC Machine – QualiCNC-300
SKU: 0WV3E7Y69D
Availability: InStock
Rating: 5 (1 reviews)

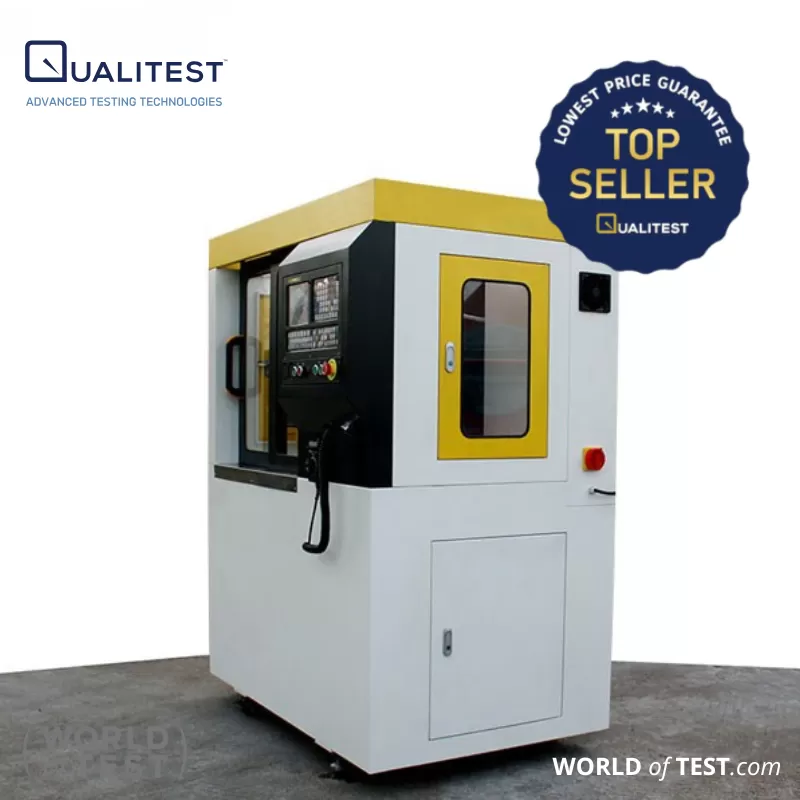

5 Axis CNC Machine – QualiCNC-300

Contact

Product code: 0WV3E7Y69D

5 Axis CNC Machine – QualiCNC-300 an advanced controller powered by an ARM high-performance CPU and ultra-large-scale…

5 Axis CNC Machine – QualiCNC-300 Technical Specifications

Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
X axis travel	310mm
Y axis travel	180mm
Z axis travel	290mm
Options 5th axis	Backlash	Zero Backlash
	Max Speed 4th axis	30/R.P.M
	Max Speed 5th axis	30/R.P.M
	Accuracy 4th axis	±1 arc-min
	Accuracy 5th axis	±1 arc-min
	Repeatability 4th axis	20 arc-sec
	Repeatability 5th axis	20 arc-sec
	Homing	A axis
	Limits	+C, -C

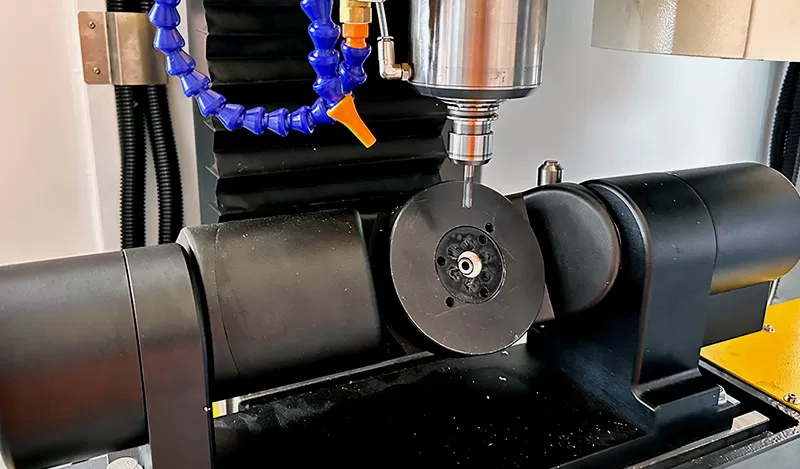

	4th axis Travel	A axis:+30° to -120°,
	5th axis Travel	C axis:±infinity
	C axis Output Flange Diameter	120mm
Spindle taper	ISO 20
Automatic tool change system(ATC)	10 Tools
Pneumatic supply	0.6 MPa
Tool DIA. range	1-13mm
Standard Size Collet	1-13mm
Control system	5 axis CNC center machine controller
MPG hand wheel	5 axis
Spindle Power	1.5kw
Spindle speed	100-24000rpm
Motor Type	XYZAC axis AC Servo
Rapid movement in X /Y/Z Axis	1-8000mm/min
Feed rate in X/Y/Z Axis	1-4000mm/min
Power of X/Y/Z Axis	AC Servo 750W
Power of A/C Axis	AC Servo 200W
Transmission	Ball screw
Guide rail	High-precision linear guide
Table size	550*180mm
Number of T-slots	3
Width of T-slot	12mm
Table structure	Full cast iron
Voltage	230VAC/110VAC
Weight(NW/GW)	650/700kg
Overall dimension	1360x990x1800mm
Packing size	1400x1050x2000mm

5 Axis CNC Machine – QualiCNC-300 Features

High-performance 5-axis CNC machining center with advanced controller.

Standard features include an electronic handwheel.

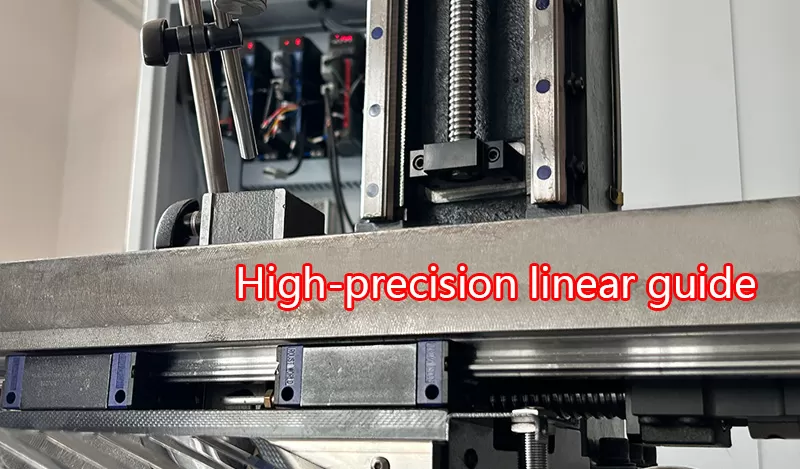

High-precision linear guide with premium cast materials for a more compact design.

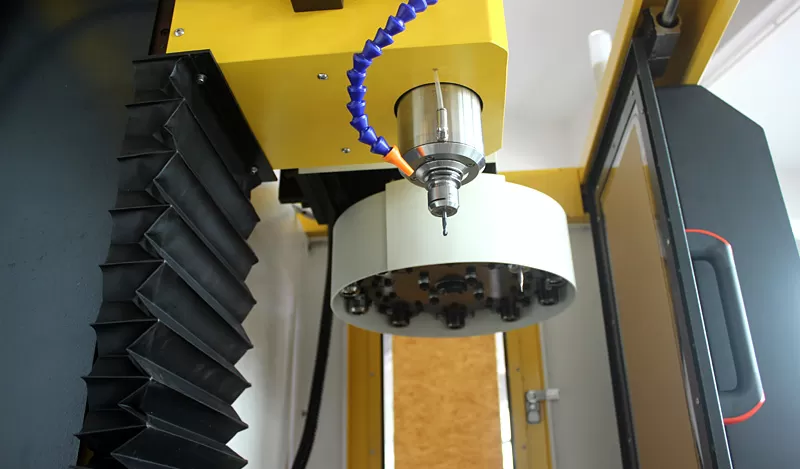

10-tool automatic tool changer (ATC), ISO20 spindle, 24,000 RPM spindle speed.

Multiple communication options (USB, U disk, RS232COM) for seamless data transfer and software upgrades.

Frequency-conversion water-cooled motor for low noise, high speed, and durability.

Intelligent self-diagnosis with real-time status monitoring and instant alerts for abnormalities.

Macro programming with variable definitions, supporting parameter-based macro programs for flexible operations.

Graphic simulation function for real-time visualization of tool paths, ensuring accuracy before execution.

Multi-interface support with multilingual display, automatic fault alerts, and real-time processing information.

Parameter table input for easy configuration—simply enter values in the setup table.

Ideal for industries including technology development, advertising design, art, vocational training, and CNC enthusiasts.

5 Axis CNC Machine – QualiCNC-300

5 Axis CNC Machine – QualiCNC-300 an advanced controller powered by an ARM high-performance CPU and ultra-large-scale programmable FPGA devices. With real-time multitask control and hardware interpolation technology, it achieves high-efficiency, micron-level precision processing. The standard specifications include an MPG handwheel and a 10-tool automatic tool changer (ATC). Its frequency-conversion water-cooled motor ensures low noise, high speed, and long-lasting durability. Designed with a high-precision linear guide and premium cast materials, it offers a more compact structure. This machine is an excellent choice for DIY enthusiasts, hobby users, and CNC education and training.
