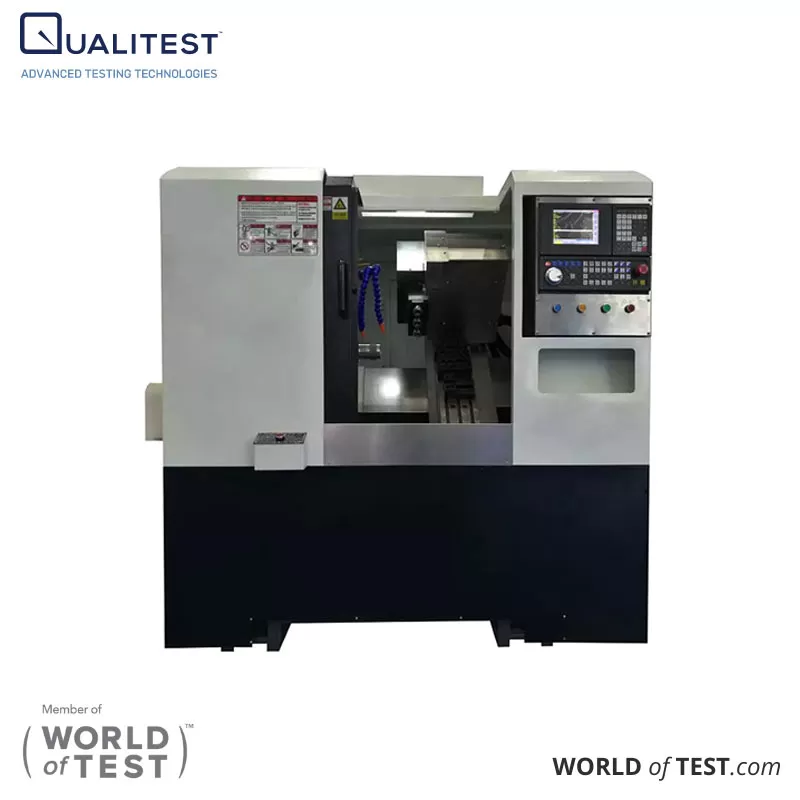

CNC Turn Mill Machine - QualMill-TM500

Contact

Product code: 3MIBLCTORP

CNC Turn Mill Machine - QualMill-TM500 is equipped with a sink and nozzles, along with a high-performance industrial-…

CNC Turn Mill Machine - QualMill-TM500 Technical Specifications

Max Spindle Speed	rpm	3500 (4000 max)
Finish after machining		1.6Ra
Spindle hole	mm	25
Repeat positioning accuracy	mm	±0.01
Unilateral cutting amount	mm	2mm (3mm max)
Spindle Power	kw	3.7Kw Servo motor
X/Z Axis Motor		1.2Kw Servo motor
Y Axis Motor		1.2Kw Servo motor
Power head		3 tools standard	4 tools optional
X Axis Travel	mm	500
Z Axis Travel	mm	180
Fast feed rate	m/min	20m/min (30m/min max)
Clamping Diameter	mm	Hydraumatic φ40mm(φ50 max)
Cutting Feed Rate	mm/rev	0.001-500
Cutting Length	mm	180
Cutting Length With Lathe Center Frame	mm	120
Machine Bed Inclination	°	30
Controller	KY	Industrial CNC Controller
Ball Screw		Taiwan P4
Linear Guide		Taiwan P4 Linear Guide rail
Weight	kg	1800-2200
Machine Size	Mm	1700x1200x1800
Packing Size	Mm	1950x1300x2050mm

Standard accessories: Hydraulic pressure clamping system, Hydraulic collet, working lamp, workpiece cooling system, auto lubricating system, Tool holders, Hexagon wrench set.

Optional accessories: Hydraulic Chuck, Cutting tool set, Drilling/Milling tool set.

CNC Turn Mill Machine - QualMill-TM500 Features

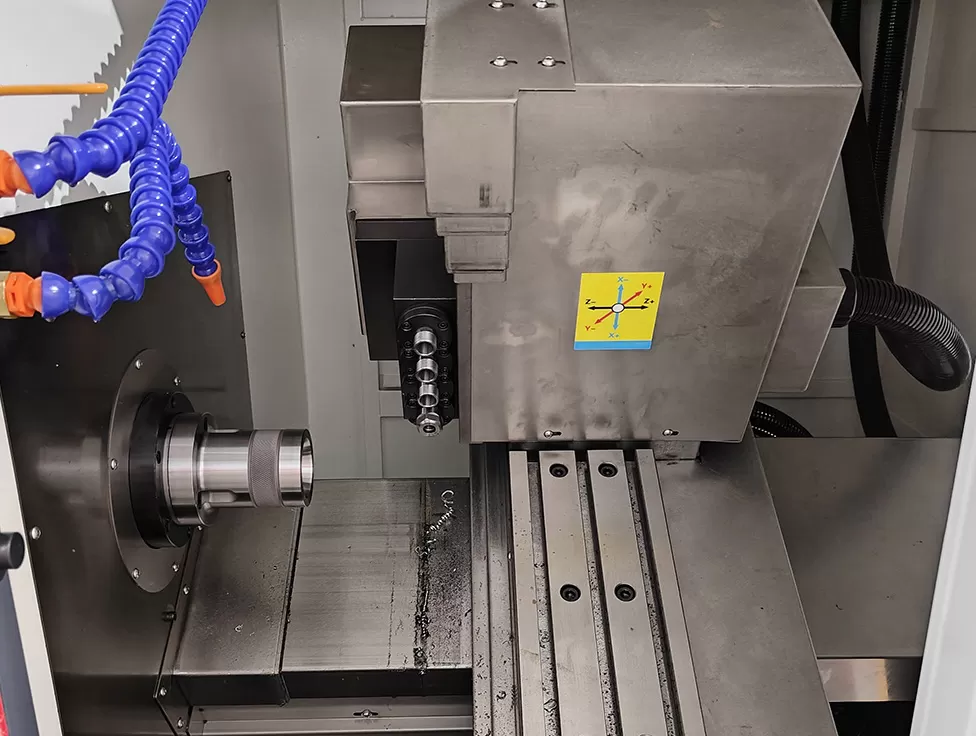

Equipped with a sink and nozzles.

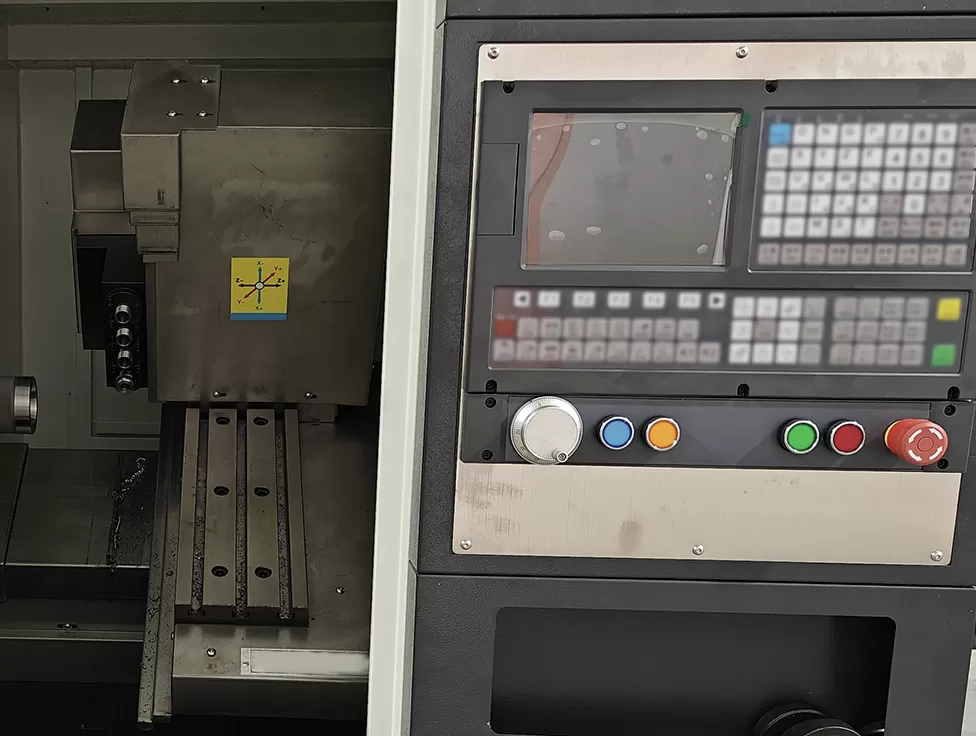

High-performance, industrial-grade CNC controller.

Designed and built entirely around CNC machine tools, ensuring structural integrity for future innovations.

Standard features include an MPG handwheel.

USB port for easy program input.

Speed control via G-code.

Crafted from high-quality cast materials for a more compact design.

Features precision ball screws, bearings, and couplings, along with an oil lubrication system to enhance accuracy and extend service life.

Operates on a 380V three-phase AC power supply.

Built with high-quality safety electrical components.

Ideal for mass production of bar materials, including copper, aluminum, steel, and stainless steel.

CNC Turn Mill Machine - QualMill-TM500

CNC Turn Mill Machine - QualMill-TM500 is equipped with a sink and nozzles, along with a high-performance industrial-grade CNC controller for precise operation. Built entirely around CNC machine tools, its design ensures structural integrity while supporting future innovations. Constructed from high-quality casting materials, the machine offers a more compact and durable build. It operates on a 380V three-phase AC power supply, making it suitable for demanding industrial applications. Ideal for mass production, it efficiently processes bar materials such as copper, aluminum, steel, and stainless steel.
