Desktop CNC Machine – QualiCNC-200

Contact

Product code: 82HLQYOIE7

Desktop CNC Machine – QualiCNC-200 is a compact 3-axis CNC machining center designed for precision milling, suitable…

Desktop CNC Machine – QualiCNC-200 Technical Specifications

X axis travel	230mm
Y axis travel	130mm
Z axis travel	220mm
Spindle taper	ISO20
Automatic tool change system(ATC)	5 Tools
Pneumatic supply	0.6 MPa
Tool DIA. range	1-13mm
Control system	KY1000MC CNC Controller
Spindle Power	1.5kw
Spindle speed	100-24000rpm
Motor Type	Step motor(Option AC servor motor)
Max. moving speed	2000mm/min
Max. feeding speed	1000mm/min
Positioning accuracy	0.02mm
Repeatability accuracy	0.01mm
Transmission	ball screw
guide rail	High-precision linear guide
Table size	460x130mm
Number of T-slots	3
Width of T-slot	12mm
Table structure	Full cast iron
Voltage	230VAC / 110VAC
Weight(NW/GW)	180/230kg

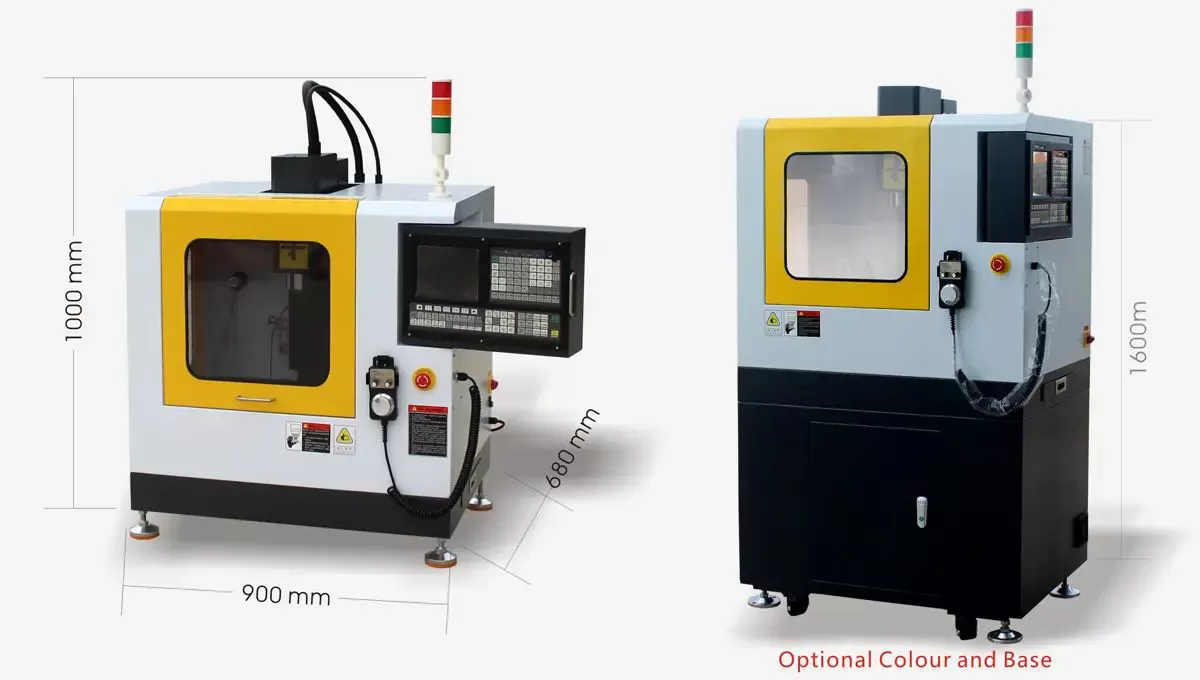

Overall dimension	900×680×1000mm
Packing size	960×750×1200mm

Desktop CNC Machine – QualiCNC-200

Desktop CNC Machine – QualiCNC-200 is a compact 3-axis CNC machining center designed for precision milling, suitable for bench or floor placement. It features a high-performance 3-axis CNC controller with a multilingual interface. Built with high-quality cast materials, it offers durability, high-accuracy linear guides, ball screws, and a semi-automatic lubrication system to extend rail life. The machine includes a 5-tool automatic tool changer (ATC) with an ISO20 spindle and a 24,000 RPM water-cooled spindle motor for smooth, low-noise operation. Standard XYZ stepper motors are included, with an optional AC servo motor upgrade. Additional customization options include a flood coolant system and an industrial cabinet base with an automatic alignment tool. Capable of cutting wax, plastic, acrylic, free-cutting alloys, aluminum, and steel, it supports software such as MasterCAM, UG, Fusion 360, and SolidWorks. Designed for technology development, advertising design, artistic applications, technical education, training, and DIY projects, the QualiCNC-200 delivers high accuracy, efficiency, and versatility for professionals and hobbyists alike.

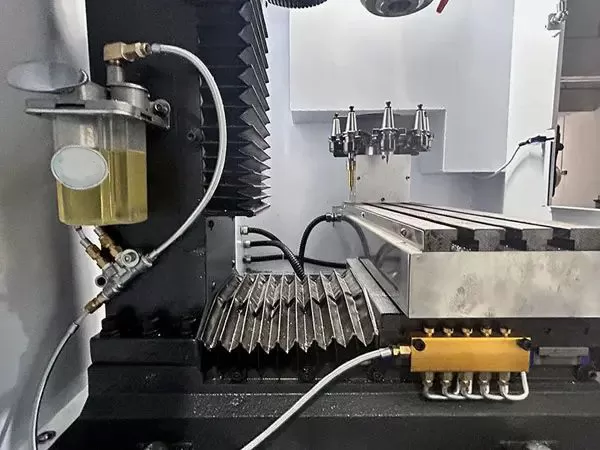

Machine tool body

The machine tool body is built with high-quality cast materials for exceptional rigidity, high-precision linear guides and ball screws for superior accuracy, and a multi-line semi-automatic lubrication system to enhance rail longevity. Experience the pinnacle of precision, reliability, and durability with our small CNC machine, designed for long-lasting performance and unmatched machining accuracy.

Powerful and Versatile Spindle

Our high-performance spindle provides outstanding power and adaptability, meeting diverse machining requirements. The variable-frequency drive ensures precise speed control, optimizing performance for different materials and applications. With both manual and automatic tool change options, the control system enhances workflow efficiency, enabling seamless operation and superior results.

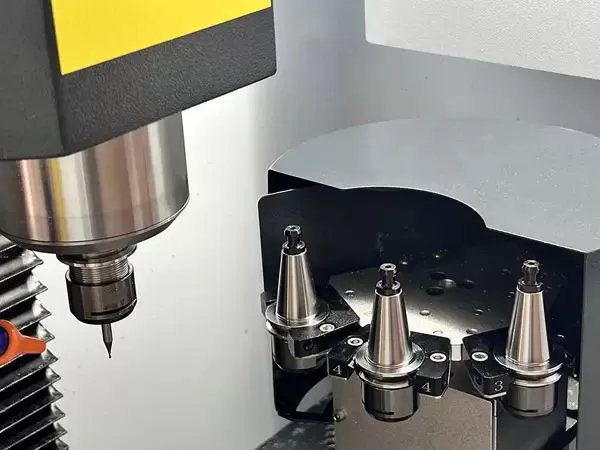

Enhanced Safety and Precision

The durable 5-station self-locking rotary tool carousel prevents misoperation, while the protective dust cover maintains machining precision. Designed for reliability, our water-cooled spindle, variable-frequency drive, and pneumatic tool change system ensure consistent performance and exceptional accuracy.

Precision Control at Your Fingertips

The 4-axis, 3-level adjustable pulse electronic handwheel offers exceptional precision, enabling effortless fine adjustments. Designed for accuracy and ease of use, our intuitive control system ensures smooth operation and superior machining control.

Unmatched Precision and Preview Capabilities

Our 8.4-inch color LCD screen offers a clear, user-friendly interface, while the integrated handwheel trial cutting function lets you verify program accuracy and positioning before final machining. Designed for adaptability, our control system supports future feature upgrades, keeping you ahead of the curve.

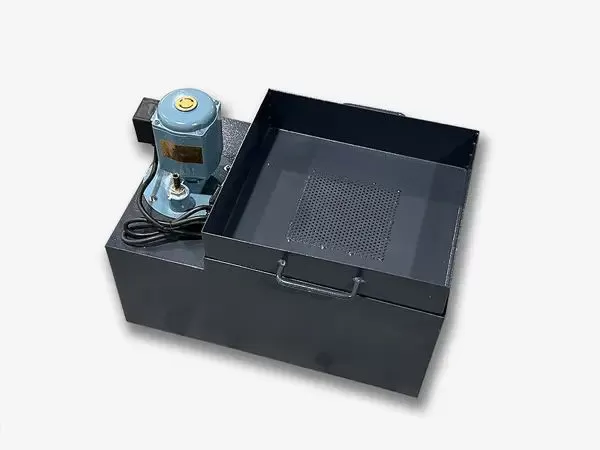

Efficient Cooling and Filtration

Our high-capacity circulation cooling water tank, featuring an advanced filtration system, efficiently dissipates heat and removes impurities to maintain optimal performance and extend the lifespan of your tools and spindle. With both manual and automatic control options, the system adapts seamlessly to your specific needs.

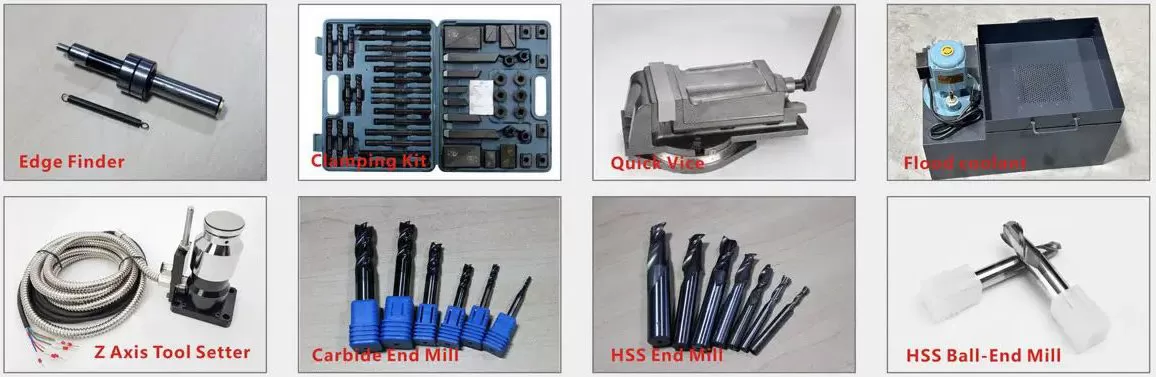

Optional Accessories
