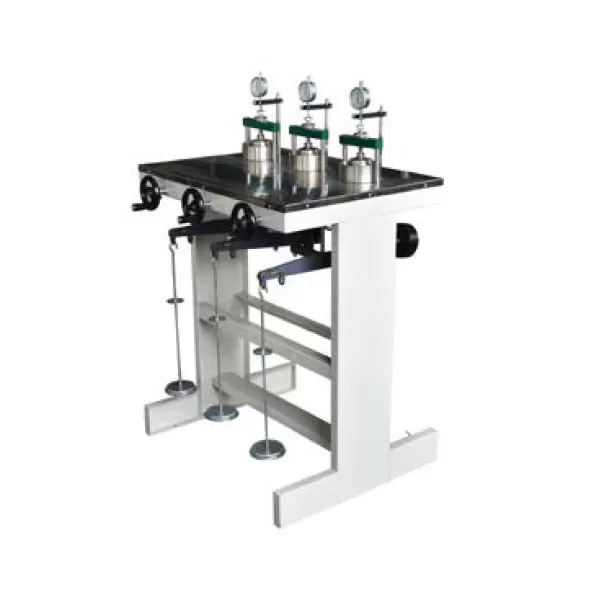

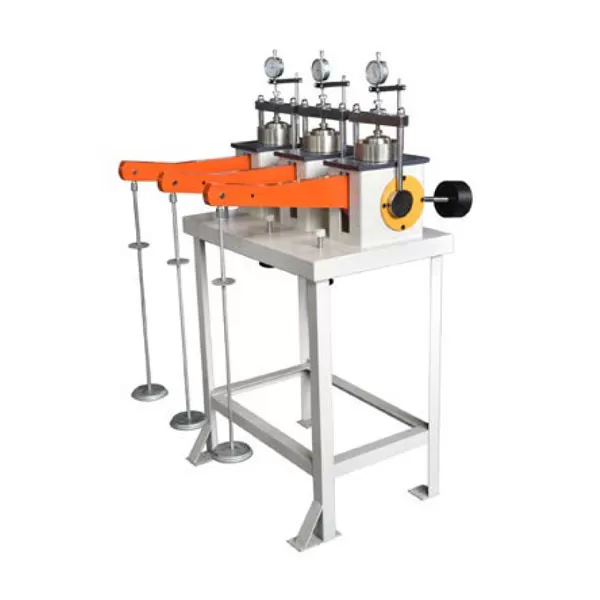

Triplex Consolidation Apparatus Technical Specifications
| QualiTCA-1 | |
|---|---|
| Frame | Steel structure |
| Sample area | 30 cm² or 50 cm² |
| Sample's quantity | Three |
| Lever ratio | 12:1; 10:1 |
| Consolidation container | One beam, two beams, three beams |
| Pressure range | 12.5 kpa/30 cm² to 800 kpa/30 cm², 12.5 kpa/50 cm² to 400 kpa/50 cm² |
| Grade | 8, 7 grade |
| QualiTCA-2 | |
| Sample area | 30 cm² or 50 cm² |
| Lever ratio | 12:1; 10:1 |
| Sample's quantity | Three |
| Pressure range | 12.5~1600 kpa, 12.5~800 kpa |
| Grade | 9, 8 grade |
| QualiTCA-3 | |
| Sample area | 30 cm² or 50 cm² |
| Lever ratio | 24:1; 20:1 |
| Sample's quantity | Three |
| Pressure range | 12.5~4000 kpa, 12.5~2000 kpa |
| Grade | 10, 9 grade |
