Oedometer – Front Loading

Contact

Product code: WDOSAJ6PRZ

Category: Soil Testing

Oedometer – Front Loading is designed for soil compression testing and analyzing the relationship between deformation…

Oedometer – Front Loading Technical Specifications

Front Loading Oedometer
ASTM D2435, D3877, D4546 and BS1377
3 lever arm ratio: 9:1, 10:1 and 11:1 with maximum stress up to 8.8MPa
Oedometer Bench
For the above oedometer
Accepts at least 3 oedometers
Locking nuts to fix oedometers
Standard Consolidation Cells
Standard consolidation cells with upper and lower, porous discs with cutting rings (different sizes), Material: tin bronze Dia.50mm
Slotted Steel Weight Set
2x0.25 kg, 1x0.5 kg, 2x1 kg, 1x2 kg, 1x5 kg, 4x10 kg
Digital Micrometer
12.7 * 0.001 mm

Oedometer – Front Loading

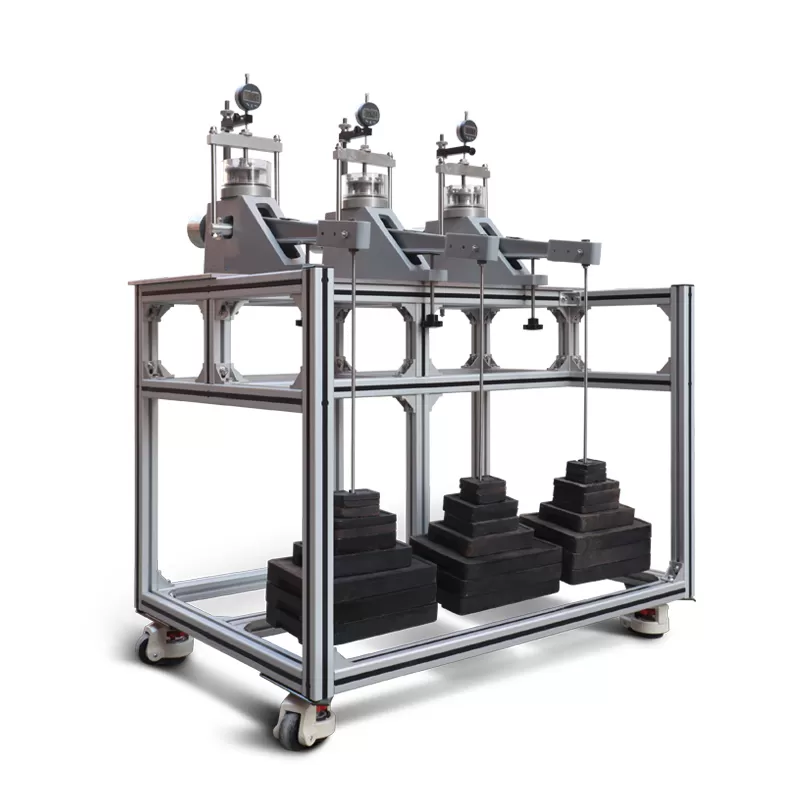

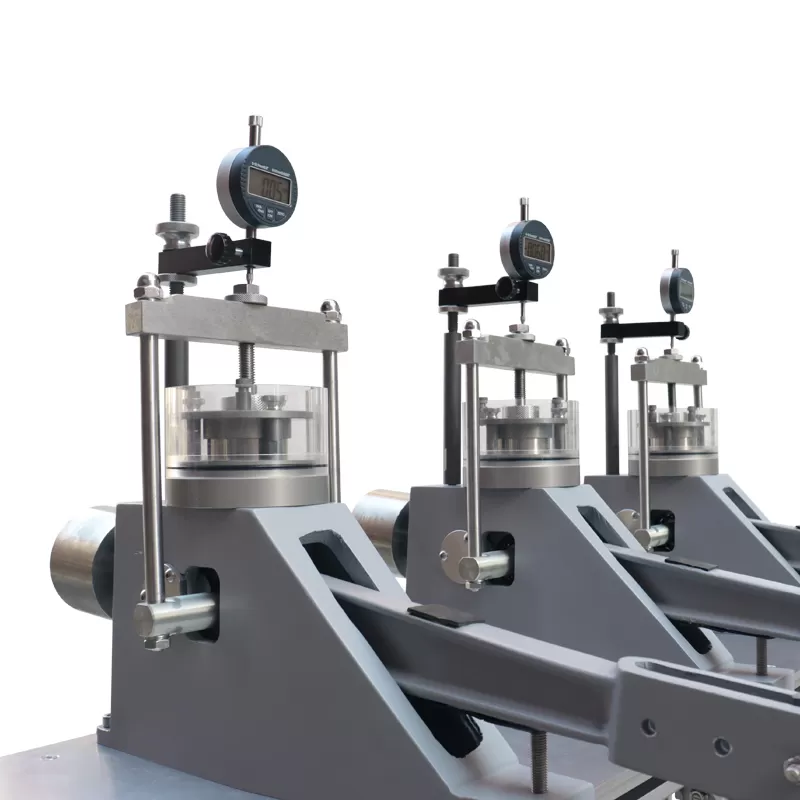

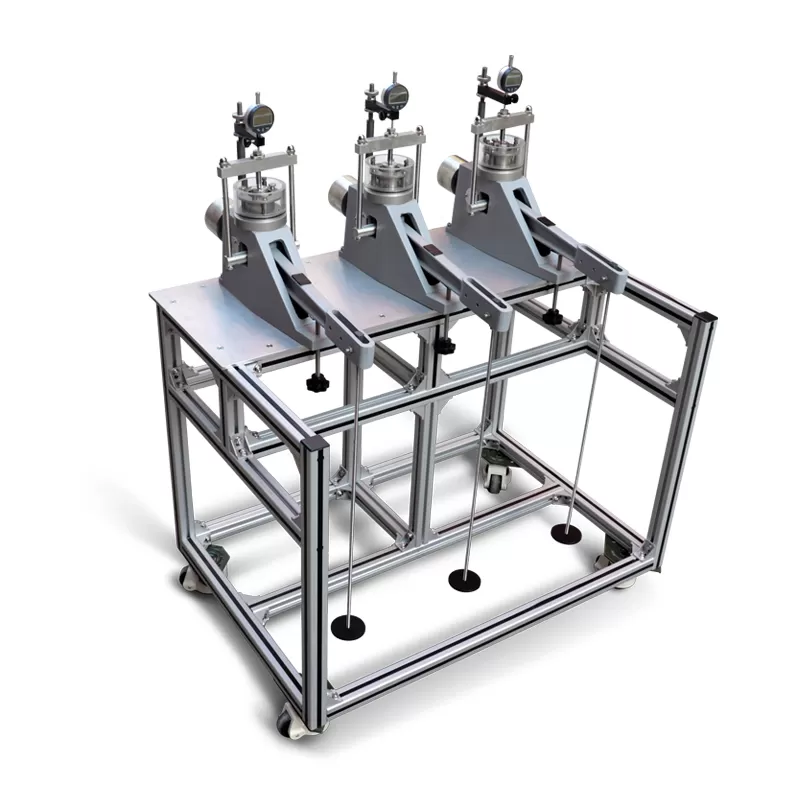

Oedometer – Front Loading is designed for soil compression testing and analyzing the relationship between deformation and compression. It helps calculate the unit sediment compression index, resilient index, and soil consolidation coefficient. Built with a rigid frame to minimize distortion, it features a lever arm assembly for loading specimens with three adjustable beam ratios: 9:1, 10:1, and 11:1. The beam includes a counterbalance weight and support jack for precise operation.
