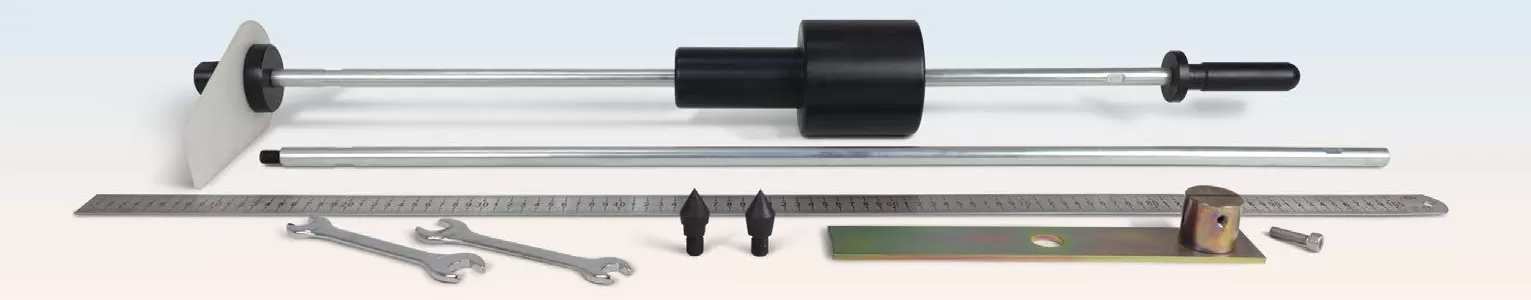

Dynamic Cone Penetrometer – QualiDCP-C is a tool designed for fast, on-site evaluation of the structural condition of road pavements built with unbound materials. It delivers continuous readings to a depth of approximately 850 mm, or up to 2 meters with extension shafts.
This device helps identify layer boundaries when pavement strength varies, allowing for accurate layer thickness assessment.
Previous research has shown a strong correlation between DCP results and California Bearing Ratio (CBR) values. This allows test results to be interpreted in line with CBR-based pavement design standards.
Each test takes just a few minutes, offering a highly efficient alternative to more invasive methods like digging test pits.
Includes | |
|---|---|
| QualiDCP-C1 | Sliding hammer (steel made), weighing 8kg |
| QualiDCP-C2 | Impact anvil driving rod and clip, falling 575mm |
| QualiDCP-C3 | Steel rod, diameter 16 mm, up to a depth of 800 mm below the surface |
| QualiDCP-C4 | N° 3 threaded end cones in tempered steel, 20 mm diameter, 60° cone angle |
| QualiDCP-C5 | Bearing plate and measuring rod with adjustable scale (graduated in mm) |
| QualiDCP-C6 | Aluminum alloy carrying case |
| Dimensions | 1080 × 310 × 150mm |
| Total Weight | 22kg |
Accessories and spare parts (need to be ordered seperately) | |
| QualiDCP-C7 | Extension rods: 400 mm, dia. 16mm |
