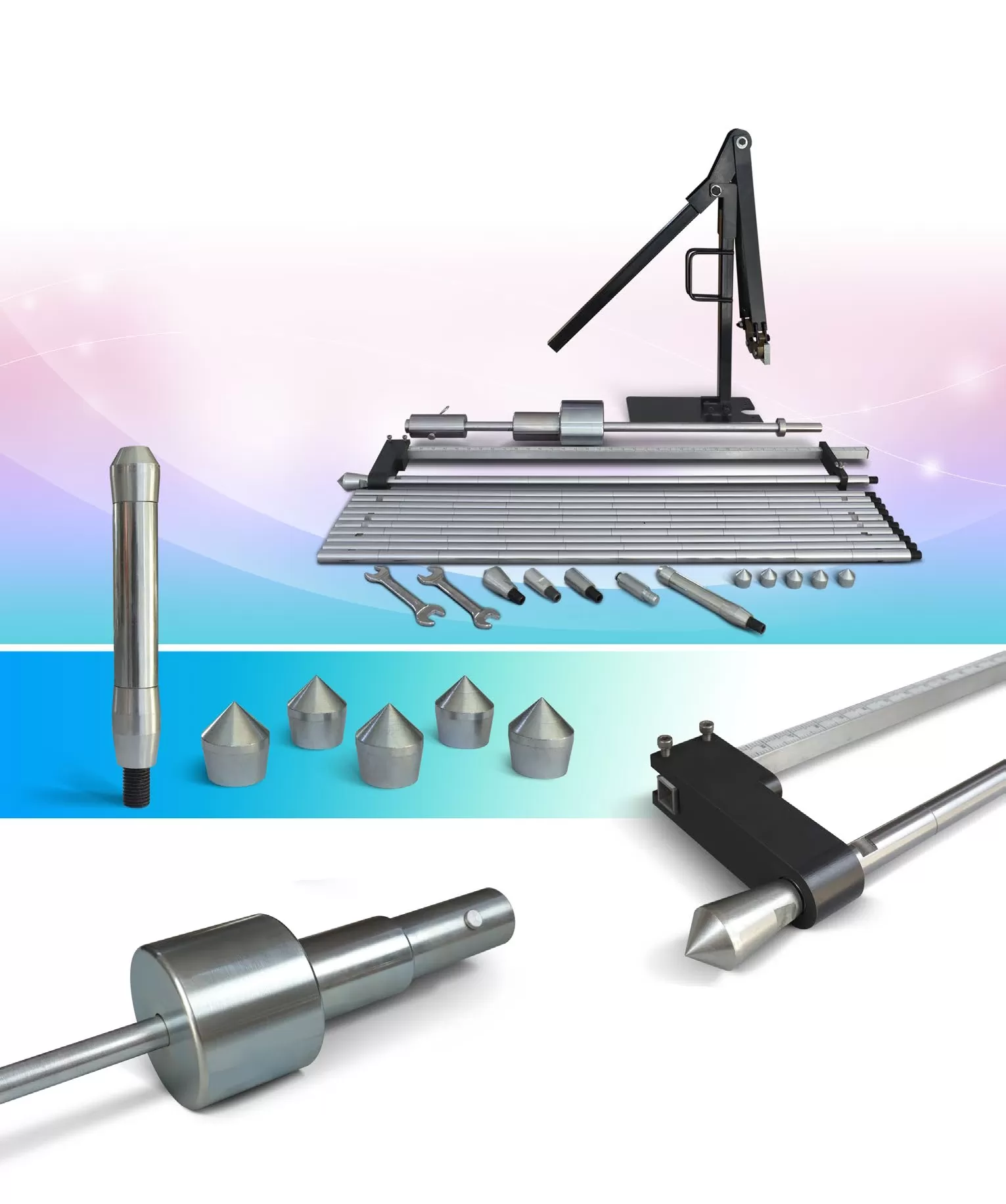

A portable, hand-operated Manual Dynamic Penetrometer – QualiDCP-B designed for quick, on-site assessment of the strength characteristics of road pavement layers.
The Dynamic Cone Penetrometer (DCP) provides direct measurements that have been correlated with California Bearing Ratio (CBR) values (Kleyn, 1975).
Field calibration of the portable DCP helps establish a relationship between penetration resistance and standard penetration test results.
This tool is especially useful for evaluating footing foundations and conducting light field investigations where standard resistance ranges are already established.
Backed by a one-year warranty covering manufacturing defects.
Includes | |
|---|---|
| QualiDCP-B1 | Hammer, 10 kg |
| QualiDCP-B2 | Anvil with rod and full travel impact plug, 6 kg |
| QualiDCP-B3 | 11 threaded sounding rods dia. 22 mm × 1000 mm long |
| QualiDCP-B4 | Drive conical point, 500 mm² area, 25.2 mm dia, 90° angle |
| QualiDCP-B5 | Drive conical point, 1000 mm² area, 35.6 mm dia, 90° angle |
| QualiDCP-B6 | Base plate with seating for scale |
| QualiDCP-B7 | Rule graduated in mm, 1 m long |
| QualiDCP-B8 | Lever device for rod extraction |
| QualiDCP-B9 | Steel carrying case |
Accessories and Spare Parts (need to be ordered seperately) | |
| QualiDCP-C7 | Extension rods: 400 mm, dia. 16mm |
| QualiDCP-B10 | Spare expendable conical point, 1000 mm² area, 35.6 mm dia, 90° angle |
