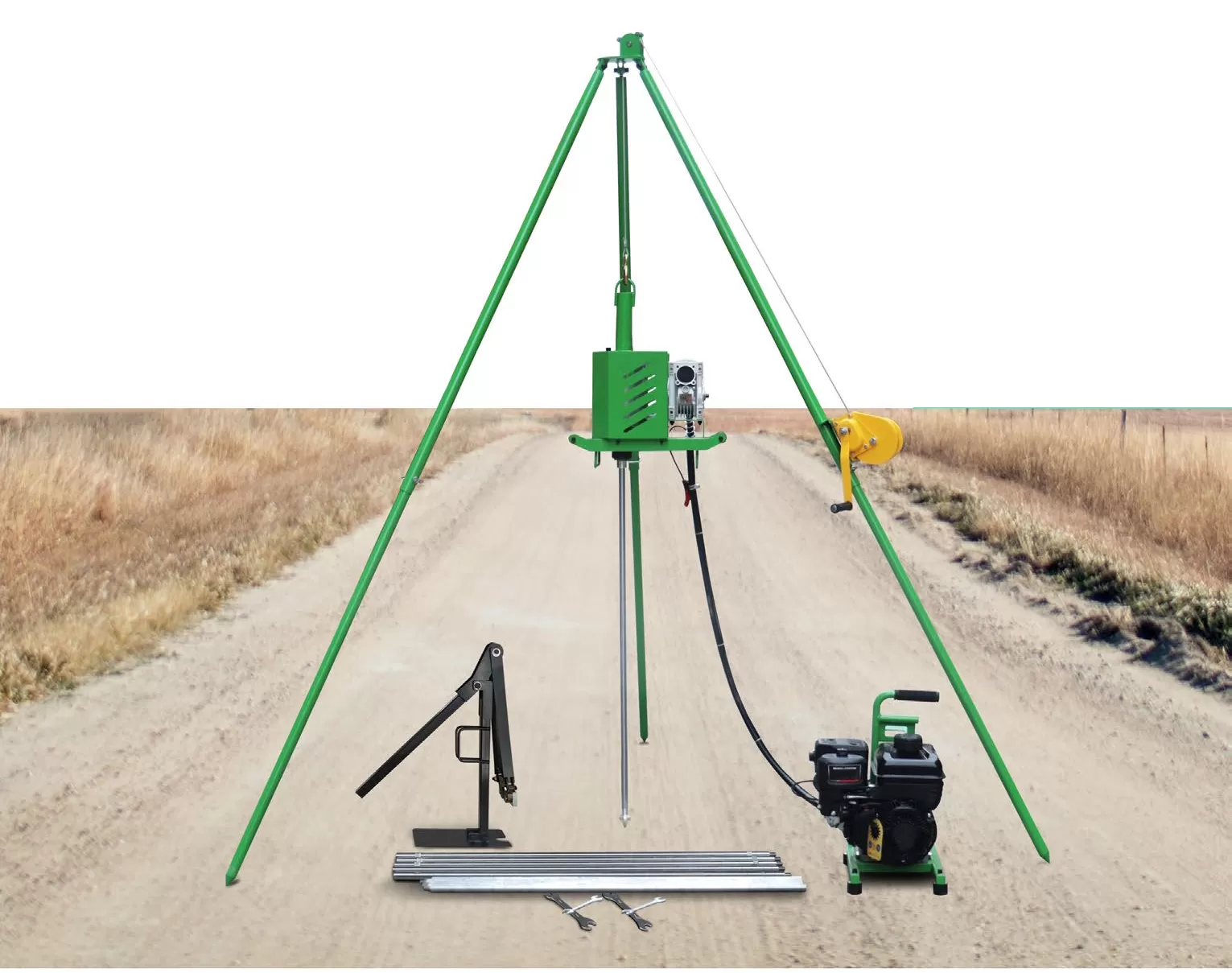

Motor-Driven Dynamic Penetrometer – QualiDCP-D features a 4-stroke engine that powers the lifting system via a flexible shaft. The system includes a 20 kg weight, an additional 10 kg weight, 10 rods, a 10 cm² cone, and a rod lifting device.
Drop height: 20 cm
Optional accessory: QualiDCP-D7 tripod for easier operation.
Includes | |
|---|---|
| QualiDCP-D1 | Hammer, 20 kg |
| QualiDCP-D2 | 10 kg supplementary weight |
| QualiDCP-D3 | Drive conical point, 10 cm² area, 35.6 mm diameter, 60° angle |
| QualiDCP-D4 | Sounding rod, 20 mm diameter |
| QualiDCP-D5 | 4-stroke engine |
| QualiDCP-D6 | Lever device for rod extraction |
| QualiDCP-D7 | Tripod for lifting mechanism (includes QualiDCP-D8, D9, and D10). Max height: 2300 mm; Weight: 18 kg |
| QualiDCP-D8 | Hand winch |
| QualiDCP-D9 | Hook |
| QualiDCP-D10 | Height adjustment lever |
| Total weight (without sounding rods and accessories): 70 kg | |
