Introducing the DT Series dual-blade strip sample cutters, meticulously designed for laboratory and plant floor use. Each model features high-quality hardened ground steel blades and a heavy-duty base, ensuring durability and precision cutting of plastic film, sheets, paper, and more.
Compliant with ASTM standards, they enable adherence to specifications outlined in ASTM D 882 Standard Test Method for Tensile Testing of Plastic Film. With various configurations available, these cutters offer versatility to meet exacting cutting requirements.
Additionally, optional safety shields are provided to protect operators from blade edges, and an optional base enhances portability. Simplifying sample insertion and removal, optional cutting platforms facilitate easy loading and cutting of materials into precise parallel samples. These strip sample cutters are essential tools for maximizing accuracy and efficiency in various testing applications.
The DT-1010, DT-1012, and DT-1014 models significantly boost productivity by replacing manual trimming with the capability to accurately cut multiple strip samples of sheet materials in a single pass. With each stroke, they achieve precise parallel edges, ensuring consistent test samples.
These labor-saving machines maximize the accuracy and utility of various test instruments by providing reliable and uniform samples.

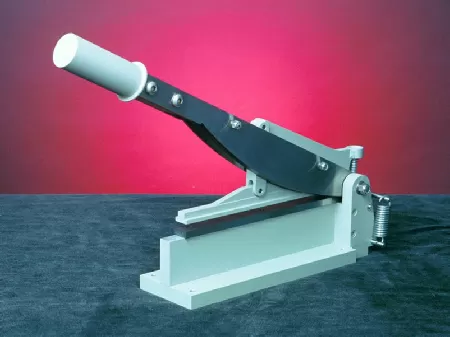

The DT-1010 is a dual-blade laboratory strip sample cutter for the preparation of strip samples up to 10.2-inch length. Cuts precise, parallel-edged, clean strip samples with ease.
Available in 1-inch and 25-mm Widths, plus the following Custom Widths:
The design consists of precision-ground, dual-cutting blades that cut precise, parallel, clean strips of test material using a shearing-cut action. Strip samples are trimmed to length after shearing on the DT-1010.

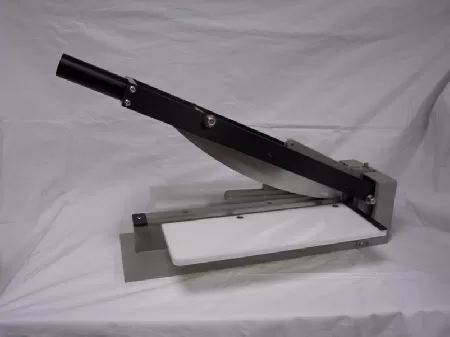

The DT-1012 is a dual-blade laboratory strip sample cutter for the preparation of strip samples up to 12.2-inch length. Cuts precise, parallel-edged, clean strip samples with ease.
The cutter is shown with optional Cutting Platforms, Safety Shields, and a Base.
Available in 1-inch and 25-mm Widths.
The design consists of precision-ground, dual-cutting blades that cut precise, parallel, clean strips of test material using a shearing-cut action. Strip samples are trimmed to length after shearing on the DT-1012.

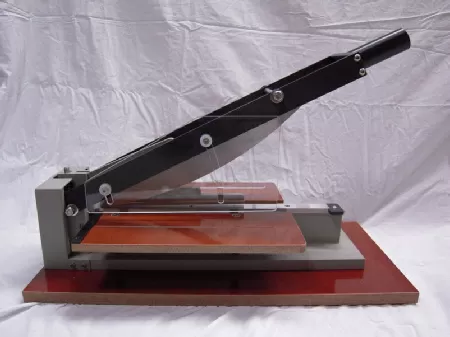

The DT-1014 is a dual-blade laboratory strip sample cutter for the preparation of strip samples up to the 14.2-inch length. Cuts precise, parallel-edged, clean strip samples with ease.
The cutter is shown with optional Cutting Platforms.
Available in 1-inch and 25-mm Widths.
The design consists of precision-ground, dual-cutting blades that cut precise, parallel, clean strips of test material using a shearing-cut action. Strip samples are trimmed to length after shearing on the DT-1014.
