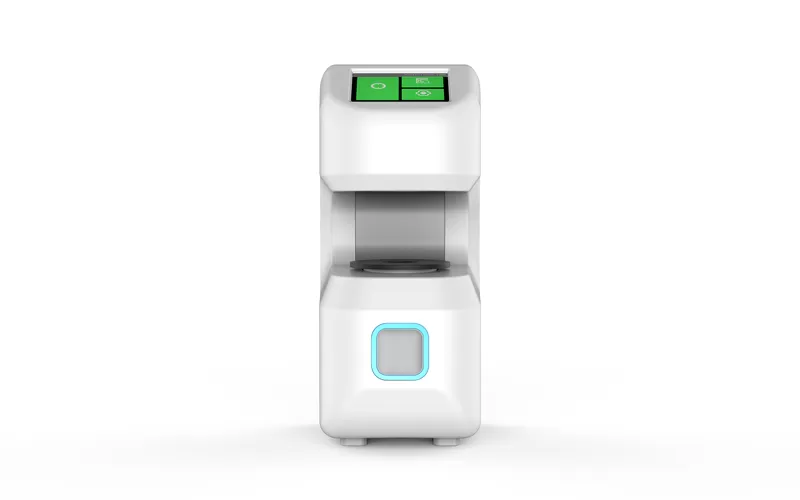

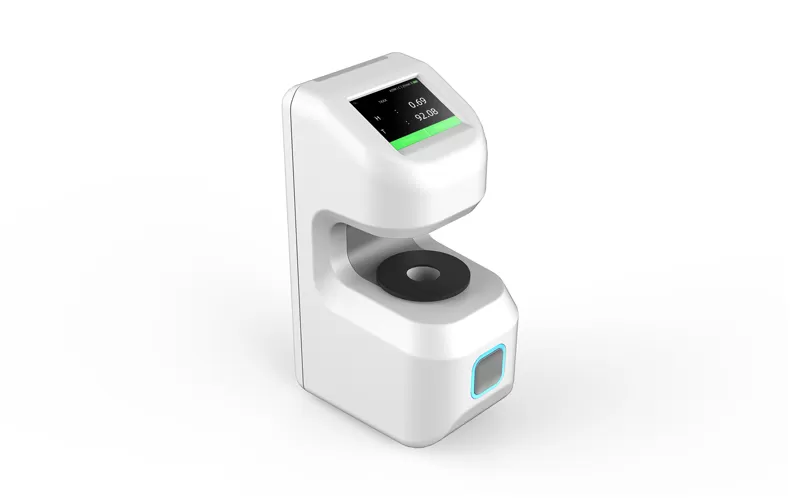

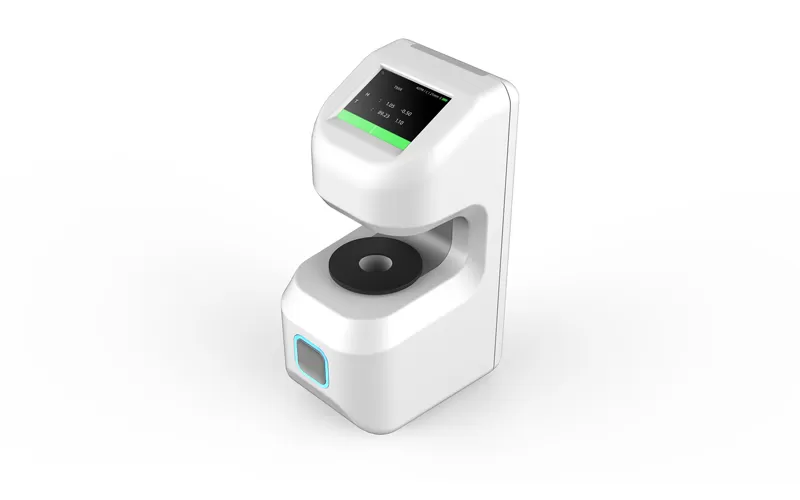

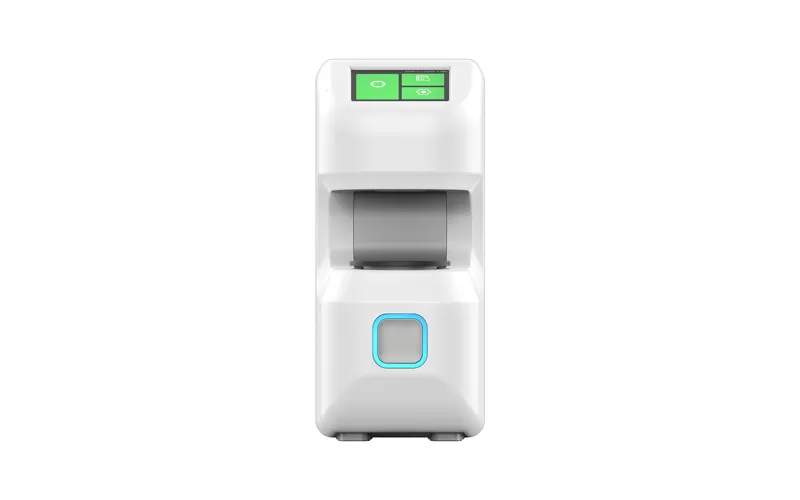

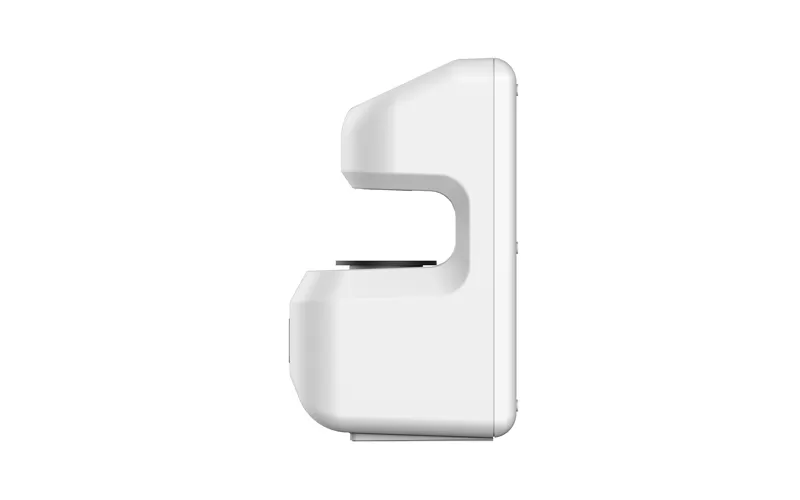

Portable Haze Meter QualiHaze QH-Series Main Parameter Comparison Sheet

Model	QH-10	QH-12★	QH-13
ASTM Haze/Transmittance
ISO Haze/Transmittance	✘
Test Apertures	21mm	21mm, 15mm	21mm, 15mm, 12mm
Resolution	0.1%	0.01%	0.01%
Repeatability	0.1	0.05	0.02
Lithium Battery	✘
Weight	1.13kg	1.25kg	1.25kg

Technical Data

Model	QH-10	QH-12	QH-13
Light Source	CIE-A, CIE-C, CIE-D65	CIE-A, CIE-C, CIE-D65	CIE-A, CIE-C, CIE-D65
Standards	ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136, GB/T 2410-08	ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136, GB/T 2410-08	ASTM D1003/D1044, ISO 13468/ISO14782, JIS K 7105/JIS K 7361/JIS K 7136, GB/T 2410-08
Parameter	ASTM Haze/Transmittance	ASTM & ISO Haze/Transmittance	ASTM & ISO Haze/Transmittance
Spectral Response	CIE Spectrum Function Y/V(λ)	CIE Spectrum Function Y/V(λ)	CIE Spectrum Function Y/V(λ)
Geometry	0/d	0/d	0/d
Test Aperture	21mm	21mm, 15mm	21mm, 15mm, 12mm
Test Range	0-100%	0-100%	0-100%
Resolution	0.1%	0.01%	0.01%
Repeatability	0.1	0.05	0.02
Sample Size	Thickness ≤40mm	Thickness ≤40mm	Thickness ≤40mm
Display	2.8 inches touchscreen	2.8 inches touchscreen	2.8 inches touchscreen
Data Storage	Mass Storage	Mass Storage	Mass Storage
Interface	USB	USB	USB
Power	DC 5V/2A	Rechargeable Lithium Battery	Rechargeable Lithium Battery
Working Temperature	5~40°C, Relative humidity 80% or below (at 35°C), no condensation	5~40°C, Relative humidity 80% or below (at 35°C), no condensation	5~40°C, Relative humidity 80% or below (at 35°C), no condensation
Storage Temperature	-20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation	-20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation	-20°C ~ 45°C, Relative humidity 80% or below (at 35°C), no condensation
Size	133mm x 99mm x 224mm (L x W x H)	133mm x 99mm x 224mm (L x W x H)	133mm x 99mm x 224mm (L x W x H)
Weight	1.13kg	1.25kg	1.25kg
Optional	Test Aperture with custom-made size	Test Aperture with custom-made size	Test Aperture with custom-made size

Optional Accessories

Haze meter cloth bag.

Portable Haze Meter QualiHaze QH-Series Features

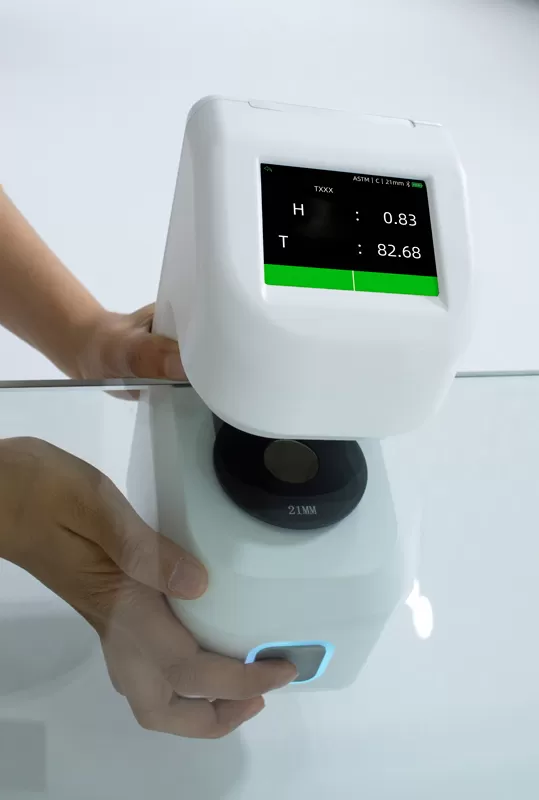

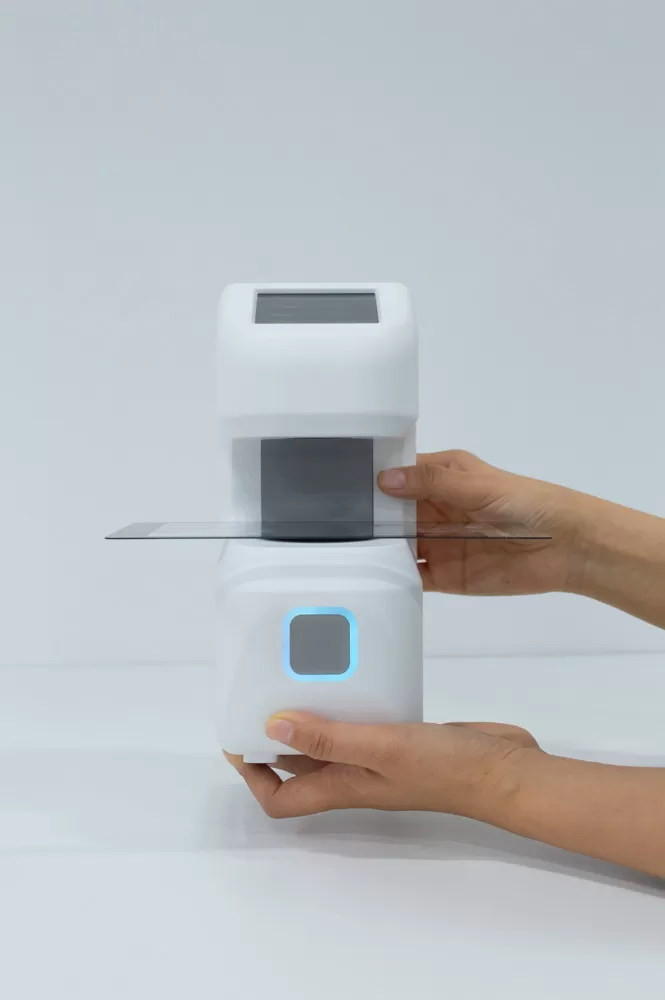

Portable Size: The QualiHaze QH-Series Haze Meter is compact and easy to carry, making it convenient for testing haze and transmittance.
High Accuracy: It has a display resolution of 0.01 with excellent repeatability of ≤0.02.
Reliable Repeatability:
- Performs regular self-checks while in standby mode.

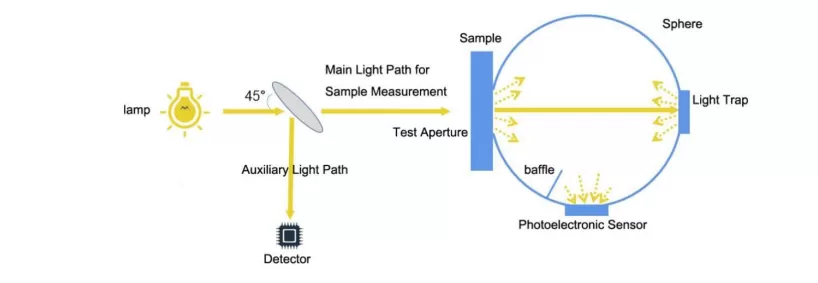

- Features a dual optical paths design.
Versatile Testing: The QualiHaze QH-13 model supports three test apertures (21mm, 15mm, 12mm) for various sample sizes.
Standard Compliance: Conforms to ASTM D1003/1044, ISO 13468/14782, JIS K 7105, JIS K 7361, JIS K 7136, and GB/T 2410 standards.
Multiple Light Sources: Equipped with three types of light sources to measure haze and transmittance according to different standards.

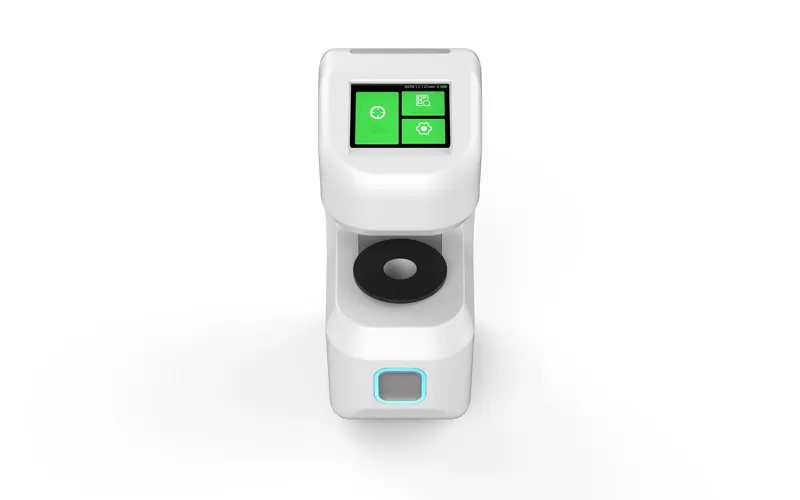

User-Friendly Interface: Features a 2.8-inch touchscreen for easy operation.

Models: QH-10, QH-12, QH-13

Standard Configuration:

Instrument
USB/Recharging Cable
U Disk (QC software, manual)
Qualified Certificate
Warranty Card
Calibration Certificate

Model-Specific Items:

QH-10: 1 test aperture
QH-12: 2 test apertures, Charging Head
QH-13: 3 test apertures, Charging Head, Black Carrying Case

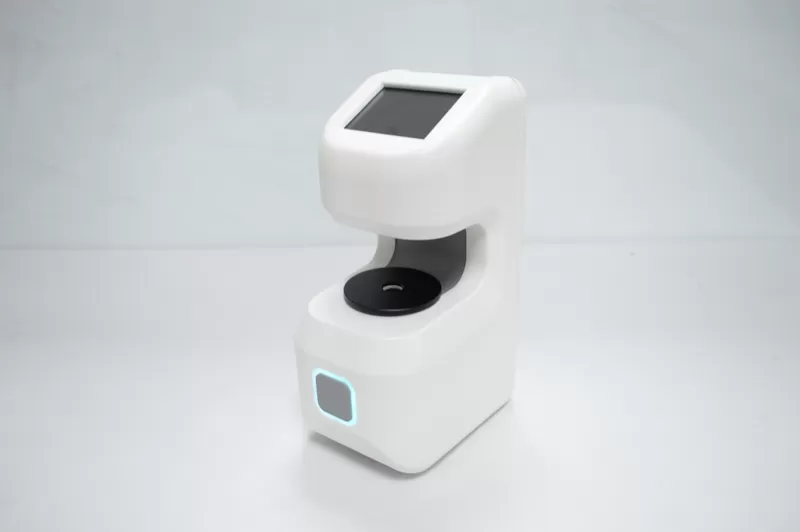

Portable Haze Meter QualiHaze QH-Series

QualiHaze QH-Series Portable Haze Meters are designed for convenience and precision in testing haze and transmittance. Compact and easy to carry, these meters feature a high accuracy display, reliable repeatability with dual optical paths, and versatile testing options with multiple apertures.

They comply with ASTM, ISO, JIS, and GB/T standards and include multiple light sources for various measurement needs. The user-friendly 2.8-inch touchscreen ensures easy operation. Choose QualiHaze for your haze measurement needs.
