Name: Ink Rub Tester
SKU: 5CI3V6RYT0
Availability: InStock
Rating: 5 (1 reviews)

Dohaps@gmail.com

0912912096

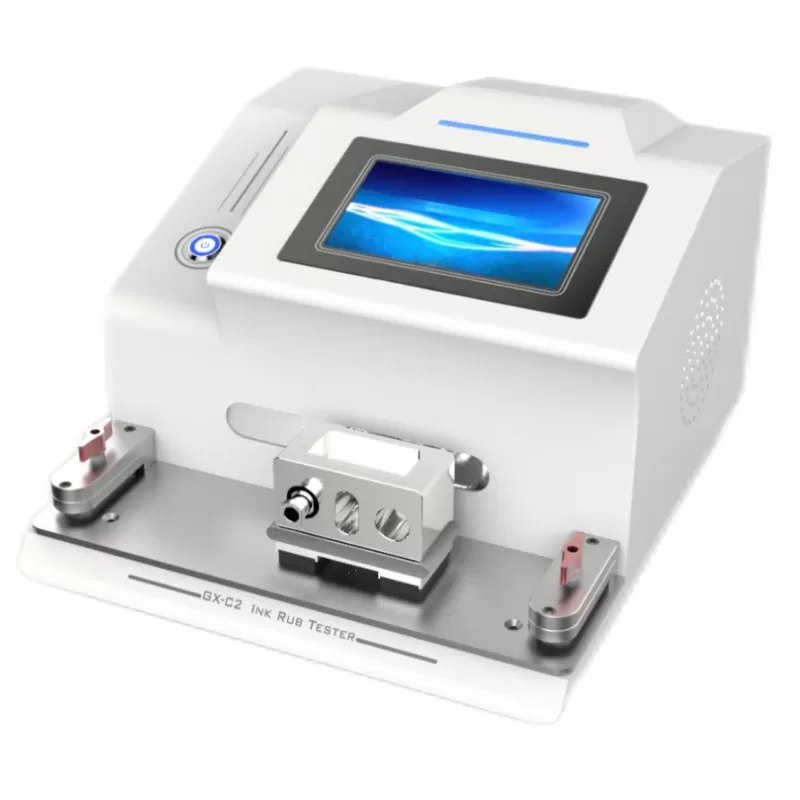

Ink Rub Tester

Contact

Product code: 5CI3V6RYT0

Category: Flexible Packaging & Film Testing , Color, Paint & Coating Testing

Qualitest covers a complete and competitive range of Rub Testers which is applicable in abrasion resistance test of…

The Ink Rub Tester QT-IRT-C2 is a cutting-edge instrument designed for precise measurement of abrasion resistance in printing ink layers, PS plate photosensitive layers, and coatings. Featuring advanced technology and a user-friendly design with a color touch screen, it ensures accurate testing and reliable results.

Fully automatic operation and adjustable speed cater to various requirements, while its compatibility with PS version photosensitive layer testing enhances durability analysis. With high test accuracy and integrated printing capabilities, it's the ultimate solution for assessing wear resistance and ink adhesion.

Ink Rub Tester Technical Specifications:

Item	Parameters
Friction Pressure	20±0.2N
Friction Speed	43 cpm ( Times/ Min)
Friction Area	240(L) x 50(W) mm
Number of Rubs	1~999999 times
Sample Size	320 (L) × 50 (W) mm (short specimens can be spliced)
Device Size L x W x H	440 mm×400 mm×200 mm
Power	350W
Power Supply	AC 220V，50 Hz (110V also available)
Weight	20 kg

Ink Rub Tester Features:

Incorporates advanced configuration and technology.
Comes up with a simple yet refined design concept, featuring delicate and exquisite workmanship. Equipped with a color touch screen for swift and convenient test operations, offering a simple and visually pleasing interface.
Structured with a well-thought-out design to ensure smoother instrument operation, enhanced accuracy in tests, prolonged lifespan, superior long-term stability, and energy efficiency.
Fully automatic functionality with one-button operation and automatic shutdown for ease of use and convenience.
Utilizes high-precision ball screw parts for stable operation and prolonged lifespan of the testing machine, guaranteeing excellent long-term stability and energy efficiency.
Offers adjustable running speed to accommodate various standard requirements.
Provides high test accuracy for precise and reliable results.
Addresses and resolves issues such as poor wear resistance, low abrasion resistance, and detachment of ink layers.
Compatible with testing the wear resistance of PS version photosensitive layers, facilitating analysis and prediction of PS version durability.
Features an integrated printer for direct printing of testing results.

Ink Rub Tester Overview

The Ink Rub Tester QT-IRT-C2 is a precise instrument designed and produced to meet industry standards and market demands. This updated version of our Ink Rub Testers is perfect for measuring the abrasion resistance of printing ink layers in printed materials, as well as the abrasion resistance of PS plate photosensitive layers and related product surfaces.

Additionally, it evaluates the abrasion resistance of coatings. Users can easily analyze issues such as poor abrasion resistance of printed materials, ink film shedding, low printing durability of PS plates, and inadequate coating hardness of other materials. This Ink Rub Tester adheres to the GB/T 7706-2008 standard for 'Toppan Decorative Prints'.

Test Principle of Ink Rub Tester QT-IRT-C2: The sample is rubbed against the paper under specific pressure, and the degree of ink removed from the sample after a certain number of rubs is assessed, determining the scratch resistance of the sample.
