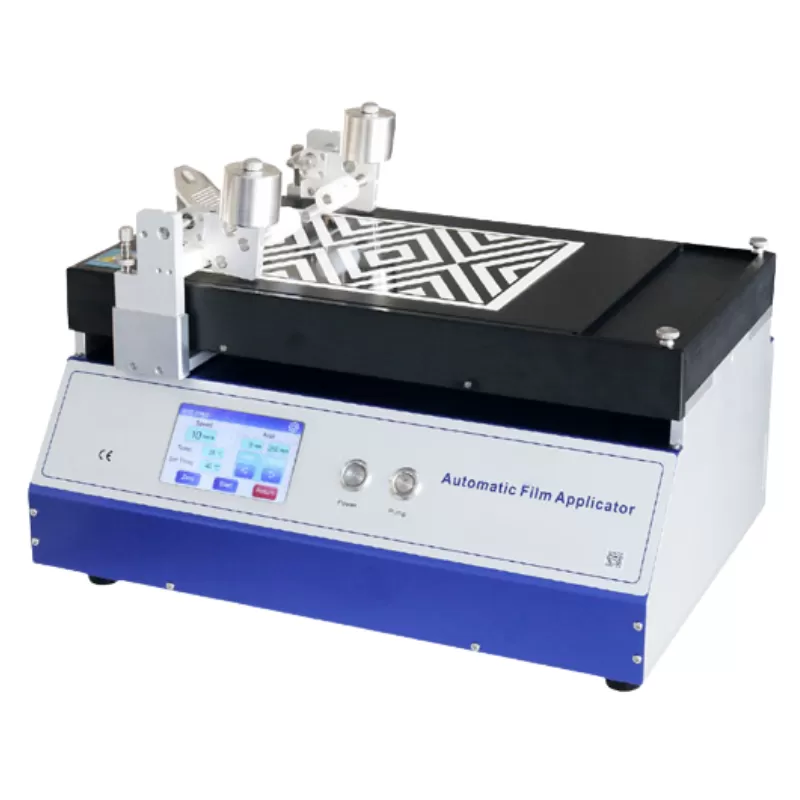

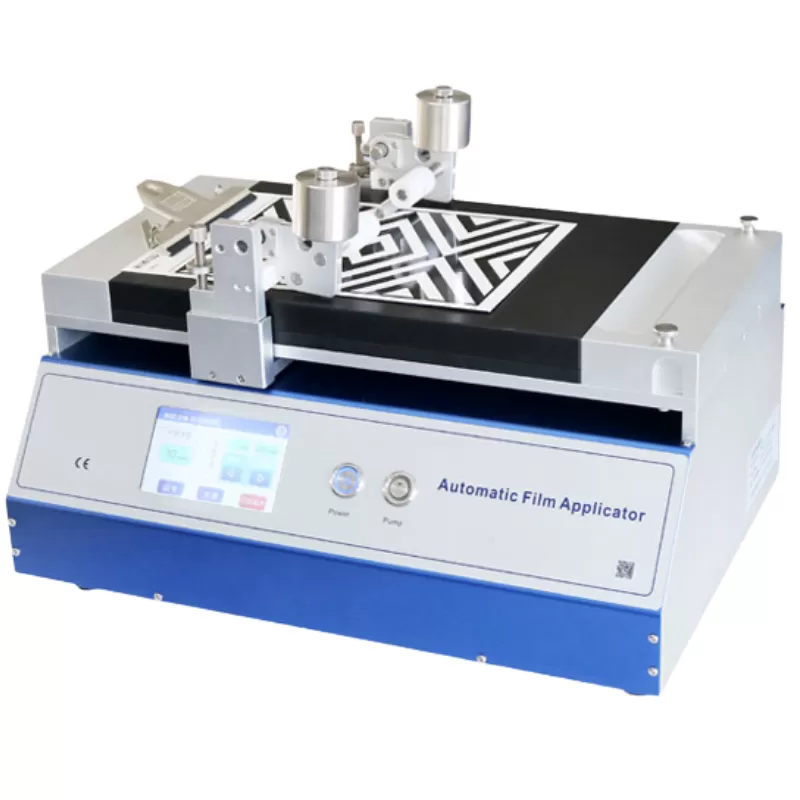

Automatic Film Applicator

Contact

Product code: JUZOI9SFXV

Category: Flexible Packaging & Film Testing , Color, Paint & Coating Testing

The Automatic Film Applicator QualiAFA series, enables experimental chemists to easily apply precise coatings on…

The Automatic Film Applicator QualiAFA series, enables experimental chemists to easily apply precise coatings on various substrates, significantly reducing and eliminating errors caused by manual application. This tool's performance is primarily affected by the shear rate and the downward force exerted on the applicator. It substantially enhances the consistency of paint film applications.

Automatic Film Applicator Technical Specifications:

Ordering Information → Technical Parameters ↓	QualiAFA-I	QualiAFA-II	QualiAFA-III (With Heating)	QualiAFA-IV (Touch screen)
Method of fixing substrate	Vacuum adsorption			Clamp
Application Platform	Hard anodic oxidation aluminum with vacuum holes			Glass
Drawdown vacuum bed Size	360mm×250mm	490mm×250mm	360mm×250mm	400mm×220mm
Drawdown vacuum bed Size with a hole	290mm×190mm	410mm×190mm	290mm×190mm	----
Max. application Length	250mm	375mm	250mm	280mm
Adjustable Draw down Speed	5mm/s～500mm/s		2mm/s～100mm/s	5mm/s～500mm/s
Carriage Holder Weight	500g×2pcs (1KG or 1.25KG is optional)
Total Power	370W		750W	50W
Temperature Range	----		RT+5℃～100℃	----
Temperature Uniformity	----		±5℃	----
Power Source	220V；50Hz (110V available upon request)
Weight	40KG	46KG	42 KG	25 KG
Overall Size (No vacuum pump)(L×W×H, mm)	500×345×340	635×345×340	500×345×340	550×320×340

Automatic Film Applicator Features:

The QualiAFA range is the latest automatic film applicators, offering improvements over traditional products with features such as:

Adjustable variable speed: from 5mm/s to 500mm/s, allowing for a wide range of application speeds.
A high-precision linear guide bar ensures more stable drawdown speeds.
The height of the applicator pusher is adjustable to accommodate different substrates.
A well-designed bracket that is easy and simple to operate, allowing for the application of any load on easily bent substrates.
Users can freely set the starting point, making it suitable for substrates of various sizes.
Four selectable application distances, providing flexibility in coating range.
Compatibility with all types of our applicators and wire bars, offering versatility.
Enhanced repeatability for film application:

Automatic Film Applicator Type

QualiAFA-III (With Heating)

QualiAFA-IV (Touch screen)

QualiAFA I

QualiAFA I, II, and III Models: Feature a specially machined vacuum suction-gas plate with high smoothness (the entire plate's flatness is less than 5 microns) and special hardening treatment, ensuring a smooth and secure adsorption of all substrate types.

QualiAFA IV Model: Comes with a specially machined glass plate with high smoothness (the entire plate's flatness is less than 20 microns), which is also easy to clean.

An optimally designed vacuum plate ensures uniform suction power distribution (exclusive to QualiAFA I, II, and III Models).
An external vacuum pump eliminates all vibration from the traditional in-machine pump structure (exclusive to the QualiAFA I, II, and III Models).

These enhancements make the QualiAFA Automatic Film Applicator Series, essential tools for achieving precise and reproducible coating applications.
