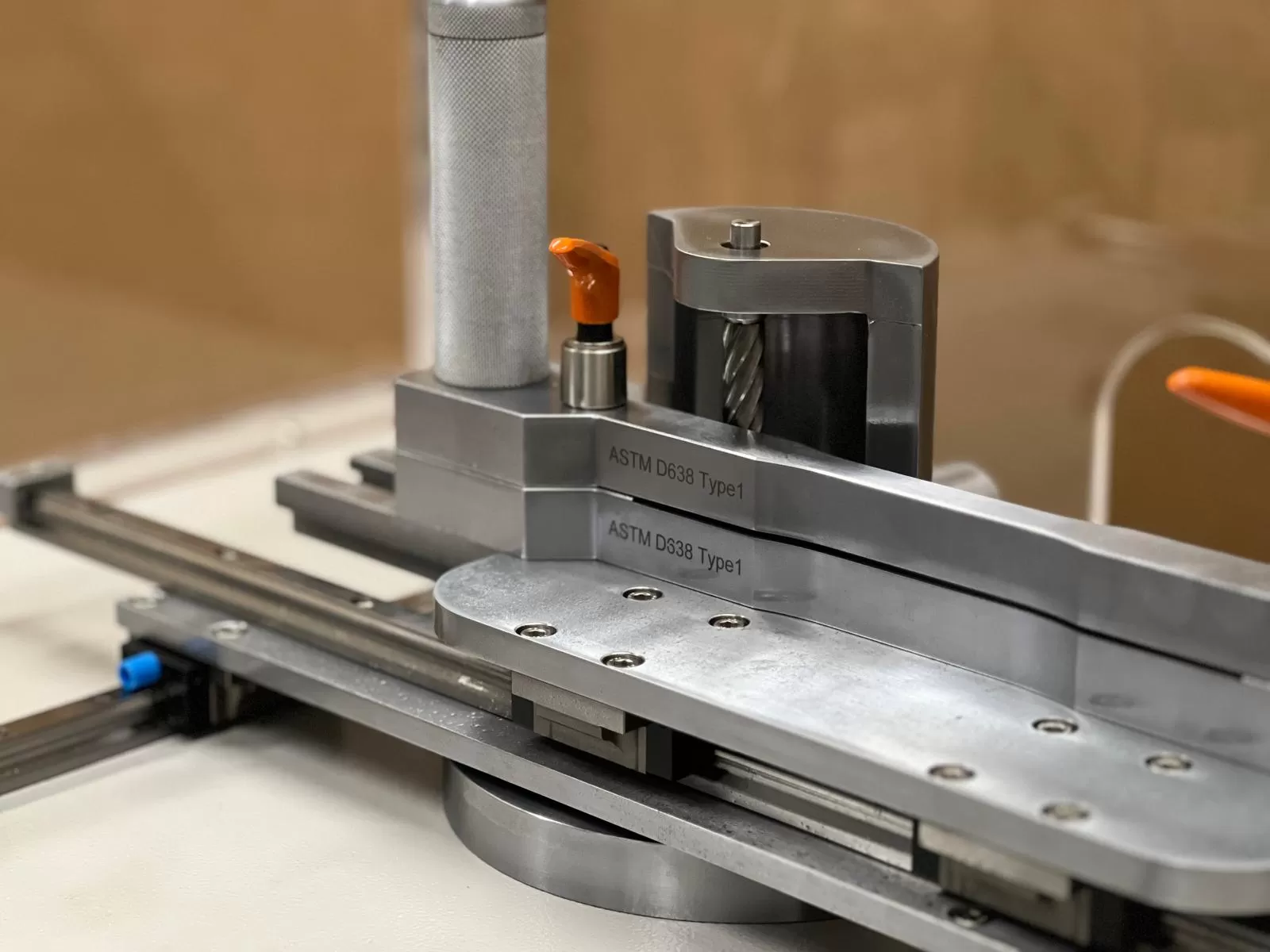

SpeciCut is an ideal laboratory machine offered from Qualitest to cut and mill hard plastic materials into standard dumbbell shape test specimens for Tensile Test such as ASTM D638 and more.
|
Specimen Platform |
X/Y Axis Table |
|
Cutter |
Rotary Milling Cutter (Vacuum Adapter Included) |
|
Cutter Rotating Speed |
3000 rpm (adjustable) |
|
Specimen Mold |
1 Set |
|
Dimensions |
75 x 46 x 115 cm |
|
Weight |
100 kg |
|
Power |
110V / 60 Hz, 5A, other options available. |
SpeciCut Sample Milling Machine is manually operated, and it’s an economical and popular machine to prepare plastic tensile specimens. SpeciCut is an enclosed machine which includes integral misting, chip removal and motor speed adjustment functions.

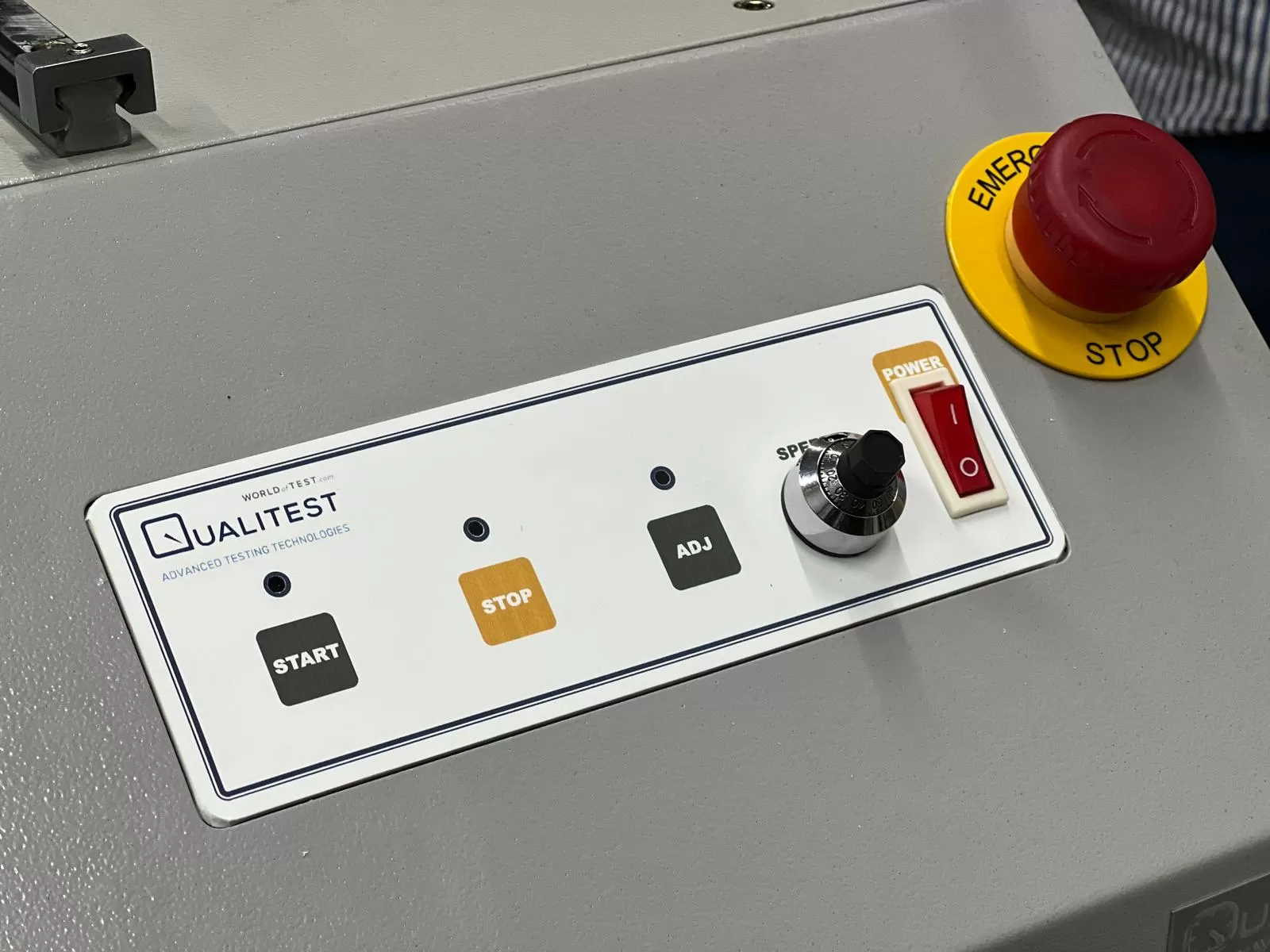

The chip shield around the control head protects the area around the unit from debris, while the sound reduction enclosure reduces the noise while operating the unit. The buttons on the front of the panel enable the operator to easily access the functions, while the emergency stop switch located on the machine cuts the power simultaneously in case needed.
