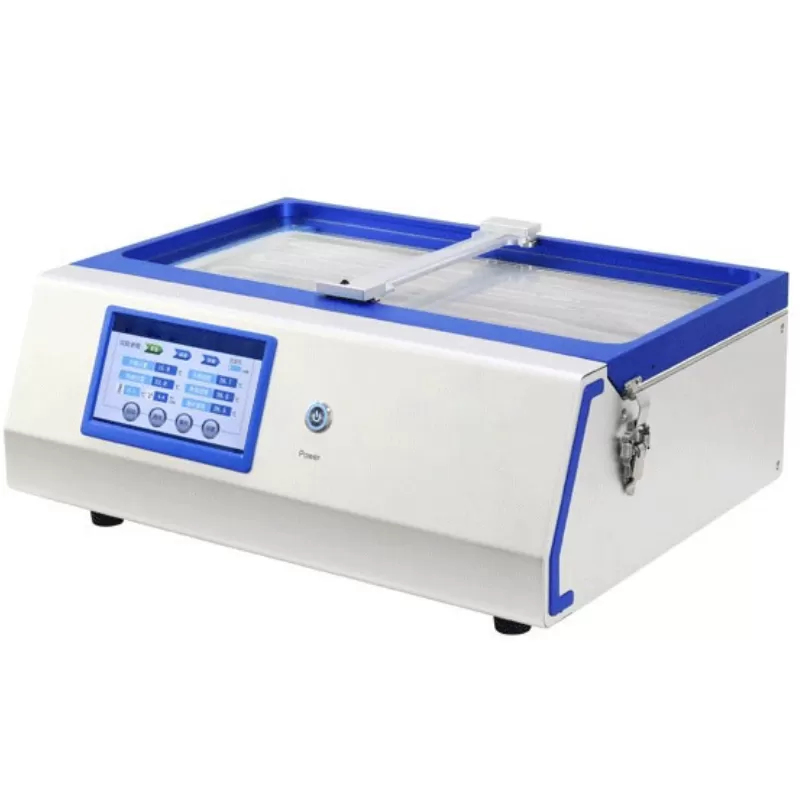

MFFT Minimum Film Formation Temperature Tester

Features:

• This high-tech product combines numerous patents with independent intellectual property rights.
• It has a compact size, offers high precision, operates intelligently, and is easy to use and maintain.

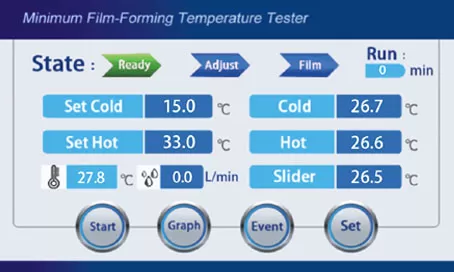

• Equipped with a color touch screen and menu-based operating system, displaying all parameters in real-time.

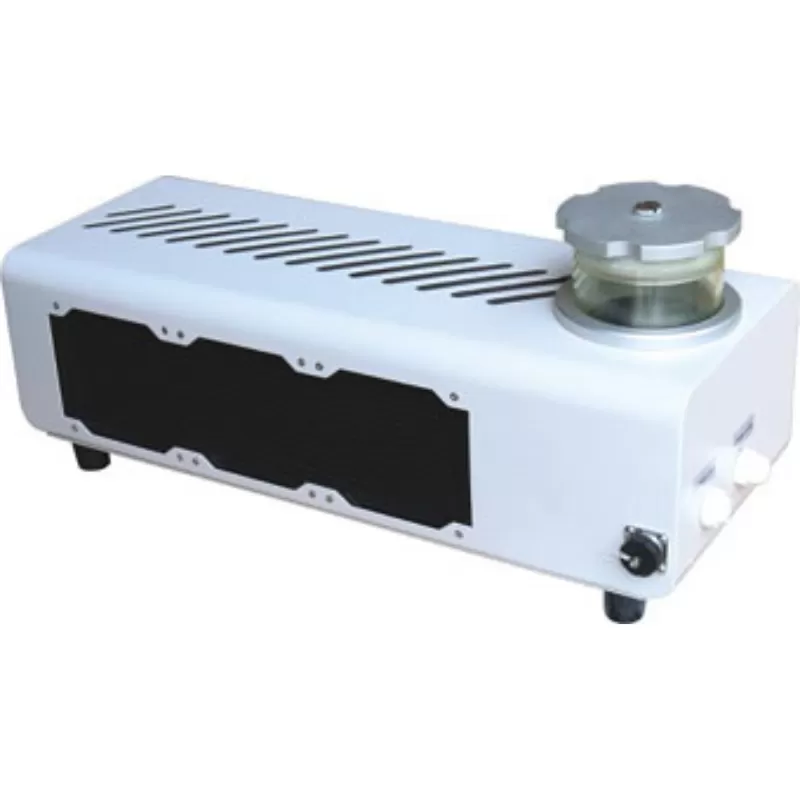

• Utilizes a high-precision digital temperature sensor to ensure a temperature error of less than 1 degree. Includes a chiller.
• Provides an optional Dry Air Generator that produces dry dew point air, ensuring the sample dries completely and test results are unaffected by environmental humidity.
• The removable scale allows operators to read the temperature at any point on the gradient platen easily. Operators can freely move the scale, enabling the tester to automatically identify the current position and display the relevant temperature.
• Automatically monitors cooling water temperature and flow, with the tester stopping automatically upon any exceptional conditions.
• The platen temperature gradient is made of copper using a special process, enabling fast heat conduction and strong stability.
• The system automatically reminds the operator of the testing progress. Offers seven work conditions for selection, making it convenient to measure different film-forming temperature samples.
• Distributed on the gradient platen are 16 high-temperature sensors.
• Includes the BGD 203/3 cube applicator, allowing for the application of a 100-micron continuous and uniform wet film with a width of 22mm(0.7874 inches).

MFFT Minimum Film Formation Temperature Tester Overview:

At a specific temperature, if the temperature isn't sufficiently high, the emulsions or polymer dispersions won't allow the polymer particles to polymerize. Consequently, all polymer particles can't amalgamate, resulting in an irregular and non-transparent white mass. On the other hand, if the temperature is high enough to facilitate particle merging, a continuous and transparent film can be formed.

White Point Temperature: This is the temperature at which a non-transparent film transitions to a transparent film.

MFFT Minimum Film-Forming Temperature:

It is the lowest temperature at which a continuous, uniform, and crack-free film forms. Generally, the White Point Temperature is several degrees lower than the MFFT.

MFFT Minimum Film-Forming Temperature Tester (Q-MFFT-1000):

MFFT(Q-MFFT-1000) main structure comprises a metal copper platen with an electronically controlled temperature gradient. Temperature sensors within the platen monitor the temperature gradient, and a graphical representation is displayed on the touch screen. The platen has separate cooling and heating sources located at its two ends, creating varying temperature gradients using metal heat conduction theory.

To use the tester, apply a wet film of emulsion or dispersions with a continuous and uniform thickness on the temperature gradient platen. Dry it using dry air, and due to the temperature variations on the platen, the sample's water evaporates and forms a film.

The film-forming position differs due to the varying temperature on the platen. The dividing point between a continuous transparent film and a non-transparent white film is identified, which is also displayed on the tester's touch screen as the MFFT. This process aligns with ASTM D 2354 and ISO 2115 standards, enabling easy and accurate testing of the minimum film temperature of emulsion polymer.
