Name: Heat Flow Meter - Thermal Conductivity Tester
SKU: KU1VIZEBFQ
Availability: InStock
Rating: 5 (1 reviews)

Heat Flow Meter - Thermal Conductivity Tester

Contact

Product code: KU1VIZEBFQ

Heat Flow Meter - Thermal Conductivity Tester QualiHFM-2000 is designed to measure thermal conductivity, a key factor…

Heat Flow Meter - Thermal Conductivity Tester QualiHFM-2000 Technical Specifications

Thermal conductivity measurement range	0.001—2.000 W/(m•K)
Thermal resistance measurement range	≥0.02 m²•K/W
Thermal conductivity measurement accuracy	±3%
Thermal conductivity measurement repeatability	±1%
Temperature control range	-5~95℃
Temperature resolution	0.01℃
Specimen size	300mm×300mm×H(10 ~ 60) mm
Specimen flatness	0.1mm
Standard thickness	25mm
Clamp force	≤2.5kPa
Ambient temperature	15-30 ℃, standard temperature 23±2℃
Humidity	20-80%RH, standard 40-60%RH
Voltage	AC 220V±10%, 2.5kW (110V is also available)

Heat Flow Meter - Thermal Conductivity Tester QualiHFM-2000 Features

It features an OMRON programmable logic controller (PLC) CPU unit with a dedicated temperature expansion module, offering strong resistance to interference and high stability.

For isolation control, it utilizes solid-state contactless switch device, ensuring high reliability, low noise, and fast switching speeds.

Equipped with a standard RS-232 serial port, it provides reliable and user-friendly connectivity.

Its PID control system uses software-based self-tuning to optimize PID parameters, ensuring precise temperature regulation.

Designed for efficiency, it accommodates three groups of six specimens at once, minimizing deviations in thermal conductivity due to system errors.

The software control system supports both automatic and manual operation modes, providing flexibility for different testing requirements.

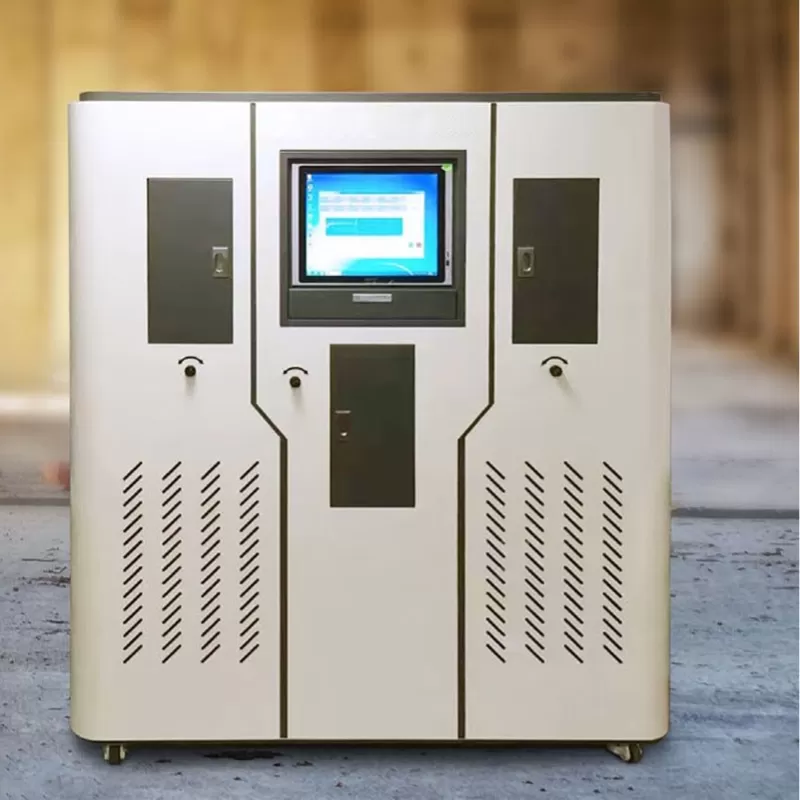

Heat Flow Meter - Thermal Conductivity Tester QualiHFM-2000

Heat Flow Meter - Thermal Conductivity Tester QualiHFM-2000 is designed to measure thermal conductivity, a key factor in evaluating the heat resistance and insulation performance of materials.

The QualiHFM-2000 Heat Flow Meter accurately determines the thermal conductivity of various uniform plate materials, including plastics, rubber, glass, fiberboard, styrene board, extruded board, foamed concrete, hollow glass, wood board, as well as granular, bulk, and soft materials. It operates under different temperature conditions, ensuring precise and reliable results.
