Thermal Conductivity Tester – Heat Flow Meter

Contact

Product code: B4CE2FN0VU

Thermal Conductivity Tester – Heat Flow Meter QualiHFM510A is a professional instrument designed to measure the thermal…

Thermal Conductivity Tester – Heat Flow Meter QualiHFM510A Technical Specifications

Operating Environment	-5°C to 45°C, < 95% RH
Plate Temperature Range	-30°C to 90°C
Cooling System	External Refrigeration
Plate Temperature Control	Peltier System
Number of Setpoints	>10
Sample Size	Length 300 mm, Width 300 mm, Height ≤100 mm
Thermal Resistance Range	0.1 m²·K/W to 8 m²·K/W
Thermal Conductivity Range	0.001 W/(m·K) to 1 W/(m·K), Scalable up to 2 W/(m·K)
Accuracy	±1% to 2%
Repeatability	±0.5%
Variable Load Force	21 kPa (1930 N)
Thickness Range	0 to 100 mm
Thickness Resolution	0.02 mm

Thermal Conductivity Tester – Heat Flow Meter QualiHFM510A Features

Highly Automated Functionality: Includes automatic lifting and lowering of the heating plate, load force testing, thickness measurement, temperature control, and furnace door operation.

Rapid and Accurate Testing: Equipped with dual heat flow sensors for enhanced precision and independent temperature control for the upper and lower plates.

Enhanced Sample Handling: Features external oil bath cooling, nitrogen gas purging for sample drying, low sensitivity to environmental changes, a broad temperature range, and exceptional stability.

Adaptive Surface Measurement: Accommodates uneven sample surfaces and includes molds for particle sample preparation, reducing preparation requirements.

Advanced Software Capabilities: Supports thermal conductivity extension modes, offline operation, real-time data monitoring, automatic test report generation, and flexible experimental options.

Data Management and Customization: Offers optional user login, historical record queries, customizable data storage, and export options.

Integrated Industrial Design: Built-in industrial computer eliminates the need for external devices while allowing connections for peripherals such as a mouse, keyboard, or printer.

Elegant and Intuitive Interface: Features a high-definition touchscreen, intelligent user interface, and a sleek, modern design.

Thermal Conductivity Tester – Heat Flow Meter QualiHFM510A

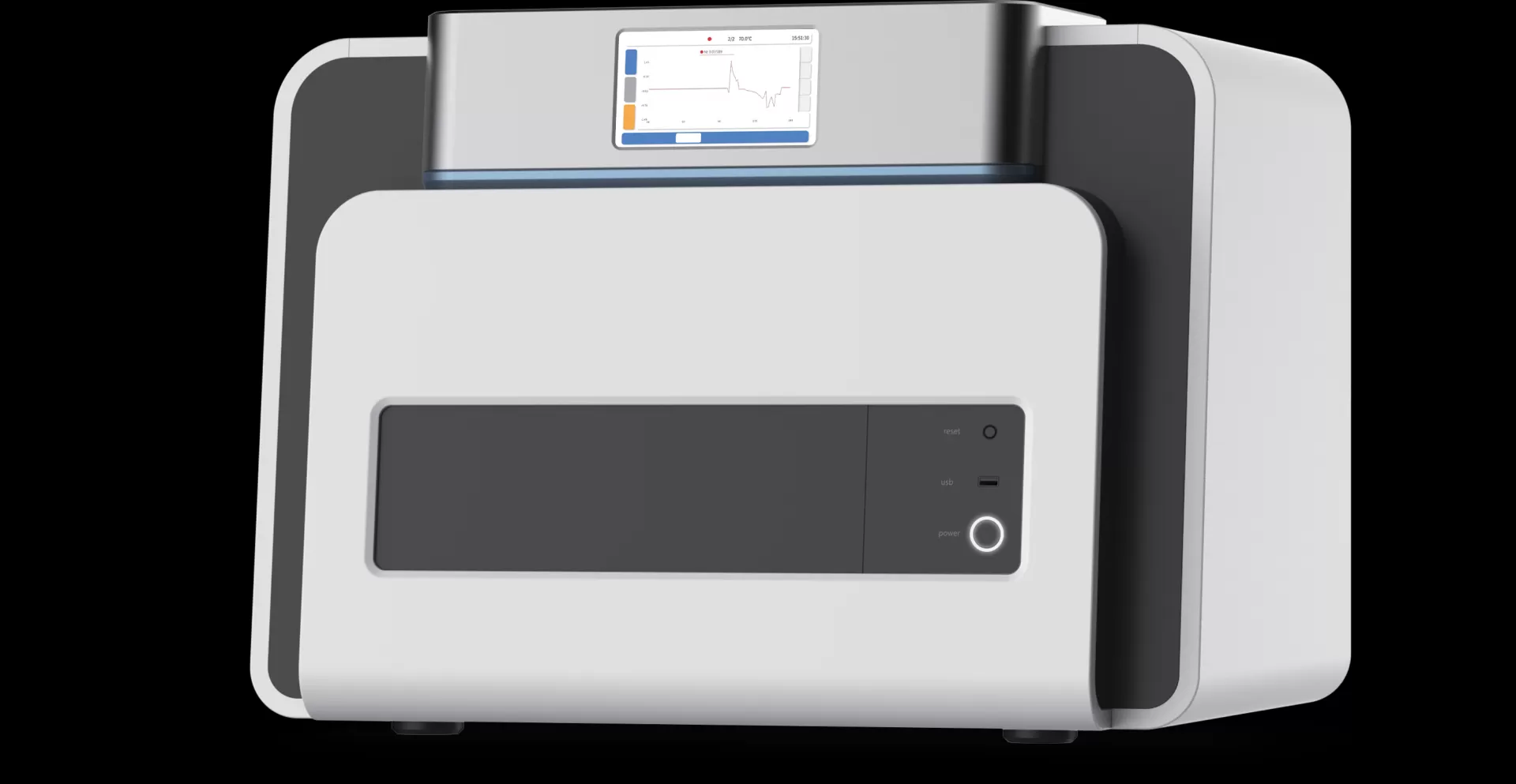

Thermal Conductivity Tester – Heat Flow Meter QualiHFM510A is a professional instrument designed to measure the thermal conductivity of materials in compliance with standards such as ASTM C518, ISO 8301, DIN EN 12667, and others. It delivers exceptional accuracy, efficiency, and reliability.

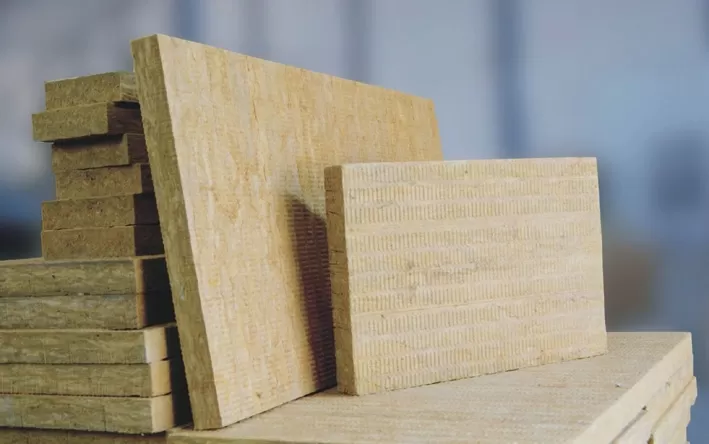

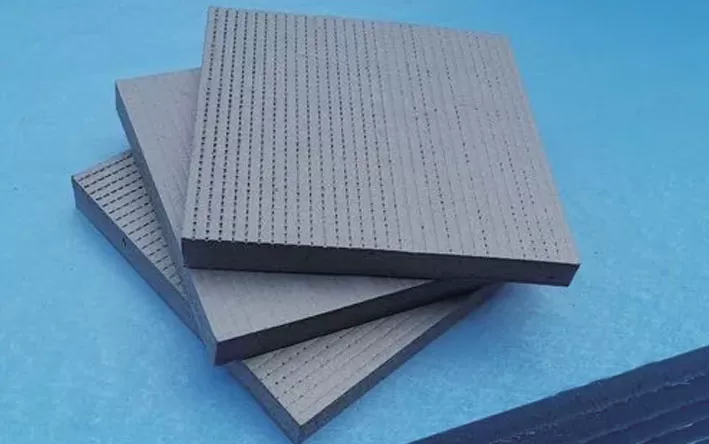

This device is capable of testing a wide range of low thermal conductivity materials, including expanded polystyrene, extruded polystyrene, rigid PU foam, mineral wool, expanded perlite, foam glass, natural fibers, cork, wool, aerogels, concrete, gypsum, and more. Its operation is highly automated, with intuitive, user-friendly software.

The QualiHFM510A is widely used in industries involving building materials, refrigeration systems, and insulation products, among other applications.

Application Fields
