Asphalt Mix Analyzer QualiAMA-8159 Series Features

• Computer-Controlled Operation: Offers user-friendly controls and a display for selecting soaking time, cleaning, and drying cycles based on specific requirements.
• Real-Time Monitoring: Displays ongoing processes and time in real-time.
• Efficient Extraction: Completes the entire extraction process within 1 hour.
• Rubber-Asphalt Capability: Supports the extraction of rubber-asphalt mixtures (specific to QualiAMA-8159A).
• Minimal Solvent Loss: Operates in a closed system to minimize solvent waste.
• Enhanced Cleaning: The cleaning chamber includes a heating function and ultrasonic technology, accelerating asphalt dissolution for improved efficiency.
• Observation Window: Located at the centrifuge inlet, enabling real-time monitoring of mixture color.
• High-Speed Centrifuge: Rotates at speeds of at least 8000 r/min, ensuring thorough separation of mineral powder.
• Integrated Drying System: Dries aggregate and mineral powder, simplifying asphalt content calculations.
• Aggregate Processing: Allows further sieving of collected aggregates.
• Advanced Distillation System: Includes a mixed liquid silo, solvent silo, and cooling device.
• Sampling System: The vacuum rotary evaporation system offers a soaking time range of 3–30 minutes before cleaning and can directly extract asphalt mixture samples.
• Superior Cooling: Equipped with advanced cooling equipment that outperforms traditional tap water cooling methods, conserving water resources.

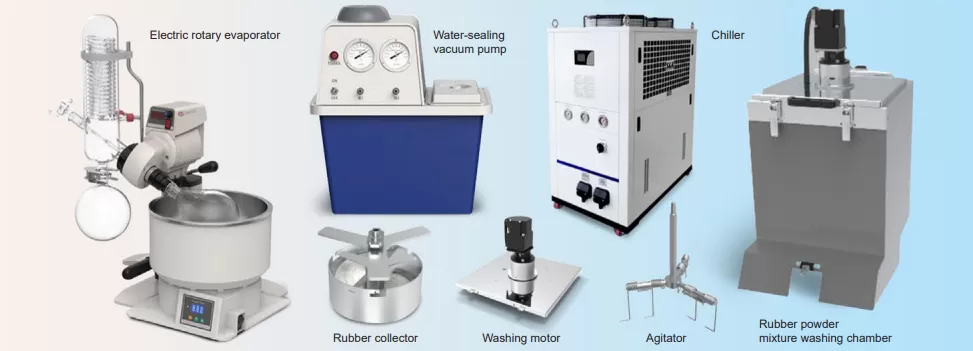

• Optional Electric Rotary Evaporator: Available as an add-on feature.

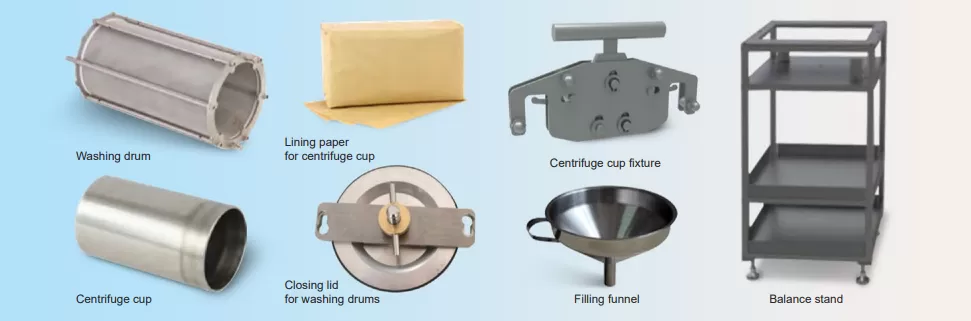

• Customizable Cleaning Fixtures: Supports the cleaning of specific asphalt experiment utensils with customizable fixtures (optional).

This advanced system combines precision, efficiency, and sustainability for asphalt extraction and analysis.

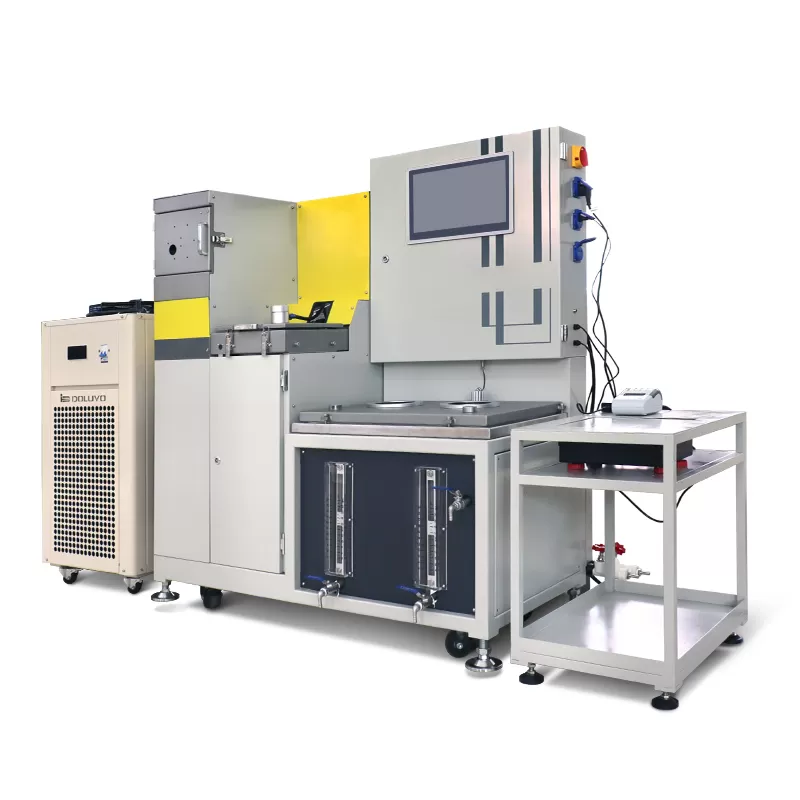

Asphalt Mix Analyzer QualiAMA-8159 Series

Asphalt Mix Analyzer QualiAMA-8159 Series is designed for the extraction and separation of asphalt, mineral powder, and rubber particles (specific to rubber asphalt in model QualiAMA-8159A) from asphalt mixtures. It allows for asphalt recovery and facilitates the calculation of asphalt content. The recovered asphalt's performance can be assessed through subsequent tests, providing critical data for asphalt mixture recovery.

This equipment features a cleaning system, centrifugal system, drying system, and extraction system. The entire process operates within a closed system, promoting environmental safety and eliminating direct contact between the operator and solvents.
