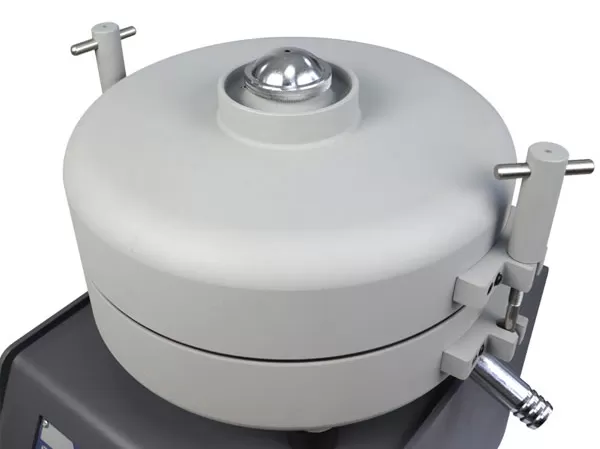

Asphalt Centrifuge Extractor QualiACE-T164 is designed to measure the bitumen content in bituminous mixtures. Features a removable, precision-machined rotor bowl enclosed in a cylindrical aluminum casing. The rotating unit is supported by four calibrated springs, ensuring stability throughout the test.
The precisely crafted cover is equipped with a solvent-resistant gasket to prevent leaks. For emergency situations, all models include a manual brake system. The control panel is user-friendly, featuring a Start/Stop button and a speed control knob.
| Specification | Details |
|---|---|
| Voltage | 220 V ±10V (110V is also available) |
| Rotating speed | 3600 r/min |
| Power | 370W-550W |
| Max. weight of specimen | 3000 g |
| Filter paper | Pack of 20 |
| Overall dimension | Dia. 350 mm × 526 mm height |
| Weight | 35 kg |
A precision-engineered solution for determining bitumen content in asphaltic mixtures, offering unparalleled accuracy and efficiency. Designed for compliance with ASTM D2172, AASHTO T164A, and EN 12697-1 Clause B.1.5 standards, this extractor is an essential tool for asphalt laboratories seeking reliable performance.
Built with a durable cast aluminum casing and aluminum bowl assembly, it ensures long-lasting performance and stability during testing. The explosion-proof design enhances safety, while the bowl speed of up to 0-3,600 rpm facilitates quick and precise separation. Its user-friendly features, including easy pouring for solvents and a leak-resistant solvent-resistant gasket, streamline the testing process.
The unit is supplied complete, equipped with calibrated springs, a manual brake system for emergencies, and essential accessories like filter discs for effective separation. The ability to control the pouring of the solvent into the bowl and its robust design make the QualiACE-T164 a trusted choice for asphalt laboratories worldwide.
