Abrasion Resistance Tester for PE-UHMW - QualiAbrade-UHMW Features

Uniform Rotation Across All Six Stations
The tester includes six synchronized stations, allowing simultaneous testing of six specimens. Each station is driven by a synchronous belt connected to a central spindle motor, ensuring consistent rotation speed across all samples. This setup enhances result comparability.

Automatic Lifting System for High Efficiency and Safety
A capacitor motor powers the chain-driven lifting mechanism, allowing the specimen platform to stop at any point within its range. This makes specimen placement and inspection easier. The system includes a dual-limit safety design—if the primary limit fails, the secondary limit automatically cuts power to ensure safety.

Sealed Immersion Test Cup
The test cup lid is pressed securely into a circular groove to prevent slurry overflow during rotation. Three upper-mounted springs press the lid firmly in place, ensuring a tight seal and stable operation.

Independent Cooling System
All six test cups are immersed in a circular water tank. The slurry temperature is regulated by the surrounding water, which is cooled through embedded copper tubes connected to a dedicated refrigeration system. This design maintains a consistent temperature across all cups, with a variance of less than 1°C.

External Stirring with Rotating Specimen Disk
Key components such as the handle, stirring shaft, test cup lid, cup body, and water tank are all made of stainless steel for enhanced corrosion resistance and easy maintenance.

Automated Testing with Real-Time Monitoring
The digital panel allows for countdown-based test timing (default: 3 hours). The system automatically begins timing upon test start and displays real-time data including slurry temperature and specimen rotation speed. This streamlines operation and reduces manual effort.

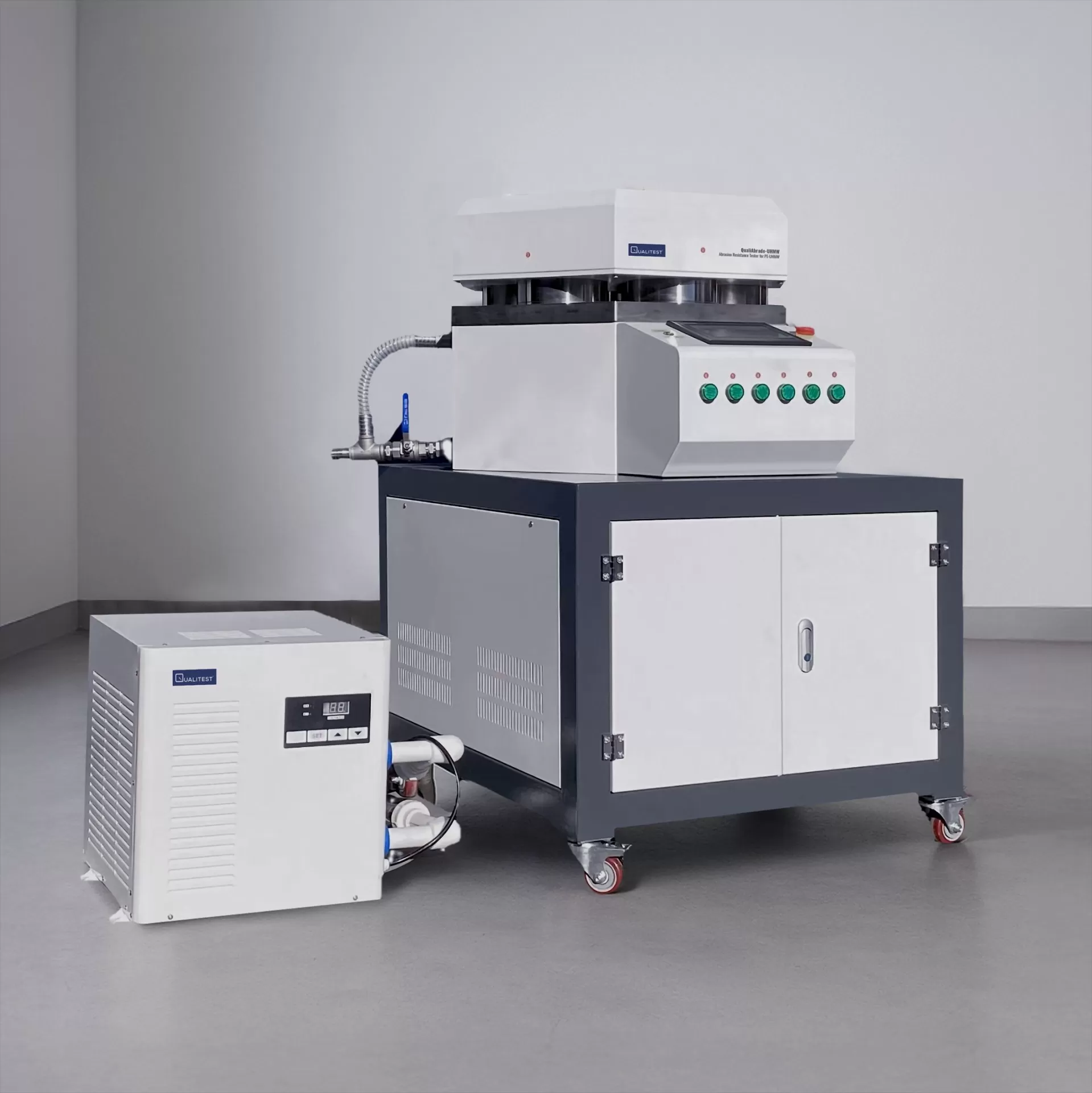

Abrasion Resistance Tester for PE-UHMW - QualiAbrade-UHMW

QualiAbrade-UHMW Abrasion Resistance Tester for PE-UHMW is designed to test the abrasion resistance of ultra-high molecular weight polyethylene (PE-UHMW) and high-density polyethylene (PE-HD). It is an essential tool for quality control during factory inspections, incoming material checks, and product comparisons in resin-based manufacturing.

The system features microcomputer control, providing accurate real-time display of rotation speed and temperature. Users can also set a countdown timer directly on the panel. This ensures reliable results with high precision and consistent performance.
