Name: Zero Distance Package Drop Tester Qualista-ZDT300
SKU: RYOXM6VJN2
Availability: InStock
Rating: 5 (1 reviews)

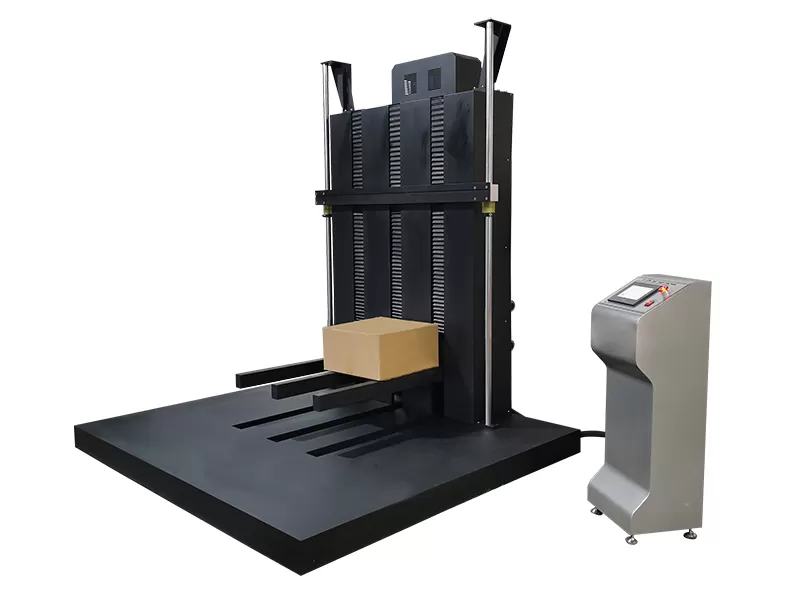

Zero Distance Package Drop Tester Qualista-ZDT300

Contact

Product code: RYOXM6VJN2

Zero Distance Package Drop Tester Qualista-ZDT300 is primarily used to evaluate the effects of actual…

Zero Distance Package Drop Tester Qualista-ZDT30 Technical Specifications

Model	Qualista-ZDT30
Control mode	PLC touch screen
Maximum test load	300kg
Maximum specimen size	2000×1500×1500(mm, L×W×H)
Test height	0~1200mm adjustable
Test aspects	Edge, Angle, Surface
Drive	Motor drive
Protection device	Induction type protection device
Material of Impact plate	45# steel, solid steel plate
Reading	Digital
Bracket structure	45# steel
Transmission	Linear slider and copper sleeve, 45# steel
Accelerating device	Mechanical (Ensure that the speed of the bracket falls faster than the drop rate of the test product)
Drop mode	Electromagnetic and pneumatic integrated
Voltage	220V, 50HZ, 5KW (110V is also available)
Weight	1800KG
Dimension	Main body: 2600×1620×3090mm (L×W×H) Console: 360×320×1000mm (L×W×H)

Zero Distance Package Drop Tester Qualista-ZDT300

Zero Distance Package Drop Tester Qualista-ZDT300 is primarily used to evaluate the effects of actual transportation, including the loading and unloading process, on packages. It assesses the impact strength and the rationality of the packaging design.

Test Method

The Zero distance drop tester features an “E” fork that can move down quickly. The goods being tested are balanced according to the test requirements (face, edge, angle test). During testing, the pallet moves down rapidly, separating from the specimen before the test package drops to the floor. Thanks to a high shock absorber, the “E” fork embeds into the floor. Theoretically, the zero distance drop tester can perform tests from zero height to the maximum drop height. The drop height is set according to test requirements, and the tester automatically performs the drop test at the set height. It uses a PLC programming man-machine interface for simple, convenient, and powerful control.
