Taber-type Rotary Abrasion Tester QualiTA-II Features

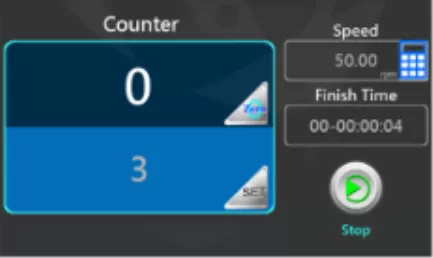

1. User-Friendly Touchscreen
   Easily configure essential parameters such as test speed and cycle count directly from the touchscreen. Perform one-touch zeroing and track the remaining test time for a smooth testing experience.

2. Speed-Adaptable Configuration

   • Voltage Flexibility: Supports 100V-240V input.
   • Consistent Rotation Speed: Maintains uniform rotation speed despite variations in voltage and frequency across regions.

3. Wide Speed Adjustment Range
   Test speed is adjustable from 5 to 100 rpm (±2%), allowing for a broad range of testing conditions.

4. Consistent Wear Path
   The superior mechanical design ensures a consistently uniform wear path throughout testing.

Taber-type Rotary Abrasion Tester QualiTA-II

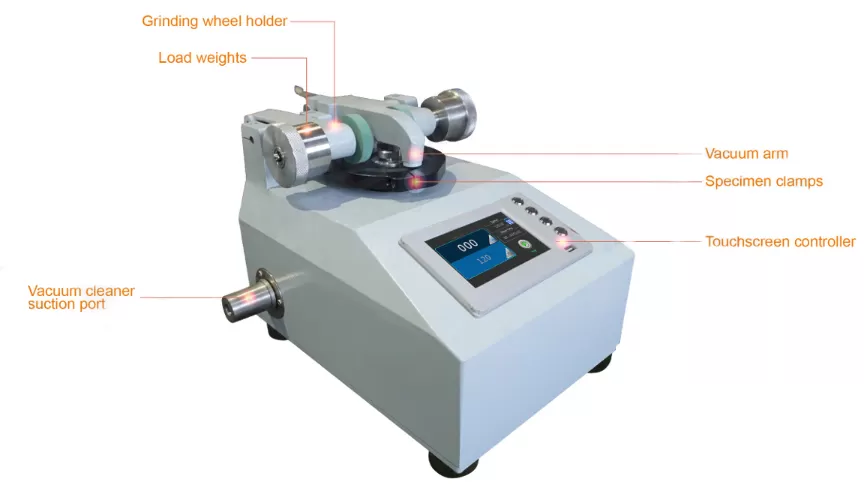

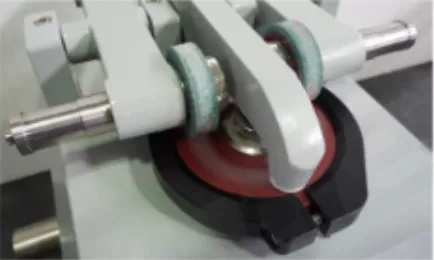

Taber-type Rotary Abrasion Tester QualiTA-II consists of a specimen clamping disk, two grinding wheels, and two vacuum nozzles. The device's specimen clamp, positioned beneath two wheels, can be adjusted with different load weights. Users can set the desired test revolutions, and during operation, the nozzles remove dust produced by the abrasion process.

This Abrader complies with abrasion testing standards such as ISO 5470, ASTM D3884, ASTM D4060, ASTM D1044. It is suitable for testing a wide range of materials, including paper, fabric, panels, carpets, glass, rubber, plastic, and more.

Industry

Rubber, plastics, textile, paper and construction material

Accessories

• Standard Accessories: Includes one Vacuum cleaner.
• Reference Grinding Wheels for Different Sample.

Mat, nut	Sandpaper
Cutter	Grinding wheels
Load weights	Wrench

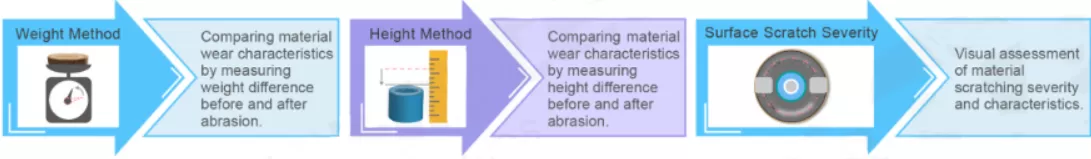

Result Analysis Method (Abrasion Method)
