Features of Low Temperature Compression Set Tester

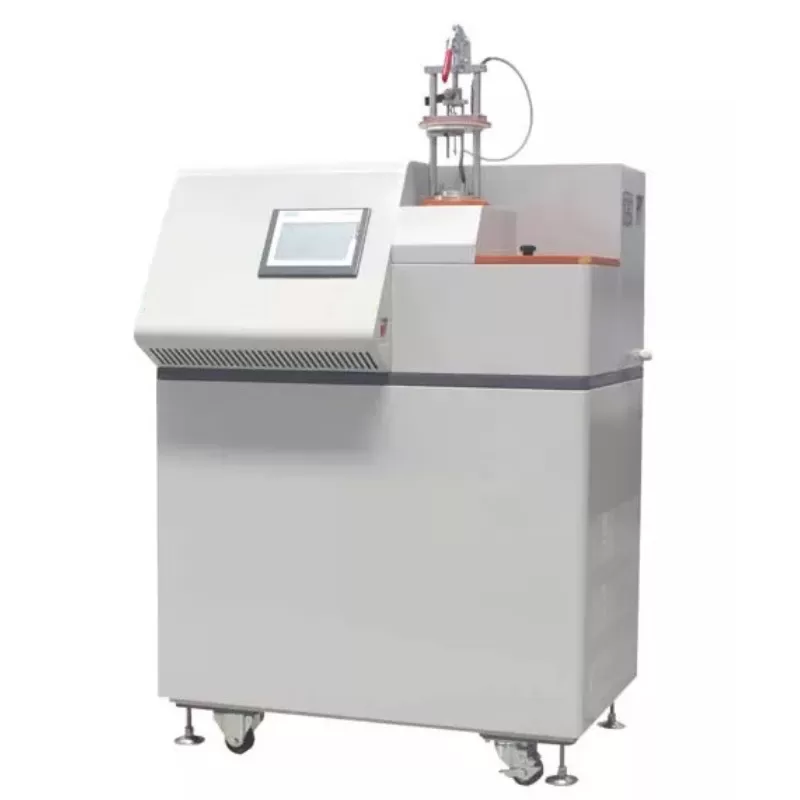

Low Temperature Compression Set Tester

This advanced Low-Temperature Compression Set Testing Machine is used for the determination of the compression set characteristics of vulcanized and thermoplastic rubbers at low temperatures.

Method 2 of ISO 815 standard uses a specified testing device, allowing to measure and record the test piece thickness during recovery. Due to the load applied during recovery in method 2, no correlation can be established between the results given by both methods.

When rubber is held under compression, physical or chemical changes that prevent the rubber returning to its original dimensions after release of the deforming force can occur. The result is a set, where the magnitude of which depends on the time and temperature of compression as well as on the time, temperature, and conditions of recovery. At low temperatures, changes resulting from the effects of glass hardening or crystallization become predominant and, since these effects are reversed by raising the temperature, therefore, the measurements are always taken at the test temperature.

Low Temperature Compression Set Testing Machine - Principle

At the standard test temperature, a sample with a known height is compressed to a specified height as required, compressed for a certain period of time at the specified low temperature test temperature, and then the compression is removed at the same low temperature, and the sample is restored to a free state. The height of the sample is measured at low temperature at certain intervals to obtain a logarithmic curve of the height of the sample versus time to evaluate the compression permanent deformation characteristics of the sample.

• Wide Application Areas: It is suitable for the application of rubber materials in automobiles, aerospace, refrigeration equipment and other fields, and provides an in-depth understanding of the performance of materials in extreme low temperature environments.
• Designed for Rubber Compression Set: This testing machine is designed for the compression set test of rubber materials to ensure that the performance of rubber materials can be accurately and reliably evaluated under low temperature conditions.
• Temperature Control and Stability: Providing an accurate low-temperature control system to ensure that a stable low-temperature environment can be maintained throughout the entire test process is critical to simulating extreme low-temperature conditions in actual applications.
• Compression Control and Accuracy: This machine has a highly accurate compression control system to ensure that the sample is accurately compressed to the specified height according to the specified compression requirements to ensure the accuracy of the test.
• Meets Industry Standards and Regulations: This Low Temperature Compression Set Tester can ensure that products comply with relevant industry standards and regulations, reduce risks, and improve product compliance in the market.

The low-temperature compression set testing machine becomes a powerful tool that can be used to determine the stability and deformation characteristics of rubber materials in extreme low-temperature environments, thereby guiding product design and material selection.
