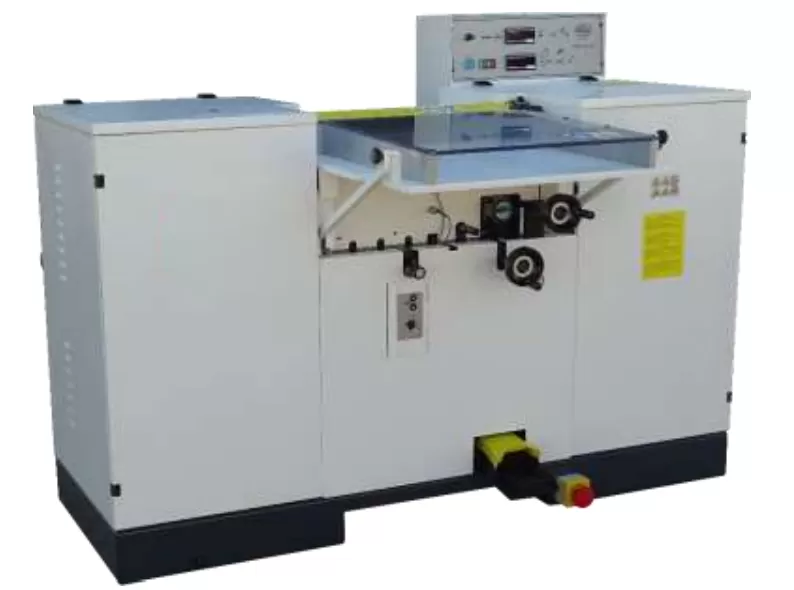

High Capacity Cutting / Splitting Machine for Polyurethane, Rubber, Plastics and other Elastomers Technical Specifications:
| Working Width |
550 mm |
| Maximum Thickness |
60 mm |
| Minimum Thickness |
0.2 mm |
| Cutting Tolerance |
0.1 mm |
| Number of Digital Displays |
2 (for upper and lower cutting thickness), adjustable separately |
|
Automatic positioning and compensation for knife wear |
|
|
High precision knife guide plate with automatic adjustment |
|
|
Special device to ensure table entry is always parallel to the cutting knife |
|
|
Micrometric sharpening adjustment |
|
|
Electronic speed adjustment via inverter from 1 to 20 meters per minute |
|
|
Knife tension indicator |
|
|
Special device for knife lubrication |
|
|
Upper feed roller |
|
|
Lower feed roller with pressure adjustment |
|
|
Grinding waste exhauster |
|
|
Optical group for controlling chamfer position and symmetry |
|
| Maximum Absorbed Power |
3.5 kW |
| Power Supply |
Three-phase, 400 Volts, 50/60 Hz |
| Machine Dimensions |
170 x 100 x 120 cm (height) |
| Machine Weight |
860 kg |
