Reference Standards

STANDARDS THE LABORATORY CUTTING / SPLITTING MACHINE FOR FINISHED RUBBER SAMPLES COMPLIES WITH:

ASTM D3183; ASTM D1056; ISO 23529; EN 60811-1-1; IEC 60811_1_1;

Laboratory Cutting / Splitting Machine for Finished Rubber Samples Characteristics

WORKING WIDTH

300 mm

MINIMUM CUTTING THICKNESS

0.5

MAXIMUM CUTTING THICKNESS

8 mm

ADJUSTMENT OF CUTTING

THICKNESS Digital display with 0.01 mm resolution

SHARPENING SYSTEM

Sharpening device with micrometric drive integrated into the machine

SPLITTING THICKNESS REGULATION

Manual Regulation. Control panel with digital thickness display with 0.01 mm resolution.

FEED

Manual feed speed selection: 0.9, 1.8, 2.8 m/min

REGULATION OF THE BLADE

Manual Micrometric knife positioning and compensation for knife consumption.
Optical group to control the chamfer position and symmetry.

LUBRICATION UNIT

Automatic lubrication unit with lubrication tank

ASPIRATION UNIT (OPTIONAL)

Removable aspiration unit. Power 250 W

Construction Characteristics

POWER

380 VAC ±10%, 50Hz ±3, 2,7 Kw, three phase - Other on Request

DIMENSION OF THE BAND-KNIFE

2768 x 40 x 0.6 mm

DIMENSION OF THE MACHINE

(Width x Depth x Height) 1200 x 900 x 1100 mm

WEIGHT

350 kg

Safety Devices

SAFETY DEVICES

Safety Pushbutton
Safety switches for mobile protections

LABELLING

CE Labelling

Laboratory Cutting / Splitting Machine for Finished Rubber Samples Features:

Instrument Features:

Operating Width: 300 mm
Maximum Cutting Thickness: 8 mm
Minimum Cutting Thickness: 0.5 mm
Manual Micrometric Knife Positioning: Allows for precise knife adjustment and compensation for knife wear.
Micrometric Sharpening Mechanism: Ensures accurate and controlled blade sharpening.
Variable Feed Speeds: Choose from manual speed options: 0.9 / 1.8 / 2.8 m/min
Motor-Driven Steel Feed Rollers: Both upper and lower rollers are motor-driven for efficient operation.
Control Panel with Digital Thickness Indicator: features a 0.01 mm resolution for precise thickness measurement.
Optical Group for Chamfer Control: Enables assessment of chamfer position and symmetry.
Automatic Blade Lubrication Unit: Equipped with an automatic lubrication system for the splitting machine's blade.
Self-Adjusting Knife Guide Plate: Facilitates hassle-free operations by automatically adjusting the knife guide plate.
CE Safety Systems: Incorporates safety features compliant with CE standards.
Easy Maintenance: Designed for straightforward maintenance procedures.

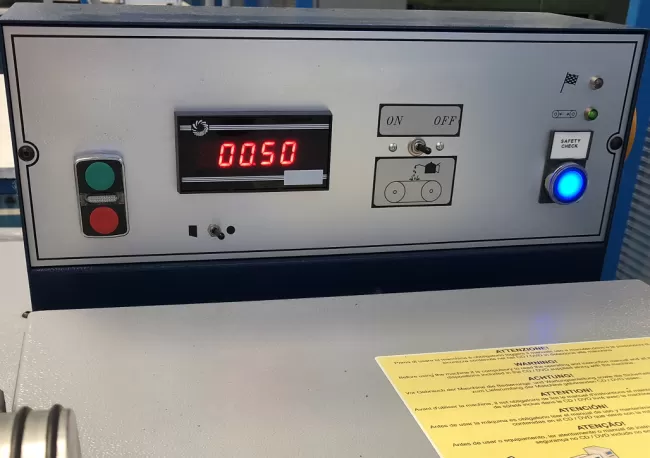

Laboratory Cutting / Splitting Machine for Finished Rubber Samples Features

Accessories: Removable Aspiration Unit:

Enhance your setup with the convenience of a detachable aspiration unit, designed to optimize air quality and facilitate efficient removal of particulates.

Laboratory Cutting / Splitting Machine for Finished Rubber Samples Accessories

Why Opt for the Laboratory Cutting / Splitting Machine for Finished Rubber Samples?

Overview:

This Laboratory Cutting / Splitting Machine for Finished Rubber Samples offers the capability to generate samples with thicknesses tailored to customer specifications, utilizing finished products as a foundation. The process involves placing the designated segment between motor-driven feed steel rollers and a blade. The blade's position can be finely tuned with an accuracy of 0.01 mm, allowing for precise horizontal splitting.

Key Factors:

Impeccable Mechanical Construction: The machine features a high-quality mechanical design, ensuring robust and reliable performance.
Precision Sharpening: The micrometric drive-based sharpening mechanism guarantees accurate and consistent blade sharpening.
Variable Feed Speed: The feed speed is adjustable, accommodating various requirements and materials.
Integrated Lubrication: The integrated blade lubrication system further enhances the machine's efficiency and longevity.

Outcome: The Machine excels in splitting rubber or thermoplastic products with hardness ranging from 30 to 75 Shore A, consistently delivering exceptional results.
