| Capacity | 200kgf or 500kgf |
| Load resolution | 1/50,000 |
| Load accuracy | ±1.0% |

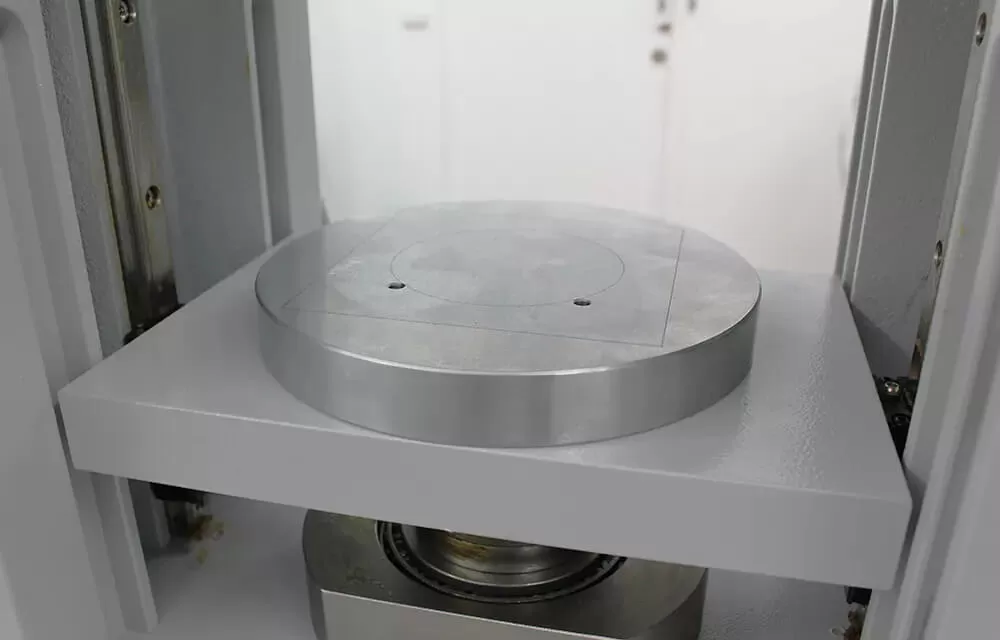

| Compression plate | Ø150mm |
| Space between compression plates | 120mm |
| Test speed | 12.5±2.5mm/min |
| Printer | Compact printer |
| Dimensions(W×D×H) | 55×45×73 cm |
| Weight | 68kg |
| Voltage | Single Phase, AC 220V, 2A (or specify) |
＊Product design and specifications are subject to change without notice.
Equipped with an advanced micro-computer control system, the RCT Testers provides precise control and enables automatic operation throughout the ring crush testing process.
The RCT Testers features a high-precision, motor-driven ball screw system to ensure stable and accurate operation of the compression plate during testing.
Built with a high-precision load transducer, the device accurately measures compression force for reliable test results.
RCT Ring Crush Tester - QualiRCT-Series is specifically crafted to measure the ring crush resistance of corrugated paper. With the addition of optional fixtures, it can also conduct fluted crush resistance, flat crush resistance, and adhesion strength tests. Featuring a dependable motor-driven ball screw system and a highly sensitive load cell, the QualiRCT-200 or QualiRCT-500 Ring Crush Tester accurately performs compression tests and promptly displays load measurements, making it a valuable tool for quality testing.
 |
 |
 |
The QualiRCT-200 or QualiRCT-500 Ring Crush Tester is designed to measure the ring crush resistance of corrugated and kraft paper with a thickness up to 1mm.
Ideal for assessing fluted crush resistance, flat crush resistance, and adhesion strength across various paper types, including corrugated and kraft paper, when equipped with optional fixtures.

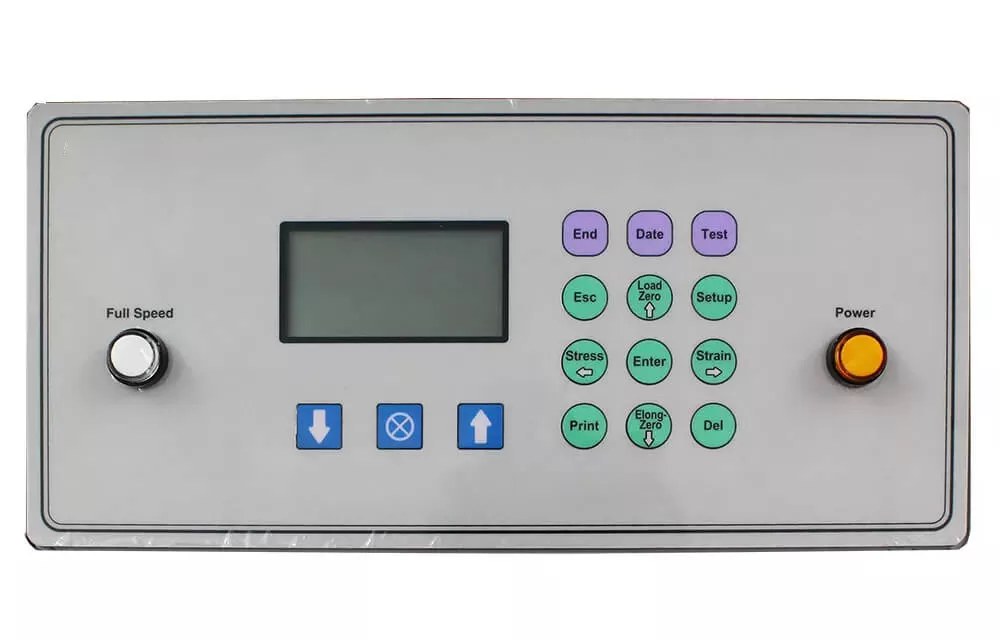

With an intuitive interface, the system allows operators to easily set up and operate the ring crush tester.
The QualiRCT-200 or QualiRCT-500 Ring Crush Tester uses a high-precision, motor-driven ball screw system to ensure accuracy and stability in ring crush tests.
Equipped with a micro-computer control system, the device performs tests automatically with reliable consistency and repeatability.
Quickly captures and displays compressive force data on a digital display, allowing for fast, clear results.
Offers valuable insights into material performance and properties, supporting manufacturers in enhancing material design during research and development.
Assists manufacturers in maintaining material quality and performance to meet specific production standards.
