Burst Strength Tester

Contact

Product code: YPWKF1QODG

Digital Burst Strength Tester measures the resistance of materials like base paper, corrugating paper, leather, and…

Burst Strength Tester QualiBurst-D Technical Specifications

Type		QualiBurst-DHP (High Pressure)	QualiBurst-DLP (Low Pressure)	QualiBurst-DT (For Textile)
Test speed		170 ± 15 ml/min	95 ± 5 ml/min	98 ± 4 ml/min
Pressure display		By digital touch panel
Capacity (kg/cm²)		75kg/cm²
Platen diameter	Upper	31.5 ± 0.05mm	30.5 ± 0.05mm	30.5 ± 0.05mm
Platen diameter	Lower	31.5 ± 0.05mm	33.1 ± 0.05mm	30.5 ± 0.05mm
Gear position		Pressurization, neutral, return
Dimension		53 × 33 × 58 cm
Weight around		60 kg
Voltage		Single phase 110~240VAC, 5A

Burst Strength Tester QualiBurst-D

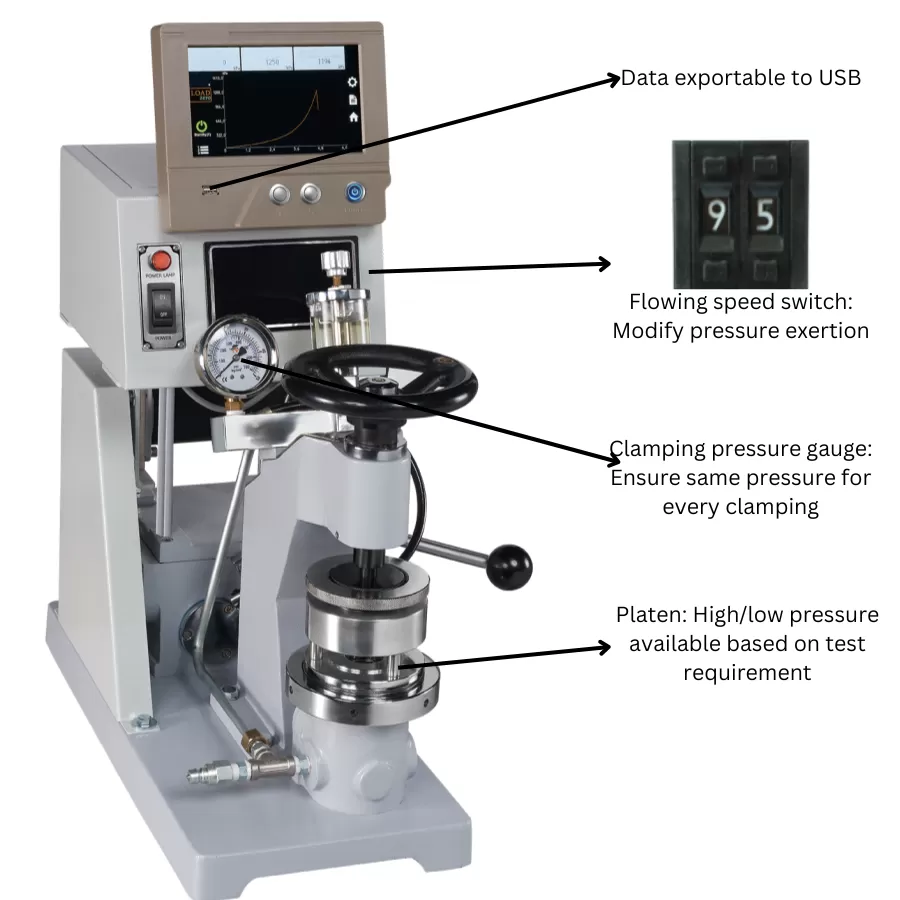

Digital Burst Strength Tester measures the resistance of materials like base paper, corrugating paper, leather, and synthetic leather. This advanced digital device features an automatic compensation system and sensor calibration for highly accurate test results. A real-time force graph displays current readings in multiple units, making data analysis easy and precise.

Standard Accessories - Display

Measurement Units: Supports both metric and imperial units

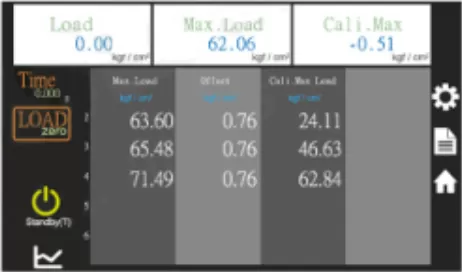

Graph Display: Real-time pressure and burst duration monitoring

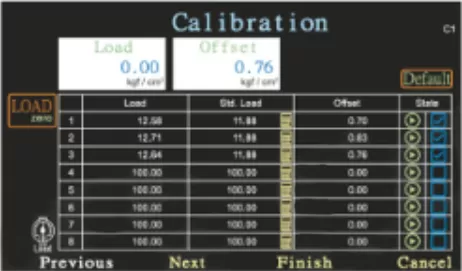

Compensation Mechanism: Automatically adjusts based on aluminum foil reference

Touchscreen Display: 7-inch intuitive touch screen for easy operation

Pressure Gauge: Powered by a high-precision electric sensor

Data Storage: Saves up to 50 test results

Data Export: USB export capability for efficient data transfer

Language Support: Available in English, and other languages

Accessory Name

Description

Burst Strength Tester

Rubber Film - Low Pressure

This accessory for the bursting strength test is placed beneath the test specimen plate. During pressurization, glycerin supports the rubber film until the test specimen breaks.

As a consumable, it may become fouled, fatigued, or damaged over time and should be replaced as needed.
Note: Low-pressure rubber film is suitable for ranges between 0~10 kgf/cm².

Burst Strength Tester

Rubber Film - High Pressure

This accessory for the bursting strength test is positioned beneath the test specimen plate. During pressurization, glycerin supports the rubber film until the test specimen breaks.

As a consumable, it may become fouled, fatigued, or damaged over time and should be replaced when necessary.
Note: High-pressure rubber film is suitable for ranges between 6~75 kgf/cm².

Burst Strength Tester

Aluminum Foil

Standard sheet for calibration.
Regularly use standard aluminum foil to check the condition of the testing machine. If the deviation is significant, it is advisable to replace the rubber film.
