| Test capacity | Max. 500g |
|---|---|
| Test angle | 1~90° adjustable |
| Test length | 1, 5, 10, 15, 20, 25, 50mm |
| Speed | 5° ~ 100° / sec (Adjustable) |

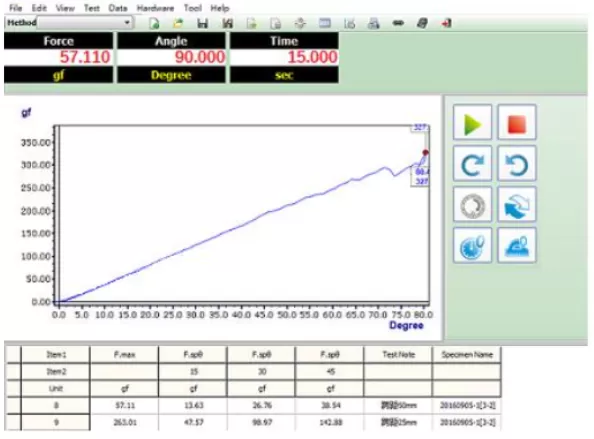

| Accessory | Software connection |
| Dimension | 35x40x33cm(H) |
| Weight | 20kg |
Paper Bending Resistance Tester - Stiffness Tester QualiBRT-500 is designed to measure the stiffness of small, thin, semi-rigid materials such as bristles and soft sheets. It bends the sample and records the force required, providing an accurate stiffness measurement. The recoil force of hair or other sample materials is measured through bending. Based on this property, the length can be set to 1, 5, 10, 15, 20, 25, or 50 mm. The test angle is adjustable from 1° to 90°. Select the appropriate distance and angle based on the material to achieve the maximum force value after bending.
