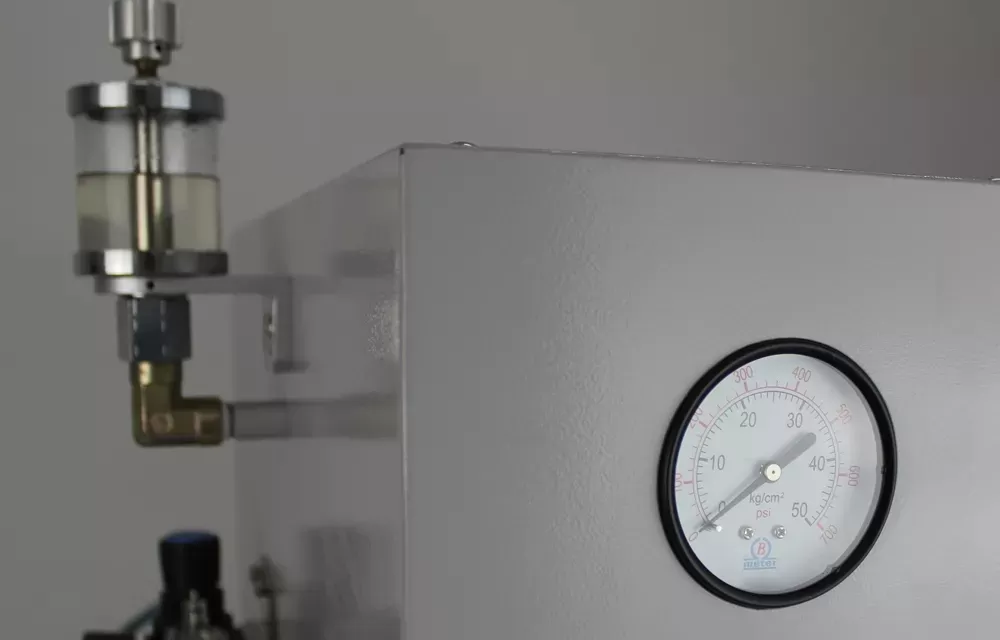

Burst Strength Tester for Paper, Textiles and Leather – Automatic Digital Mullen-type Technical Specifications
|
Model |
High pressure |
Low pressure |
|
|---|---|---|---|
|
Conformance |
GB/T 1539 |
ISO 2758, GB/T 454, TAPPI T403 |
ASTM D3786-2018, ASTM D3786M-18 |
|
Detector |
Infrared sensor |
||
|
Display |
LCD display |
||
|
Sensor |
Pressure transducer |
||
|
Capacity |
100 kgf/c㎡ |
16 kg.f/c㎡ |
|
|
Pumping rate |
170±15 mL/min |
95±5 mL/min |
|
|
Inner dia. of upper clamp |
31.5±0.1 mm |
30.48 mm |
31.5±0.1 mm |
|
Inner dia. of lower clamp |
31.5±0.1 mm |
33.1±0.1 mm |
31.5±0.1 mm |
|
Grip type |
Pneumatic grip |
||
|
Pressure range |
Pressure gauge :0 to 50 kg/c㎡ |
||
|
Compressed air≥ 6 kg/c㎡ |
|||
|
Hydraulic oil |
ASTM D3786-2018: 96% glycerin, 4% distilled water; other standards: 85% glycerin, 15% distilled water |
||
|
Dimensions (W×D×H) |
50×37×56cm |
||
|
Weight (approx.) |
89.5 kg |
||
|
Voltage |
1∮, AC 220V, 50/60Hz, 3A (110V Also Available upon Request) |
||
