Racing Thickness Gauge – Sonic Tester RX8-DL

Contact

Product code: M0AFBC4GEU

Racing Thickness Gauge – Sonic Tester RX8-DL is ideal for measuring the thickness of cylinder walls, head ports, decks…

Racing Thickness Gauge – Sonic Tester RX8-DL Technical Specifications

Part Number	Description	Certificate
Z-158-0004	RX8-DL Sonic Tester (PR-8V)
Operating Temperature	-10 to 60ºC (14 to 140ºF)
Power Supply	3 x AA batteries and via USB
Battery Life	Alkaline – 35 hrs, Nicad – 10 hrs and NI-MH – 35 hrs
Gauge Weight	383g (13.5oz) - including batteries
Gauge Dimensions	63.5 x 165 x 31.5mm (2.5 x 6.5 x 1.24”)
Packing List	Unit, Standard Transducer, Couplant, Manual, Plastic Carrying Case and AA Batteries. PC Engine Mapping Software and Transfer Cable

PHYSICAL
Weight:	13.5 ounces (with batteries).
Size:	2.5 W x 6.5 H x 1.24 D inches (63.5 W x 165 H x 31.5 D mm).
Operating Temperature:	-14° to 140°F (-10° to 60°C).
Keyboard:	Membrane switch with twelve tactile keys.
Case:	Extruded aluminum body with nickel-plated aluminum end caps (gasket sealed).
Display:	1/8in VGA grayscale display (240 x 160 pixels), viewable area 2.4 x 1.8in (62 x 5.7mm); EL backlit (on/off/auto invert).
ULTRASONIC SPECIFICATIONS
Measurement Modes:	Pulse-Echo (flaws, pits, corrosion). Echo-Echo (thru-paint-chassis).
Pulser:	150 volt square wave pulser.
Receiver:	Manual or AGC gain control with 50dB range, depending on mode selected.
Timing:	Precision TCXO timing with single shot 100MHz 8 bit ultra low power digitizer.
DISPLAY

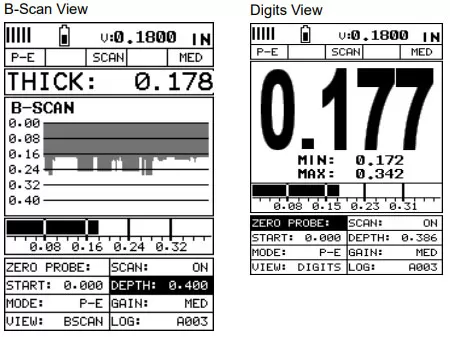

Display Views:	Large Digits: Standard thickness view; Digit Height: 0.700 in (17.78mm). B-Scan: Time based cross section view. Display speed variable (10 to 200 readings per second). Scan Bar: Speed 10Hz. Viewable in B-Scan and Large Digit views. Bar Graph: Indicates stability of measurement. Viewable in B-Scan and Large Digit views.
POWER SOURCE
Line Power:	USB-C to PC or power outlet.
Batteries:	Three AA cells. Alkaline - 35 hrs, Nicad - 10 hrs and NI-MH - 35hrs. Auto power off if idle 5 minutes. Battery status icon.
MEASURING
Range:	Pulse-Echo Mode (P-E) - (Pit & Flaw Detection) measures from 0.025 to 36 inches (0.63 to 914.4mm). Range dependent on material and transducer type. Echo-Echo Mode (E-E) - (Thru Paint & Coatings) measures from 0.100 to 4.0 inches (2.54 to 101.6mm). Range will vary depending on the coating thickness and material type.
Resolution:	+/- .001 inches (0.01mm).
Velocity Range:	0.0122 to 0.7300 inches/µs (309.88 to 18542 meters/sec).
Calibration:	Single and Two point calibration option, or selection of basic material types.
Units:	English & Metric
MEMORY
Data Structure:	Grid (alpha numeric) Engine Map (cylinder scans).
Screen Capture:	Bitmap graphic capture for quick documentation (.tif). OBSTRUCT to indicate inaccessible locations.
Capacity:	4Gb internal memory.
Data Output:	USB-C 1.1 PC & OSX connectivity.
TRANSDUCER
Transducer Types:	Dual Element (1 to 10MHz). Locking quick disconnect “00” LEMO connectors. Standard 4 foot cable. Custom transducers and cable lengths available.
CERTIFICATION
Calibration:	Factory calibration traceable to NIST & MILSTD-45662A.
WARRANTY
Warranty Period:	2 year limited.
REPLACEMENT
Replacement Models:	RX8-DL replaces PR-8V
FEATURES
Setups:	64 custom user-definable setups; Factory setups can be edited.
Selectable Transducers:	Selectable transducer types with built-in dual path error correction for improved linearity.
Alarm Mode:	Set Hi and Lo tolerances with audible beeper and visual LEDs.
Scan Mode:	Takes 250 readings per second and displays the minimum & maximum readings found when the transducer is removed.

Racing Thickness Gauge – Sonic Tester RX8-DL Features

Time-Based B-Scan: Displays a cross-section of the opposite surface, helping engine builders see the back surface contour in cylinders.

Multi-Mode (Echo-Echo): Measures chassis tubing with or without paint and coatings, with automatic gain control.

Precision Gain Adjustment: Five-position gain switch in 3dB (40-52dB) for better performance with noisy or hard-to-penetrate materials.

Versatile Calibration: Multiple calibration options for different applications.

Custom Storage: Save up to 64 custom setups, with factory presets for common uses.

Advanced Data Logging: Designed for engine builders and chassis inspectors, with cylinder mapping and alphanumeric file storage.

High-Speed Scanning: Captures up to 200 measurements per second, recording minimum and maximum thickness in real time.

Visual & Audible Alarms: Set high and low limits to alert inspectors when measurements exceed tolerance levels.

Model

RX8-DL

Display Mode

Material thickness digits display

B-Scan cross sectional display

Combined B-Scan and digits display

Coating Thickness Display

Scan Bar Display

Measurement Range

PE: 0.63 - 914.4mm (0.025 - 36")
EE: 2.54 - 101.6mm (0.100 - 4.0”)

Resolution

0.01mm (0.001”)

Velocity Range

305 - 18,542m/s (0.0120 - 0.7300in/μs)

Additional Features

High Speed Scan

10 - 200 readings per second

Pulser

150 volt square wave pulser

Gain

Manual or automatic gain control (AGC) with 50dB range

Timing

Precision temperature controlled crystal oscillator (TCXO) timing with single shot 100MHz 8bit ultra-low power digitizer

Memory and Data Logging

Grid (alpha numeric)
Engine Map (cylinder scans)Screen Capture: Bitmap graphic capture for quick documentation (.tif )
OBSTRUCT to indicate inaccessible locations

Calibration Options

1 - point

2 - point

Material selection

Velocity (speed of sound)

Transducer Probe Type

Dual Element

Transducer Frequency Range

1 - 10MHz

V-path / dual path error correction

Automatic

Probe Zero

Manual (via integrated probe disk)

Display

1/8in VGA grayscale display (240 x 160 pixels);
viewable area 2.4 x 1.8in (62 x 5.7mm)

Units (selectable)

mm or inches

LED Backlight

on/off/auto

Repeatability / Stability Indicator

Racing Thickness Gauge – Sonic Tester RX8-DL

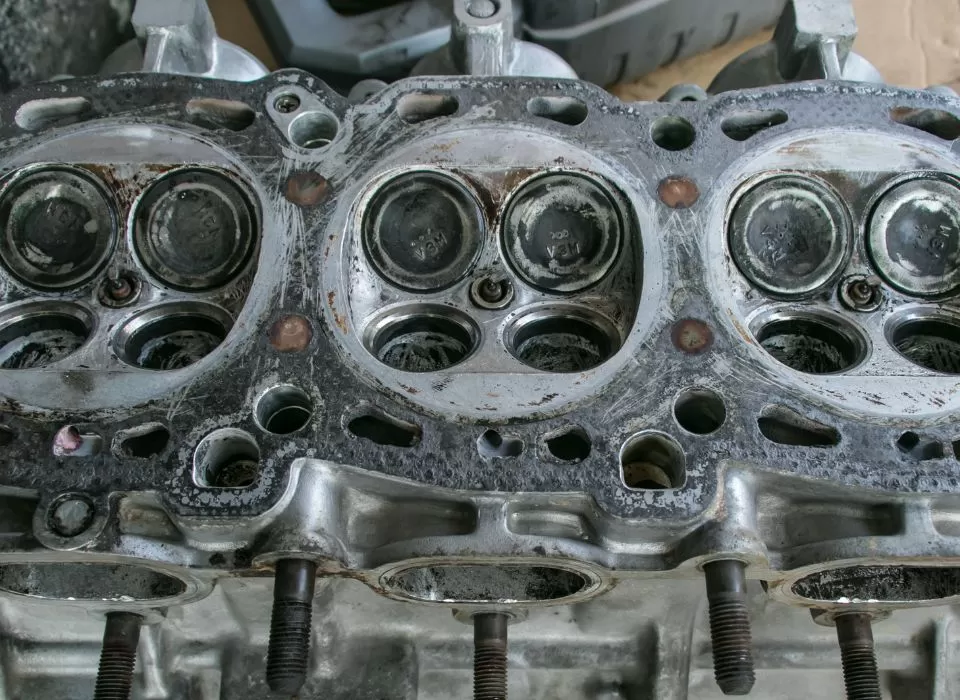

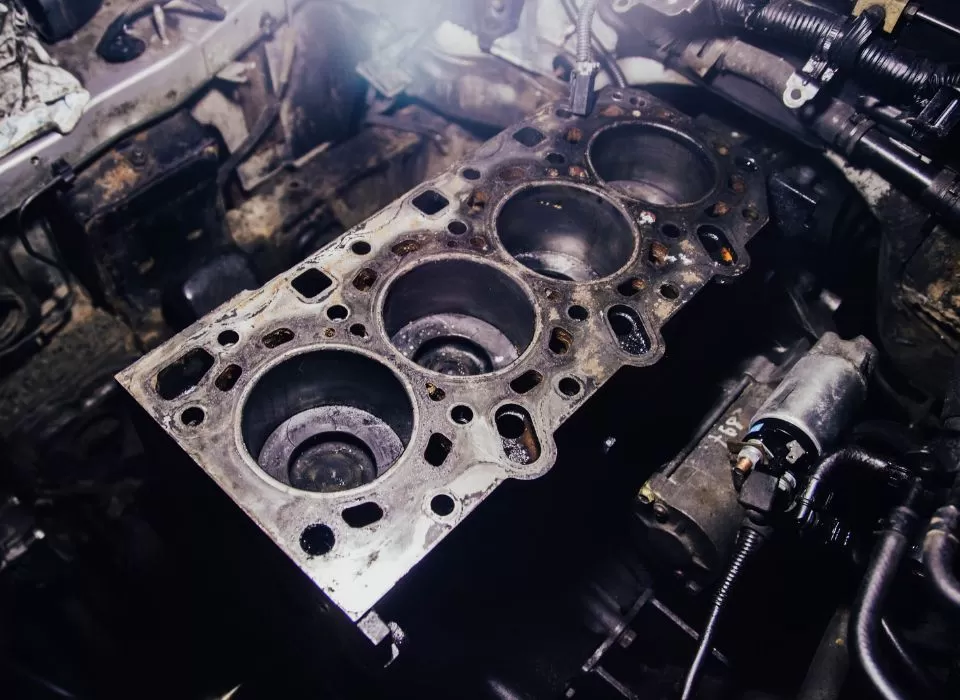

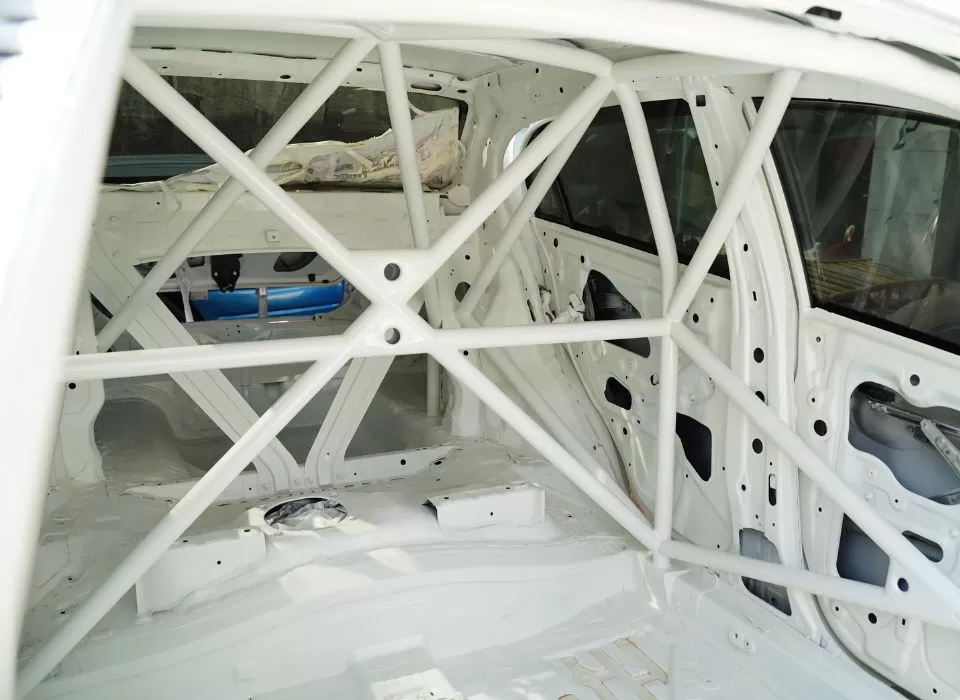

Racing Thickness Gauge – Sonic Tester RX8-DL is ideal for measuring the thickness of cylinder walls, head ports, decks, chassis tubing, body panels, and windshields. The RX8-DL’s time-based B-Scan feature provides a cross-sectional view, allowing users to assess the back surface profile while scanning cylinders.

Applications

Racing Thickness Gauge – Sonic Tester RX8-DL
