Fogging Tester

Contact

Product code: N1AJTIPKYG

Category: Automotive Testing

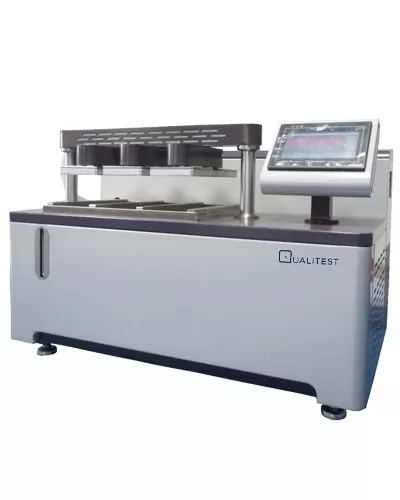

Fogging Tester QT-FT1 from Qualitest Automotive Testing range is used to determine the fogging characteristics of…

Our Fogging Tester complies with ISO 6452-2021, DIN 75201-2011, ISO 17071-2006, EN ISO 17071-2011, SAE J1756-2006, and QB/T2728-2005 standards for Determination of the fogging characteristics of trim materials in the interior of automobiles.

Fogging Tester QT-FT1 Technical Specifications:

Operating system	HMI+PLC
Test station	6
Temp. range of high temp. bath	Room temp. + 50°F to 302°F Room temp. +10°C to 150°C
Temp. display resolution	0.1°C
Temp. accuracy of high temp. bath	±0.5°C
Temp. range of cooling plate	50°F to 122°F 10°C to 50°C
Cooling plate temp. accuracy	±1°C
Cooling system	Compressor cooling system
Cooling plate loading system	Motorized
Dimension(W×D×H)	35.43 × 23.62 × 30.70 inches 90×60×78 cm
Power	1∮ AC220V 50Hz (or specify)

Specifications and content are subject to change without notice.

Fogging Tester Overview:

Fogging testers measure the tendency for plastic or elastomeric materials to volatize substances which can condense and collect on other surfaces when in use. These tests provide 2 methods for evaluating the likelihood of a material to leave a light scattering film on a glass surface (photometric method), or to deposit foreign material onto an aluminum foil surface (gravimetric method). The tests are used to evaluate materials to be used in automotive or other vehicle interiors.

To read the fogging test results, different methods can be used. You can weigh the sample to determine the mass of condensable constituents (gravimetric method). Or you can also use a gloss meter or a hazemeter for determination of fogging value.
