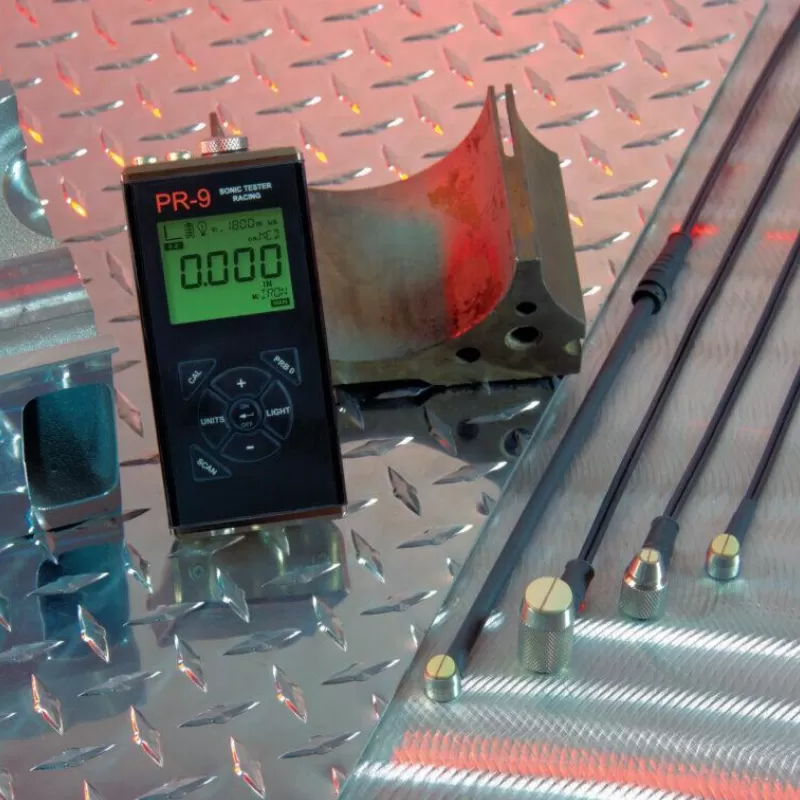

Racing Thickness Gauge Sonic Tester

Contact

Product code: A048CGSV3W

Racing Thickness Gauge Sonic Tester, specifically designed for the automotive racing sector. The PR-9 sonic tester is a…

Racing Thickness Gauge Sonic Tester Specifications

Physical

Weight: 11 ounces (w/batteries)
Size: Width (2.5 in / 63.5 mm)
Height (5.17 in / 131.3 mm)
Depth (1.24 in / 31.5 mm)
Operating Temperature: -22 to 167F (-30 to 75C).
Case: Extruded aluminum body
with nickel-plated aluminum
end caps (gasket sealed).

Keypad

Sealed membrane that is
resistant to both water and
petroleum products.
Nine tactile-feedback keys.

Transducer

Dual element (transmit and receive).
1 to 10 MHz frequency range.
Locking quick disconnect Lemo connectors.
4 foot cable.
Custom transducers available for special applications.

Power Source

Two 1.5V alkaline, 1.2V NiCad, or 1.5V
Lithium AA cells.
Typically operates for 45 hours on
alkaline and 23 hours on NiCad.
Low battery indicator on display. Auto
shut-off after 5 minutes of inactivity.

Display

Multi-function 7 segment 4.5 digit
liquid crystal display with 0.500 in
digit height. Two 0.125 in14 segment
fields for labels and values, and one 7
segment field for labels and values.
Additional icons to indicate features
and modes.
Backlight is selectable on/off/auto,
and selectable brightness (Lo, Med, Hi)
options.
Bar graph indicates repeatability of
measurement.

Certification

Factory calibration traceable to NIST &
MIL-STD-45662A.

Warranty

5 year limited.

Measuring

Range:
Measures from 0.025 to 36.00 inches
(0.63 to 914.4 millimeters). Range
dependent on material and transducer
type.
Automotive Applications:
0.050 to 1.500 inches in casted
materials.
Units:
English & Metric
Resolution:
0.001 inches (0.01 millimeters)Velocity Range:
0.0120 to .7300 in/μs
(305 to 18,542 m/sec)
PRF: 200Hz
Display Update Rate: 10Hz
High Speed Scan:
Display the lowest measurement found
during a scan. Scan speed at 100Hz.
One or Two point calibration option.

Racing Thickness Gauge Sonic Tester by Qualitest

Introducing the Racing Thickness Gauge Sonic Tester, specifically designed for the automotive racing sector. The PR-9 sonic tester is a specialized tool widely utilized in measuring the thickness of various components within the racing industry, including cylinder walls, head ports, decks, chassis tubing, body panels, and windshields.

One notable feature is the dual-element probe style, offering the capability to identify blind surface corrosion or deterioration on concealed surfaces in the water jacket area before initiating cylinder or port boring. The high-speed scan function allows for swift measurements, capturing 100 data points per second and significantly saving time when scanning an entire cylinder.

To use the PR-9, simply drag the probe from the bottom of the cylinder, at a designated clock position, up to the deck area to pinpoint the minimum thickness. Once the scan is complete, users can deactivate it and precisely locate the area with the minimum thickness.

Enhancing accuracy, the PR-9 provides three material calibration options: single point, two-point, and target velocity. For manual report creation, cylinder wall mapping software is available. As a testament to our confidence in the product's quality, we offer a 5-year limited warranty.

Invest in the PR-9 Racing Thickness Gauge Sonic Tester for precise and efficient measurements, ensuring optimal performance in the demanding world of racing.
