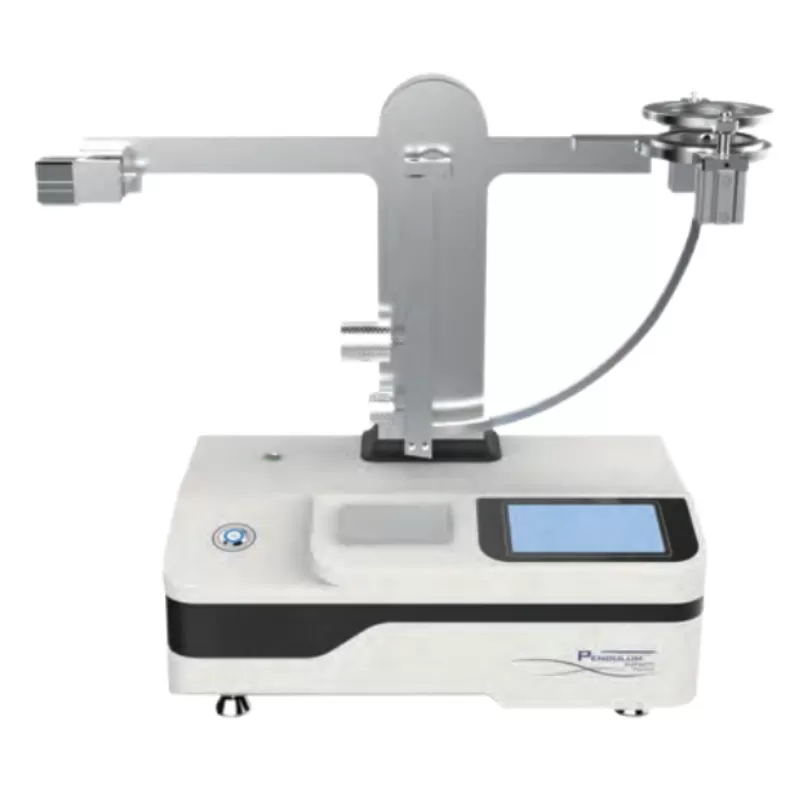

Pendulum Impact Tester for Plastic Film Q-FPIT is specifically designed for evaluating the impact resistance of plastic film, thin film, and composite film. With precision electronic measurement up to 0.001 J, it ensures accurate results. Ideal for various applications, including testing food and drug packaging bags with PE/PP composite film, aluminum plating film, aluminum-plastic composite film, nylon film, and more.
| Item | Technical Parameters |
|---|---|
| Maximum impact energy | 5J (8J optional) |
| Test precision | 0.001 J |
| Pendulum angle | 90° |
| Pendulum swing radius | 285 mm |
| Size of the impact head | Φ19 mm, Φ25.4 mm |
| Size of clips | Φ60 mm, Φ89 mm |
| Size of the test sample | 100 mm×100 mm |
| Instrument size | 773 mm×378 mm×606 mm |
| Power | 75 W |
| Power supply | AC 220 V, 50 Hz (110V available upon request) |
Precision Electronic Measurement: Achieve unparalleled test accuracy with electronic measurement, providing results with precision up to 0.001 J. This ensures the utmost accuracy in experimental outcomes.
User-Friendly Color Touch Screen: The main unit features a vibrant color touch screen, enhancing user convenience during test operations and data viewing. The intuitive interface facilitates a seamless testing experience.
Pneumatic Clamping and Release: The sample is securely pneumatically clamped, while the pendulum is pneumatically released. An additional horizontal adjustment auxiliary system effectively minimizes human error, ensuring consistent and reliable testing.
Adjustable Range: The testing range is easily adjustable, and electronic measurement capabilities enable effortless and accurate testing under various conditions. This adaptability ensures comprehensive testing scenarios.
Automatic Data Analysis and Presentation: The instrument automatically analyzes test data and visually presents results to the user. This feature not only enhances user convenience but also provides statistical insights into the test outcomes.
One-Key Test Operation: Streamline your testing process with automatic operation through a simple one-key test function. This straightforward and convenient operation enhances overall testing efficiency.
Report Editing Functionality: Tailor your reporting to specific needs with the report editing function. Customize the content of the experimental report based on the actual situation, providing flexibility in documentation and analysis.
Introducing the Q-FPIT Pendulum Impact Tester for Plastic Film, a meticulously crafted and user-friendly testing apparatus designed in strict accordance with ASTM D3420 and other international standards.
This advanced Pendulum Impact Tester is specifically tailored for evaluating the impact resistance of various materials, including plastic film, composite film, metallic foil, and more. With applications ranging from scientific research and academic education to laboratory use, research institutes, and quality control departments, the Q-FPIT is a versatile solution for precise and reliable testing.
Operating through a semi-globular impact head, the instrument efficiently impacts and fractures the sample at a defined ram speed. This action measures the consumed energy of the impact head, utilizing it to estimate the energy value representing the pendulum impact resistance of the film sample.
The Q-FPIT strictly adheres to industry-leading standards such as ASTM D3420 ensuring its reliability and accuracy in assessing the impact resistance of plastic films and related materials. Elevate your testing capabilities with the Q-FPIT Pendulum Impact Tester for Plastic Film
| Film |  |
It is suitable for testing the resistance of plastic film, thin film and composite film to pendulum impact. Such as food and drug packaging bags with PE/PP composite film, aluminum plating film, aluminum plastic composite film, nylon film, etc |
|---|---|---|
| Paper, Sheet Testing |  |
It is suitable for testing the impact resistance of paper and paperboard, such as aluminized paper for cigarette packaging and aluminum-plastic paper composite material for Tetra Pak packaging. |
