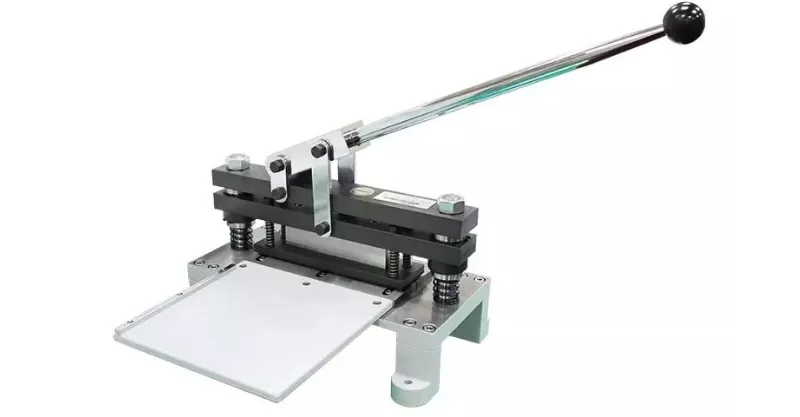

Paper Ring Crush and Tensile Test Specimen Cutter

Contact

Product code: FTDH03PSJU

Specially cut specimens are needed for Paper Ring Crush, Tensile or other tests. This Paper Ring Crush Test Specimen…

Paper Ring Crush and Tensile Test Specimen Cutter Technical Specifications:

Model	Q-PSCutter-A	Q-PSCutter-B
Standard Specimen Dimensions	(JIS P8126) standard value: length 149.9~152.4, width 12.7±0.1mm (CNS C2956) standard value: length 152.4±0.13mm, Width 12.7mm (GB/T 2679.8) Standard value: length 152.0±0.2mm, width 12.70±0.1mm	(TAPPI-T409) Standard value: 250mm long, 15mm wide (JIS-P8113) Standard value: 250±10mm long, 15±0.1mm wide
Tests	For paper ring crush test	For paper tensile
Dimensions	67×45×47cm
Weight	40kg

Features of Paper Ring Crush and Tensile Test Specimen Cutter

Efficient preparation

The sample can be prepared quickly and accurately, which improves the efficiency of the preparation process and saves time and labor costs.

Standard size specimen

It ensures that the cut specimens have standardized dimensions, which is crucial for the comparison and accuracy of test results.

Precision cutting

The precision blade combination ensures flat specimen edges, which helps improve test accuracy and reliability.

Paper Ring Crush and Tensile Test Specimen Cutter

Specially cut specimens are needed for Paper Ring Crush, Tensile or other tests. This Paper Ring Crush Test Specimen Cutter’s blade combination is precise, allowing for the smoothing of the sample's edge.

Ring Crush Test /Tensile Sample Cutter - Principle

The ring crush / tensile specimen cutter is a device specifically designed to cut specimens needed for ring crush or other tests.

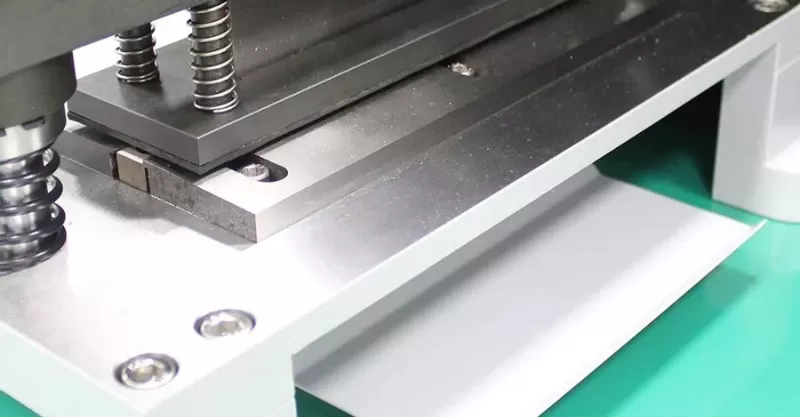

Precise Blade Combination: It features a precise blade combination to ensure the specimen edges are flat and standardized, enhancing the accuracy and reliability of the test.

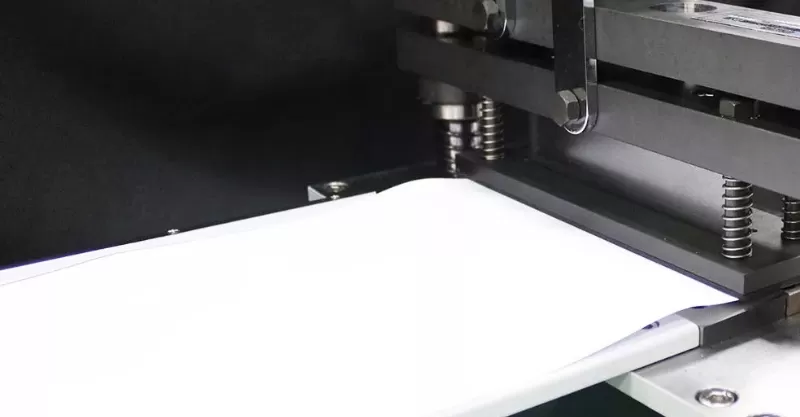

User-friendly: Users simply need to push the material under the blade and press the handle to complete the cutting process. This straightforward operation enhances usability.

Fast and Efficient: This Paper Ring Crush and Tensile Specimen Cutter prepares standard-size specimens, saving time and improving preparation efficiency.

Durable Materials and Construction: These Cutters typically utilize durable materials and robust construction to ensure stability and reliability over time.

Compliance with Industry Standards and Regulations: It ensures products adhere to relevant industry standards and regulations, minimizing risks and enhancing market compliance.

The ring crush / tensile specimen cutter is easy to operate, enabling quick and accurate specimen preparation. Its precise blade combination ensures the accuracy and consistency of cut specimens, crucial for reliable test results.
