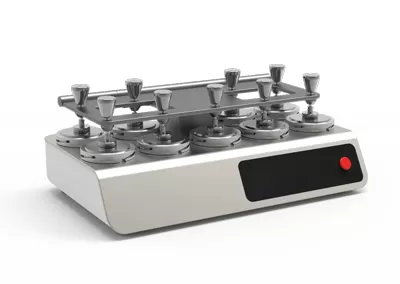

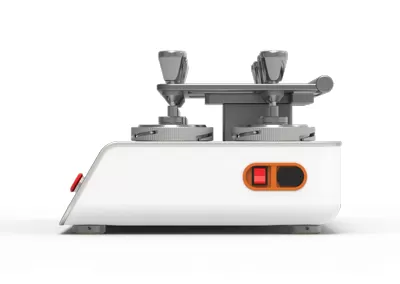

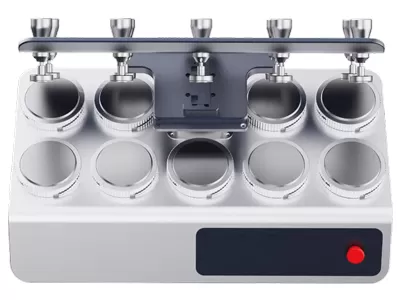

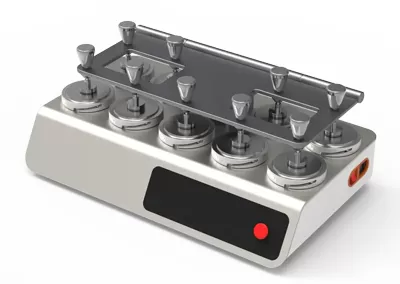

Martindale Abrasion Tester - Smartindale

Contact

Product code: VCEQ6KDX01

Martindale Abrasion Tester - Smartindale is designed for fabric abrasion and pilling tests. It uses a digital algorithm…

Martindale Abrasion Tester - Smartindale Technical Specifications

Power 220/110V 50/60Hz
Weight 90kg
Dimension 510*850*300 mm(W*L*H)

Abrasion test
Max stroke of movement	60.5+/-0.5mm
Weight of holder and spindle	198+/-2g
Pilling test
Max stroke of movement	24+/-0.5mm
Weight of holder and spindle	155+/-1g

Accessories
Fuse tube	2pcs2pcs
Foam wool	9 pcs Φ38 mm
Wool felt	18 pcs Φ90 mm, Φ140 mm
Wool abrasive	9 pcs Φ140 mm
Sampling plate	3 pcs Φ38 mm,Φ90 mm, Φ140 mm
Sampler	1 pc for pilling test
Sampler	1 pc for abrasion test
Press	1 pc Φ126mm, 2.5kg
Fixture 1	9 sets for pilling test
Fixture 2	9 sets for abrasion test
Weight 1	9 sets 12Kpa
Weight 2	9 sets 9Kpa
Rubber ring	9pcs
Test pen	1pc
Connection shaft	9pcs for pilling test
Connection shaft	9pcs for abrasion test
Stainless steel ring	9pcs 260g

Optional Accessories
EMPA990 rating chart card	1 set knitted + Woven
SM50 rating chart card	1 set IWS + ASTM
SM25 abrasion resistant wool cloth	1 pack 1.6 X 5m/pack
Sm26 woven wool felt	1 box 24 pcs/box Φ140mm
Sm26 woven wool felt	1 box 24 pcs/box Φ90 mm
SM28 polyurethane ether foam	1 box 250 X 200mm/pc, 25pcs/box

Optional Standards

BS EN 388-2016+A1-2018: Protective gloves for mechanical hazards;
SATRATM31 A/B: Abrasion Resistance Test for Leather;
PUMA;
BS EN 16094-2012: Laminated wood flooring, test method for the determination of micro-scratches;
ISO 20344-2021 Item 6.12: Personal protective equipment, test methods for footwear and boots;
BS EN 13520-2002: Test methods for footwear, uppers, linings, and insoles, abrasion resistance;
ISO 5470-2-2021: Rubber or plastic-coated fabrics, determination of abrasion resistance.

Martindale Abrasion Tester - Smartindale Features

The Lissajous curve is calibration-free, making it a more reliable test: Smartindale operates with an exclusive and patented digital algorithm that powers dual servo motors and precision slide rails, replacing the traditional mechanical analog drive to generate a perfect Lissajous curve. After more than 10 million cycles (equivalent to three years of continuous use) of ultra-high intensity friction testing with rubber simulation specimens and double weights, the Lissajous curve remains accurate and perfect, ensuring more reliable testing.

Can be connected to ERP or LIMS through an APP, more smart: Smartindale can be connected to the app on your smartphone, allowing you to set parameters and monitor the test status. After the test is completed, the sample information, test process, and results can be uploaded to ERP or LIMS systems, enabling smart testing that meets the requirements of laboratory management systems like ISO17025, CNAS, or ILAC. This makes the entire testing process more convenient, transparent, and efficient.

One-touch switching between abrasion and pilling testing, for greater efficiency: You can switch test modes (e.g., from abrasion to pilling) directly on the control panel without needing to remove the cover plate or change the pin position.

User-friendly design: The flip-up guide plate can be lifted with one hand, making it convenient for loading and removing samples. The cover plate has a cushioning function when it falls, preventing damage to the machine and ensuring greater safety for the operators.

Martindale Abrasion Tester - Smartindale

Martindale Abrasion Tester - Smartindale is designed for fabric abrasion and pilling tests. It uses a digital algorithm to generate a Lissajous curve and then drives the friction mechanism, ensuring precise operation without the need for calibration. You can effortlessly switch between test modes, such as from the abrasion test to the pilling test, with a single click, without having to change any pins.

Additionally, you can control and monitor the Smartindale using the app on your smartphone. The test data can be uploaded to ERP or LIMS systems, enabling smart testing capabilities.

The device can test the abrasion and pilling resistance of various materials, including cotton, linen, silk woven fabrics, other textiles, film materials, knitted fabrics, woolen fabrics, artificial leather, synthetic leather, gloves, and labor protection materials. It is compatible with over 20 international standards such as ISO 12945-2-2020, ISO 12947-2-2016, BS EN 530-2010; ASTM D4970/4970M-22, and more.
