Böhme Abrasion Tester

Contact

Product code: WS7QXAOP18

Category: Abrasion Testing , Rock Testing

Böhme Abrasion Tester is designed to evaluate the abrasion resistance of natural stone and various construction…

Böhme Abrasion Tester Technical Specifications

Specification	Details
Grinding wheel diameter	Ø750mm
Grinding wheel stiffness	190HB~220HB
Grinding wheel rotate speed	(30±1)r/min
Test track diameter	Ø220mm
Abrasive load on specimen	294N±3N
Revolution counter range	0~9999
Specimen size	(71±1.5)mm×(71±1.5)mm
Voltage	Three-phase four-wire 380V 50Hz
Power	0.55kW
Dimensions	830mm(L)×1070mm(W)×800mm(H)
Weight	160kg

Böhme Abrasion Tester

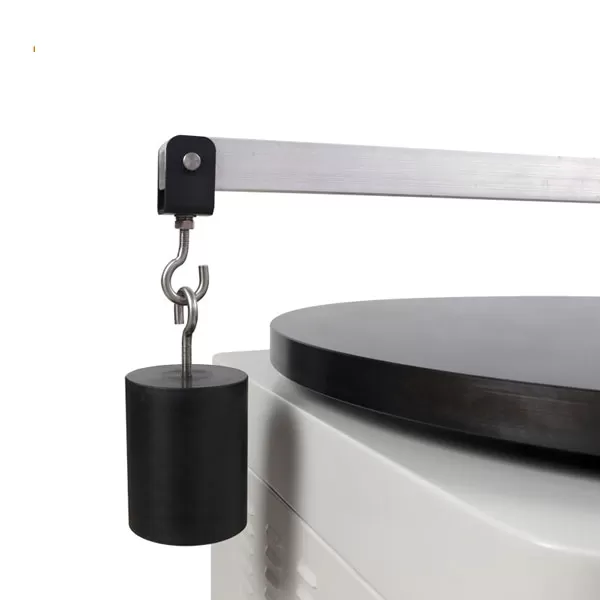

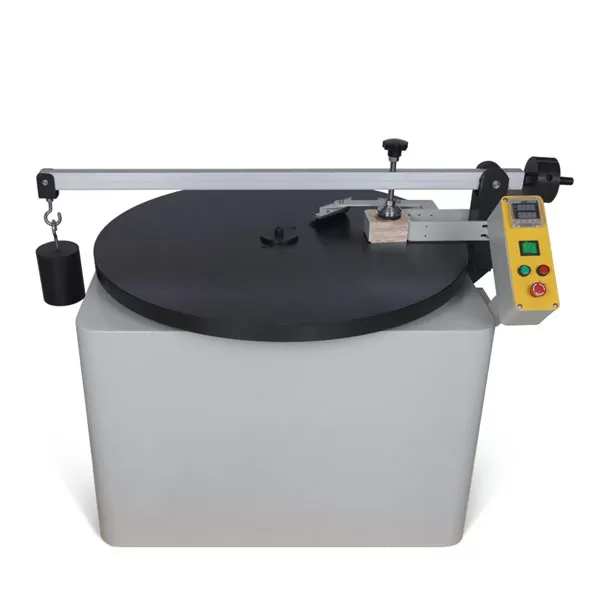

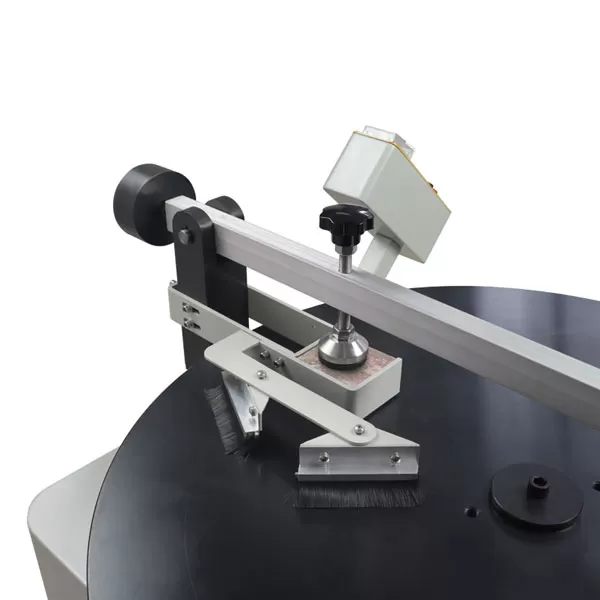

Böhme Abrasion Tester QualiBöhme is designed to evaluate the abrasion resistance of natural stone and various construction materials, including artificial stone, glass ceramics, and construction bricks. During testing, the material sample is placed on the device's test track. A rotating grinding wheel applies an abrasive load of 294N±3N to the sample for a specified number of cycles, ensuring reliable and consistent results.
