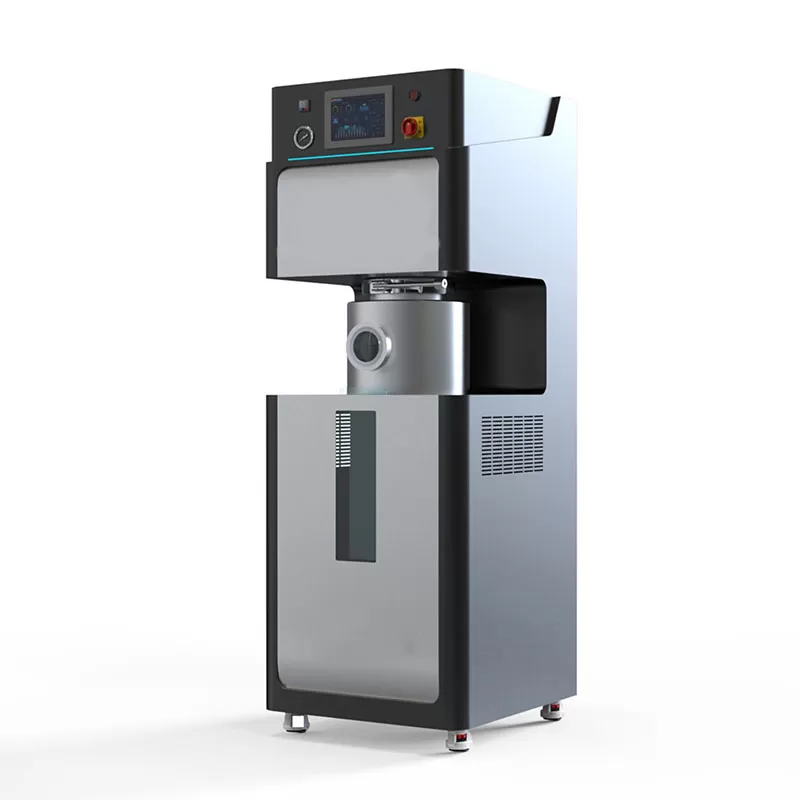

High-Temperature High-Pressure Explosion Limit Tester Technical Specifications
| Explosion Container | 5L, aspect ratio (length to diameter) remains the same |
|---|---|
| Container Pressure Resistance | Design pressure of 5.0 MPa at 25°C |
| Sphere Material | 316L stainless steel |
| Pressure Sensor | Accuracy of 0.05% |
| Ignition Method | Electrostatic ignition (15 kV, 0.5s) |
| Gas Distribution Method | Partial pressure gas distribution |
| Stirrer | 20-800 rpm |
| Temperature Range | Up to 250℃ |
| Dimensions | 450mm (width) x 1250mm (height) x 420mm (depth) |
| Weight | 120 KG |
| Power Requirement | 220V, 50Hz, 500W (110V is also available) |
| Gas Requirement | Compressed air from an air compressor (oil-free and dry) |
