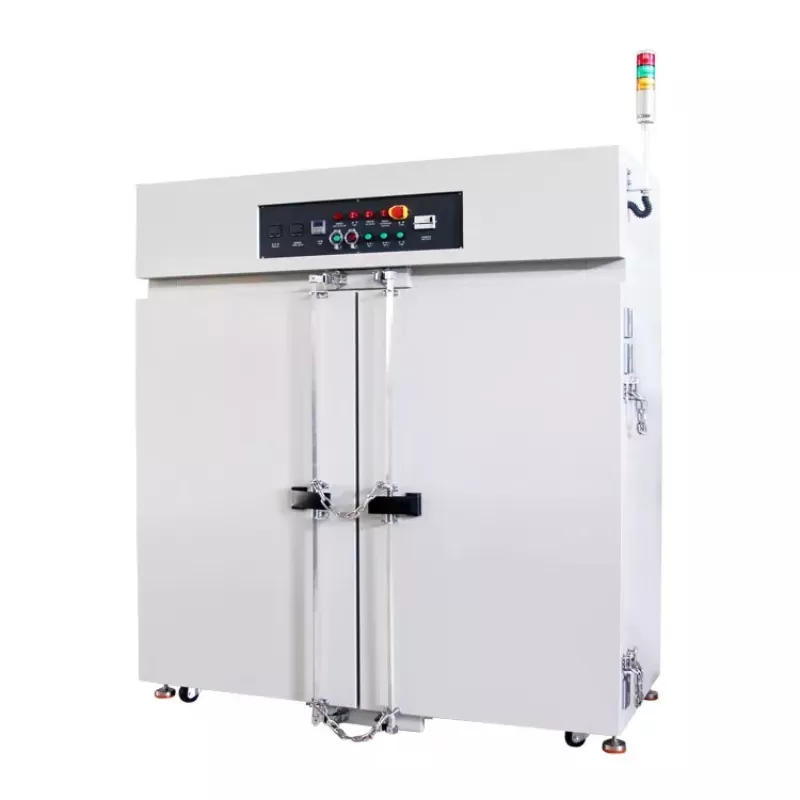

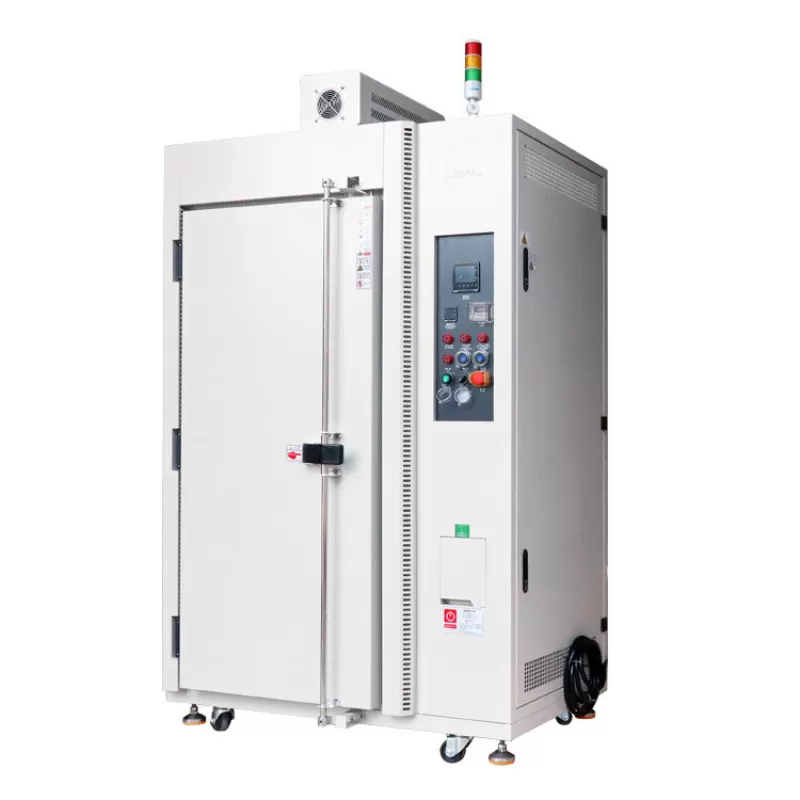

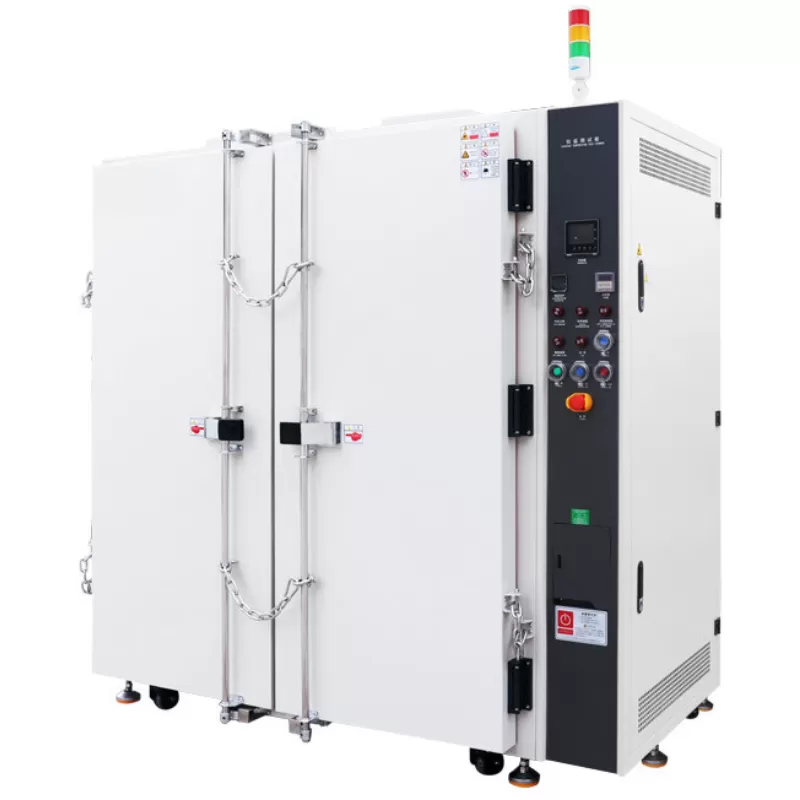

Precision Constant High Temperature Oven

Contact

Product code: EU51Q9HKDB

Constant temperature oven is specifically designed for lithium-ion battery and battery core vacuum baking. Simply place…

Precision Constant High Temperature Oven Technical Specifications:

Model		QT-CHTO-1000	QT-CHTO-1800	QT-CHTO-2520	QT-CHTO-3600	QT-CHTO-5000	QT-CHTO-8000
Temperature	Temperature Range	RT°C~300°C (A:25C~200°C;B: 25°C~300°C;)
	Temperature Fluctuation	±0.5°C
	Heating Rate	25.0°C~100.0°C within 8 mins 6.0~10.0°C/min
	Temperature Uniformity	±2.0°C (25.0°C~100.0°C)
		±2.5°C (100.1°C~200.0°C)
Material	Internal Material	Adopts 1.2mm thickness stainess steel(SUS304)
	External Material	Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying
	Heat Insulating Material	100mm thickness mineral wool
	Fan	Centrifugal blower
	Heater	Nickel chromium alloy heating wire
Size	Inner size(mm) WHD	^{100010001000}	^{100015001200}	^{120015001400}	^{120020001500}	^{150018001850}	^{200020002000}
	Outer size(mm) WHD	^{120015501450}	^{120020001650}	^{140020001850}	^{140023501950}	^{170021502300}	^{230024502600}
	Volume (L)	1000L	1800L	2520L	3600L	5000L	8000L
Power supply		380V AC 50/60HZ
Controller		Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700

Characteristics of the Constant Temperature Oven:

Continuous uninterrupted working time of ≥1000 hours under test conditions of 140°C.

Equipped with an explosion-proof pressure relief port that automatically opens when pressure sharply increases.

Smoke flame sensor detects smoke and flame, triggering the fire extinguishing system to suppress fires within the chamber.

Cabinet features an explosion-proof safety design, including an explosion-proof chain, glass explosion-proof membrane, and insulation layer using aluminum silicate insulation material.

Constant Temperature Oven for Lithium-Ion Battery and Battery Core Vacuum Baking:

Precision Constant High Temperature Oven

Our constant temperature oven is specifically designed for lithium-ion battery and battery core vacuum baking. Simply place the pole piece or battery core into the oven, set the desired baking process time on the user-friendly interface, and press the start button to initiate the baking process. The equipment automatically performs vacuuming and nitrogen filling according to the process settings.
