Name: Wavelength Dispersive X-Ray Fluorescence Spectrometer QualiX-W2
SKU: HCJG9NSOFP
Availability: InStock
Rating: 5 (1 reviews)

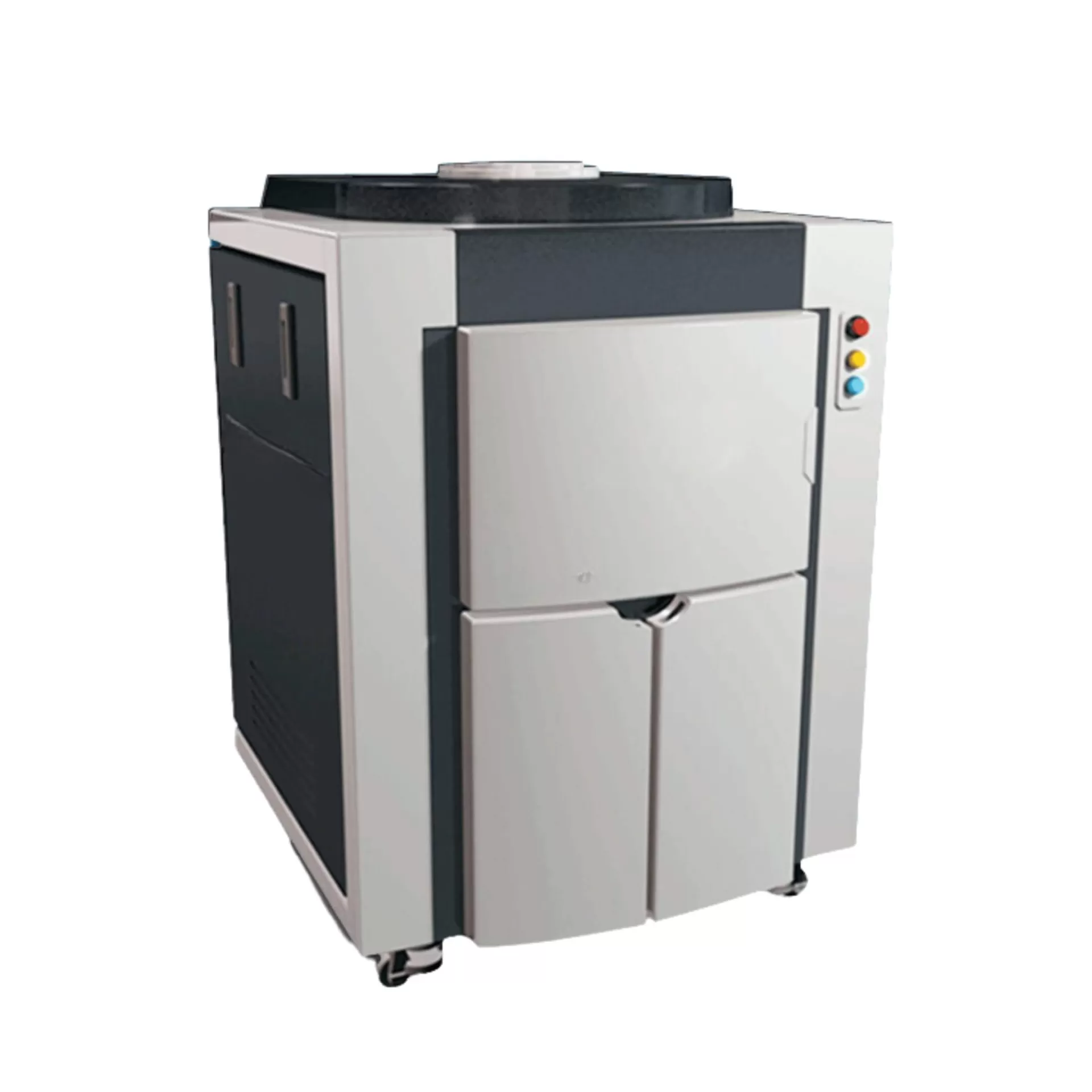

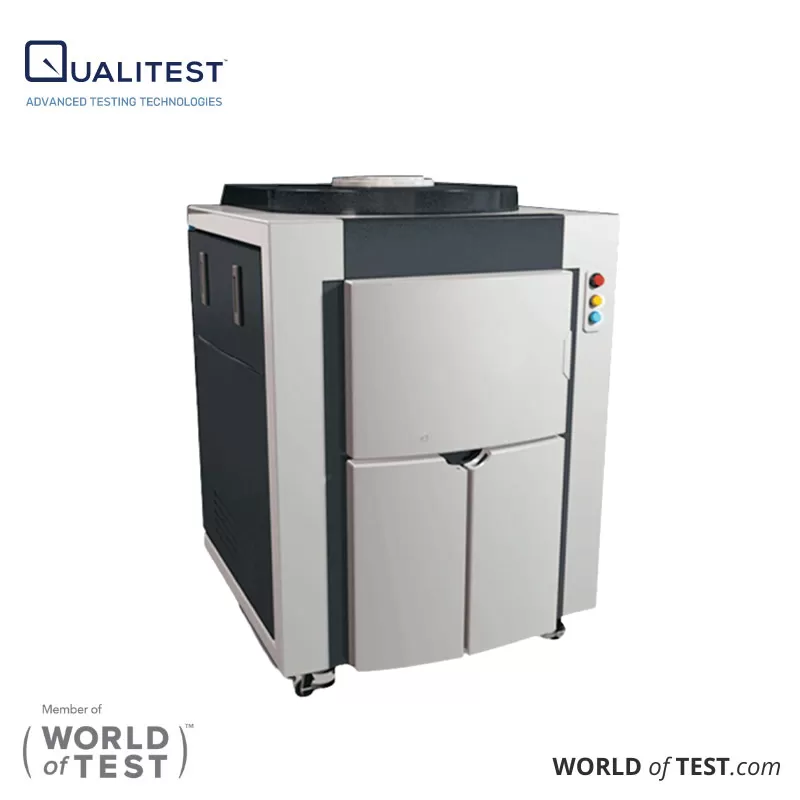

Wavelength Dispersive X-Ray Fluorescence Spectrometer QualiX-W2

Contact

Product code: HCJG9NSOFP

QualiX-W2 Compact Multi-Channel X-Ray Fluorescence Spectrometer is designed with 10 fixed light diffraction channels.…

Wavelength Dispersive X-Ray Fluorescence Spectrometer QualiX-W2 Technical Specifications

High Voltage Supply: 400W (50KV, 8mA)
X-Ray Tube: 400W thin Be end window X-ray tube by Varian, Rhodium anode (Palladium anode optional)
12-Hour Tube Voltage & Current Stability: Within 0.05%
Measurable Elements: 10 user-defined elements from Sodium (Na) to Uranium (U)
Detector: Gas flow proportional detector and sealed proportional detector; 10 paths with 1024-channel independent pulse height analyzer
Vacuum System: Independent pumping station for easy maintenance, achieving a vacuum level lower than 8Pa
Gas Flow System: High-accuracy gas density stabilizer with pressure stability up to ±0.003 KPa
Pre-Amplifier: High-speed pre-amplifier circuit enhances analysis efficiency and accuracy
MCA: Digital Multi-Channel Analyzer (MCA) significantly improves analysis accuracy
AC Power Supply: 2 sets of 1KVA AC purified stabilized voltage power supplies
Analysis Accuracy: Percentage content ≤0.05% over 24 hours
Single Sample Measurement Time: Including sample exchange and vacuum pumping, ≤3-5 minutes
Temperature Control Precision: ±0.1°C in constant temperature chamber

Configurations:

P10 Gas (90% Argon + 10% Methane Mixture): 1 bottle of gas is included.
Vacuum Pump: High-quality vacuum pump made in-house
Vibromill: Recommended options available or can be self-purchased
Sampling Machine: Recommended options available or can be self-purchased
Fusion Machine: Recommended options available or can be self-purchased

Wavelength Dispersive X-Ray Fluorescence Spectrometer QualiX-W2 Features

Performance and Characteristics:

Rapid and Non-Destructive Analysis: Efficiently analyzes both powder and lump samples without causing any damage.

Versatile Analyzer: Quickly processes compact powder, fused beads, and lump materials.

Enhanced Efficiency: The multi-channel digital MCA significantly improves measurement efficiency, aiding in instrument debugging and failure diagnosis, and enhancing measurement accuracy and stability.

Key Advantages:

Higher X-Ray Power

Increased Measurement Precision

More Stable Measurement Data

Higher Excitation Efficiency

Lower Detection Limit

Wavelength Dispersive X-Ray Fluorescence Spectrometer QualiX-W2

QualiX-W2 Compact Multi-Channel X-Ray Fluorescence Spectrometer is designed with 10 fixed light diffraction channels. It allows for the simultaneous analysis of 10 user-defined elements ranging from Sodium (Na) to Uranium (U). The standard configuration includes elements such as sodium (Na), magnesium (Mg), aluminum (Al), silicon (Si), sulfur (S), chlorine (Cl), potassium (K), calcium (Ca), iron (Fe), and phosphorus (P) or titanium (Ti) as an option. This instrument is an excellent quality control solution for both large and medium-sized businesses.

Application Fields
