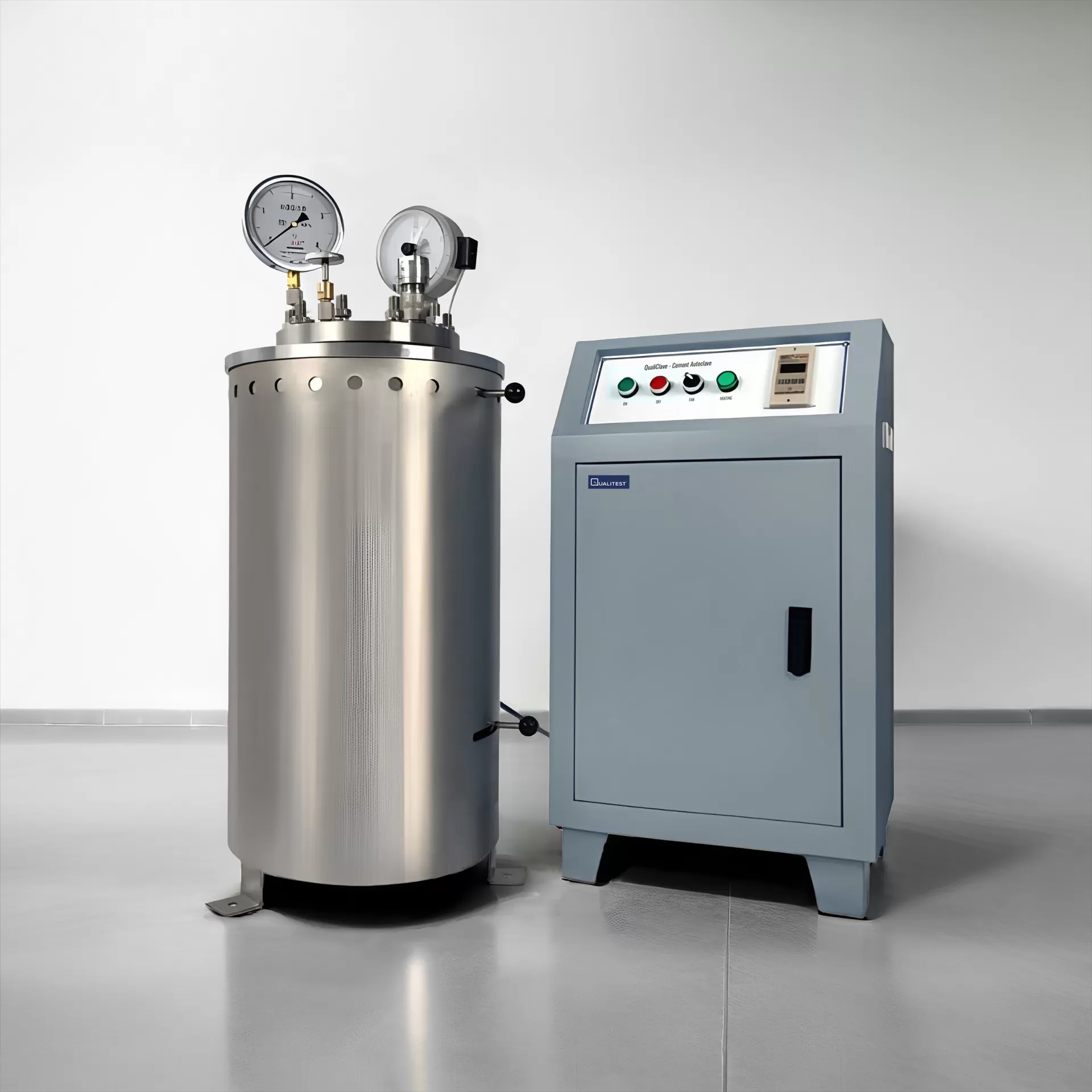

Cement Autoclave – QualiClave Technical Specifications
| Specification | Details |
|---|---|
| Volume of the autoclave | ≈8L |
| Inside diameter of the autoclave | Φ149 mm |
| Maximum Working Pressure | 2.2 MPa (can be adjusted manually) |
| Standard Boost Time (0~2±0.05Mpa; normal temperature~215.7±1.3℃) | ≈45min |
| Fluctuation range of pressure automatic control | ≯ ± 0.05 MPa |
| Pressure Holding Time Setting | 3 hours (user-adjustable) |
| Safety Temperature Setting | 220°C |
| Rated Voltage | 220V (110V is also available) |
| Rated Power | 1200 + 600W |
