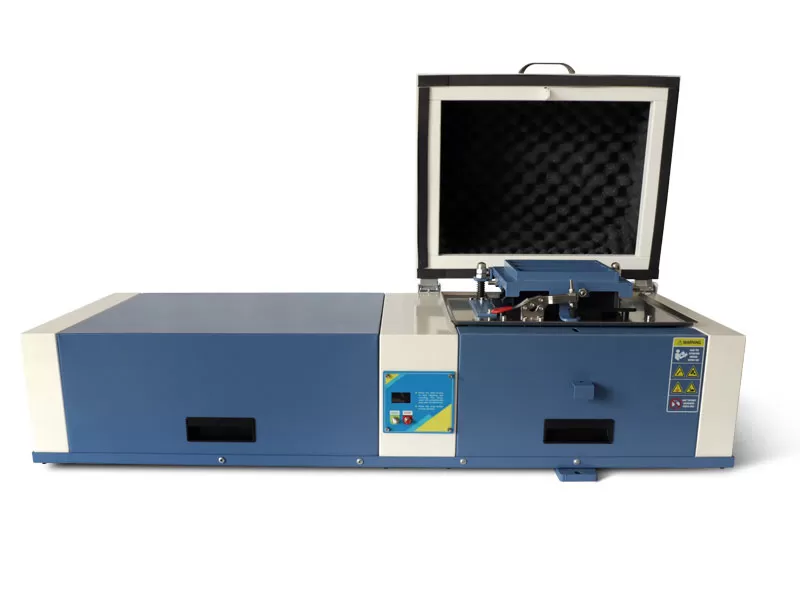

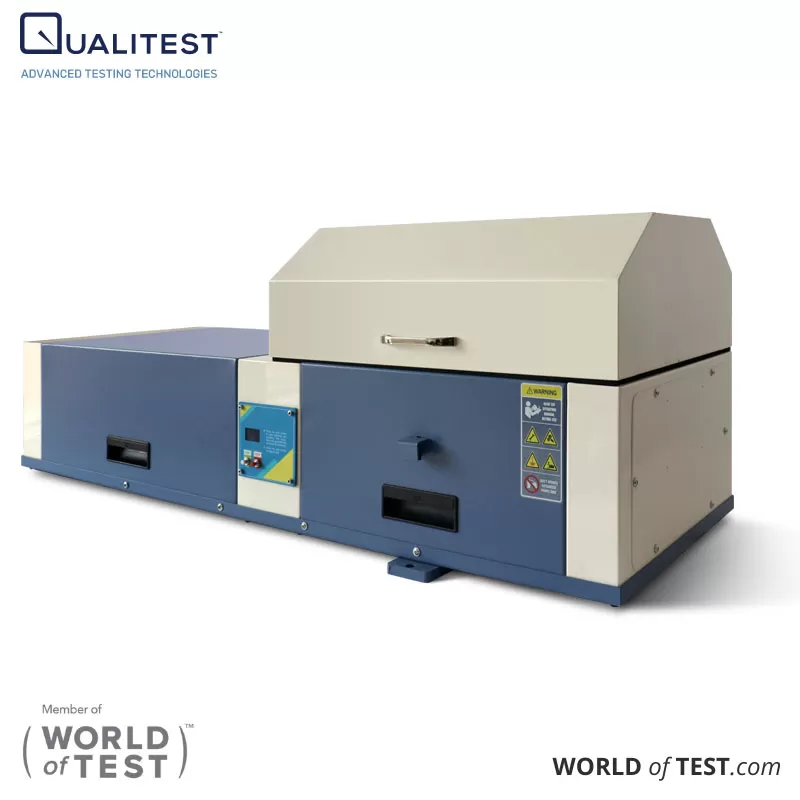

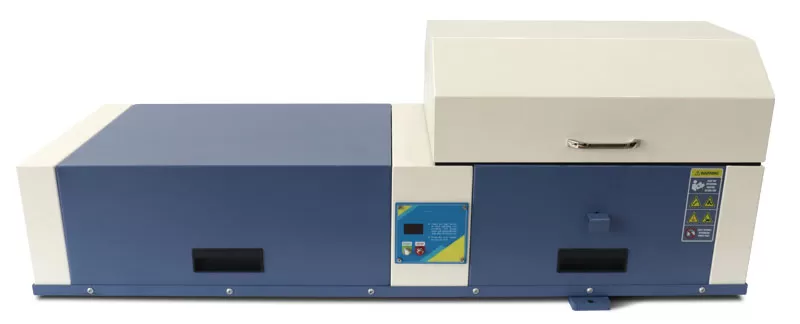

Jolting Table – QualiJolt Technical Specifications
| Specification | Details |
|---|---|
| Total weight of vibration part | 13.75kg ±0.25kg |
| Drop height | 15mm ±0.3mm |
| Vibration frequency | 60 times/60s ±2s |
| Total weight of two arms and cross bracing | 2.25kg ±0.25kg |
| Distance from table center to pivot center of the two arms | 800mm ±1mm |
| Soundproof cover locking method | Car trunk type lock |

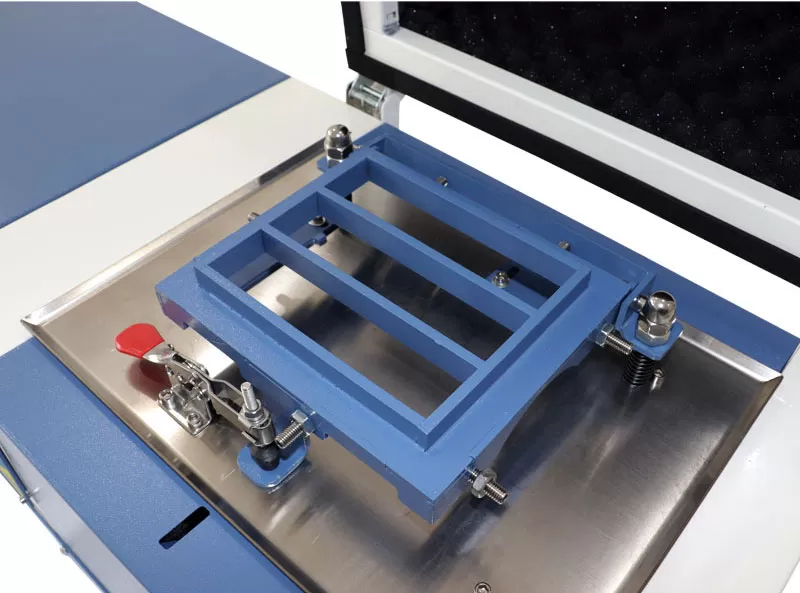

| Test mold positioning method | Roller latch positioning |
| Motor model | Quali - 90TDY060-T |
| Motor revolution | 60 r/min |
| Motor power | 70W |
| Power supply | 220V (110V is also available) |
| Net weight | 62kg |
| Dimensions | 1210 × 395 × 405mm |
