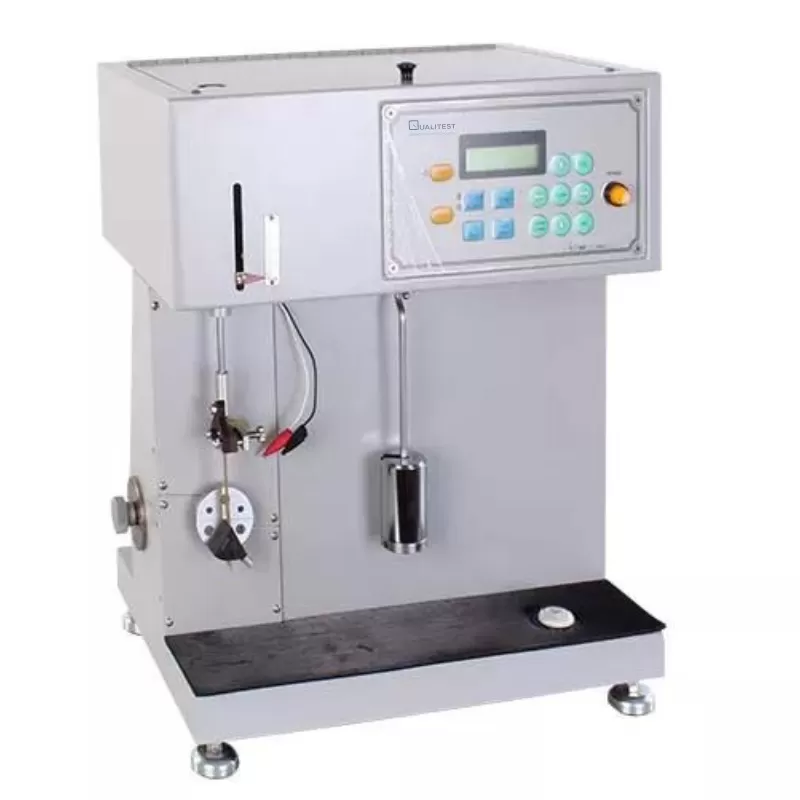

QualiMIT-B MIT Folding Endurance Tester for Circuit Boards

Contact

Product code: XODTZJHWGK

Category: Semiconductor and Electronics Reliability Testing

QualiMIT-B MIT Folding Endurance Tester Specifically designed to determine resistance to folding, this tester subjects…

Enhance the Reliability and Durability of Flexible Printed Circuit Boards with QualiMIT-B MIT Folding Endurance Tester. Specifically designed to determine resistance to folding, this tester subjects the specimen to repeated 135° folds while measuring impedance. With QualiMIT-B, accurately assess the endurance of circuit boards, ensuring they meet industry standards and perform reliably in real-world conditions. Improve product quality and customer satisfaction with QualiMIT-B

QualiMIT-B MIT Folding Endurance Tester for Circuit Boards Technical Specifications

Speed	90cpm、175cpm
Folding angle	135° or 90°
Width of folding head	19mm
Arc radius of folding surface	0.38mm
Clamping thickness of folding head	0.25mm，0.5mm，0.75mm，1.0mm，1.25mm
Dimension(W×D×H)	45×30×50 cm
Weight(approx.)	40 kg
Power	Single Phase，AC220V，50/60Hz (Or 110V Specified with Order)

QualiMIT-B MIT Folding Endurance Tester for Circuit Boards by Qualitest

QualiMIT-B is designed to determine the resistance of flexible printed circuit board to folding. During test, the specimen is folded at 135° repeatedly. The impedance of the specimen is measured.
