Name: Electric Plug / Cord Bending Tester
SKU: 8CWHNA7OE0
Availability: InStock
Rating: 5 (1 reviews)

Electric Plug / Cord Bending Tester

Contact

Product code: 8CWHNA7OE0

Electric Plug / Cord Bending Tester QualiPlugBend100 testing device is designed specifically for conducting bending…

Electric Plug / Cord Bending Tester QualiPlugBend100 Technical Specifications

Swing angle	±30°, ±45°, ±60°, ±75°, ±90° (adjustable) with angle indicator to identify bending angle.
Speed	10-100 CPM (counts per minute)
Stations	Six sets
Weight	100g, 200g, 300g, 500g (6 pieces for each capacity)
Controller	1. Include six independent counters and one gross counter. 2. Maximum testing count: 99,999,999 times
Dimension	71 x 62 x 89 cm
Weight	140 kg
Power	Single phase 100~240 V

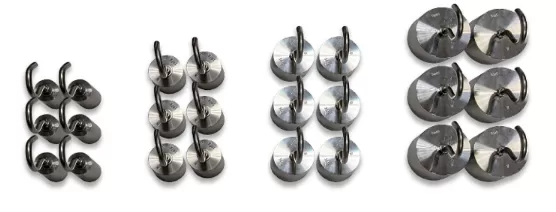

Accessories:

100g, 200g, 300g, 500g (6 pieces for each capacity)

Electric Plug / Cord Bending Tester QualiPlugBend100 Features

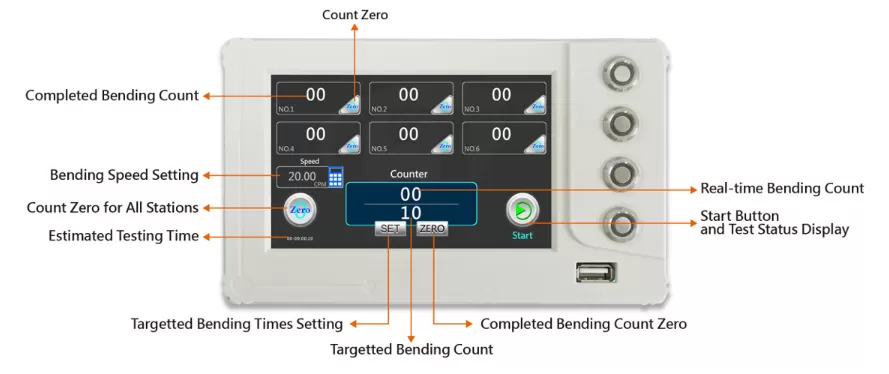

Equipped with a touch panel for easy operation.

Offers both Chinese and English interfaces.

Displays real-time machine status, such as testing, pause, and test completion.

Features an automatic counter to calculate the remaining testing time.

Allows bending count settings up to 99,999,999 cycles.

Provides high-precision digital speed adjustment, ranging from 10 to 100 CPM.

Supports display of specimen breakage, count completion, and emergency stop status.

Operates on a 100-240V power supply, suitable for various environments.

Electric Plug / Cord Bending Tester QualiPlugBend100

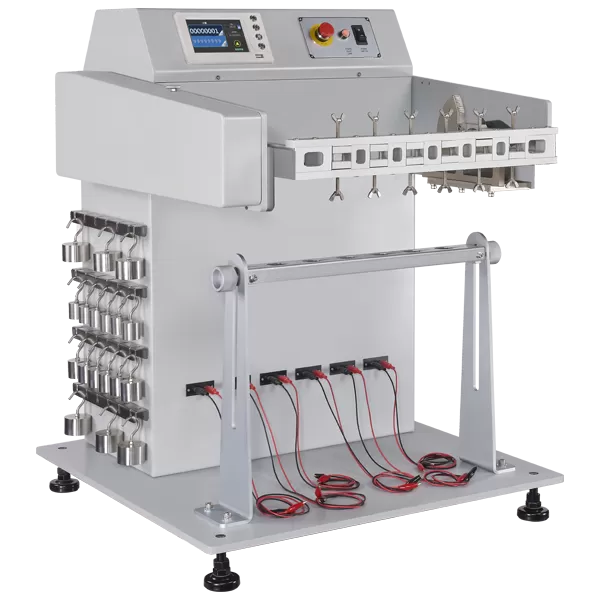

Electric Plug / Cord Bending Tester QualiPlugBend100 testing device is designed specifically for conducting bending tests on wire products. The circuit disconnects when the core wire reaches its flexural limit. The number of bends is typically measured to assess the wire's endurance. The QualiPlugBend100 features a touch panel that displays and records the bending count. The built-in system accommodates various test stop scenarios, including test completion, wire breakage, and pause functions. Additionally, it includes an emergency stop button for basic safety protection.
