Name: Fastener Torsion Tester QualiFTT
SKU: O7ZUNTE052
Availability: InStock
Rating: 5 (1 reviews)

Fastener Torsion Tester QualiFTT

Contact

Product code: O7ZUNTE052

Torsion Testing Machine QualiFTT is used to verify the suitability of high-strength bolt, nut, and washer assemblies…

Fastener Torsion Tester QualiFTT Technical Specifications

Accuracy	Torque accuracy	±1%
Accuracy	Rotation resolution	0.0001
	Rotation accuracy	±0.5%
	Bolt force accuracy	±1%
Speed of rotation		1min^-1 and 10 min^-1
Upon request	Specimen dimensions	Customer specify
	Torque	Customer specify
	Bolt force	Customer specify

Note:

The test method shall be specified, for example, EN 14399-2 or ISO 16047.

Power Supply:

Standard optional voltages are 220/380Vac, 50-60 Hz. Power must be free of spikes and surges exceeding 10% of the nominal voltage. The power supply can be customized upon request.

Humidity Range:

10% to 90% non-condensing.

Storage Temperature:

-40 to +66°C (-40 to +150°F).

Fastener Torsion Tester QualiFTT Software Features

Windows-Based Platform

The software package is user-friendly and easy to use.

Multi Measurement Units

Dimensions, bolt force, and torque can be displayed in different units upon selection.

Programmable Test Methods

Users can develop an optimal test method based on the test specimen's material and dimensions. Once a method is established, the operator only needs to load the existing test process and click "Start" to conduct tests on similar specimens.

Editable Report

Users can configure an EXCEL report template to suit their needs.

Multi Curve Diagrams

Real-time display of Rotation/Bolt force (Clamp force) and Torque/Bolt force (Clamp force) curves.
Curve comparison is available upon selection.
Any part of the testing curves can be enlarged for detailed data analysis.

Language Packages

Different language packages are available upon request.

Fastener Torsion Tester QualiFTT

Torsion Testing Machine QualiFTT is used to verify the suitability of high-strength bolt, nut, and washer assemblies for pre-loaded bolted connections in metallic structures. This test ensures that the fastener assembly behaves as expected, allowing the required pre-load to be reliably achieved using the tightening methods specified in ENV 1090, while providing sufficient margins against over-tightening and failure.

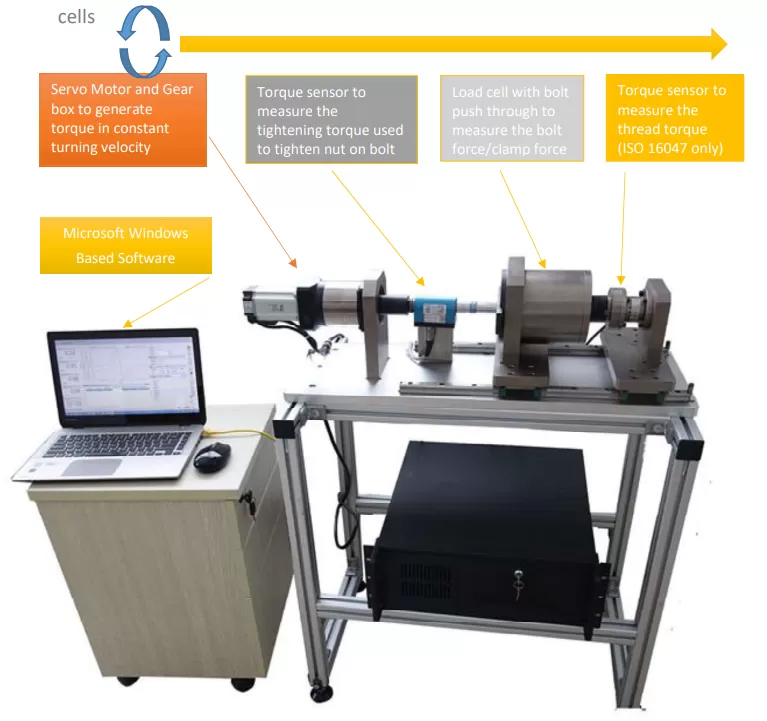

The torque is generated by a servo motor and gear box. The torsional angle is directly measured from the servo motor, and both the bolt force and torque are directly obtained from load cells.

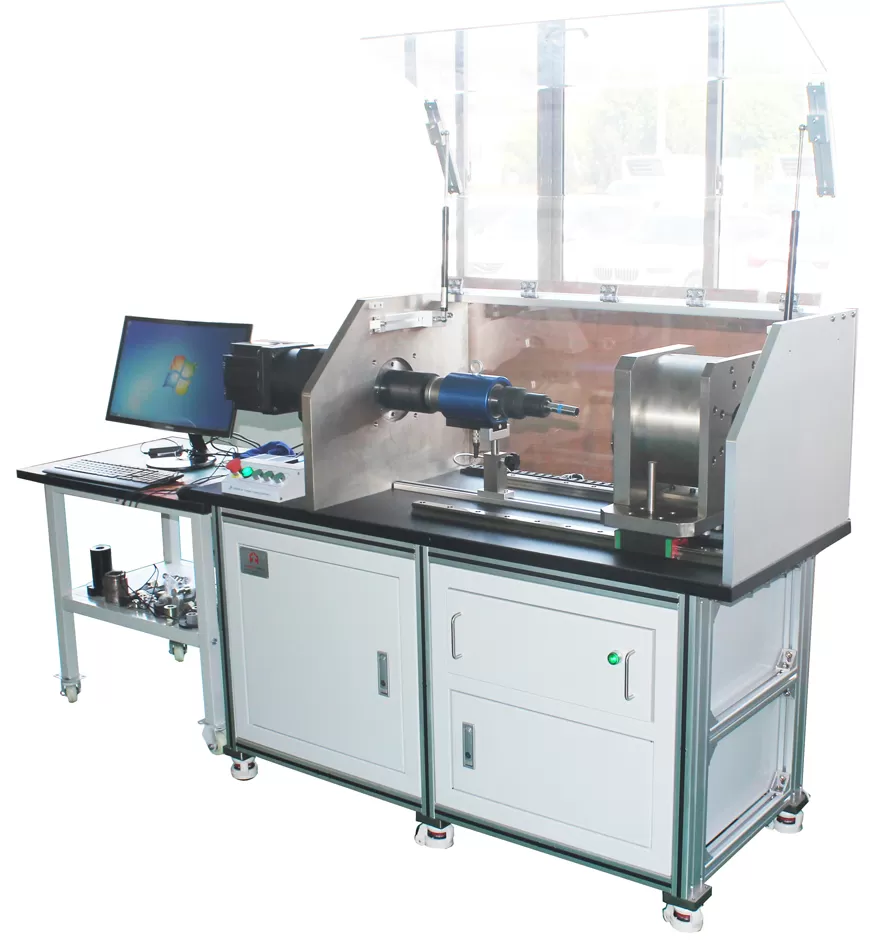

QualiFTT 10000Nm
machine designed according to EN 14399-2

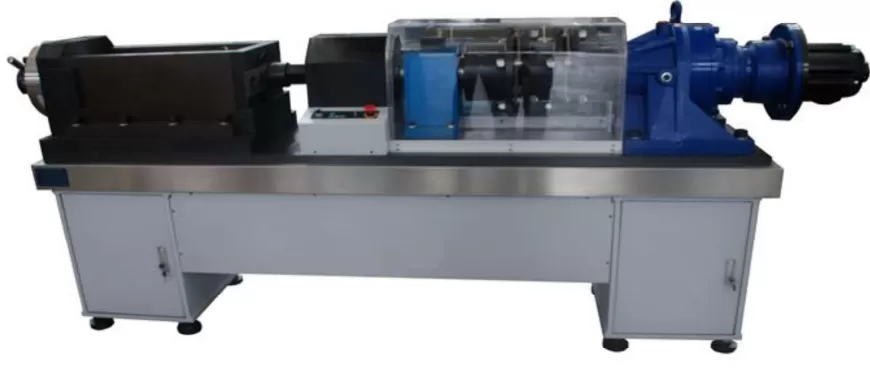

QualiFTT 5000Nm
machine designed according to ISO 16047

Applications

EN 14399-2 High-strength Structural Bolting Assemblies for Preloading - Part 2 Suitability Test for Preloading.

ISO 16047 Fasteners - Torque/clamp force testing.

Determination

QualiFTT Fastener Torsion Tester is used to verify the suitability of high-strength bolt, nut, and washer assemblies for pre-loaded bolted connections in metallic structures. The purpose of this test is to check the behavior of the fastener assembly to ensure that the required pre-load can be reliably obtained using the tightening methods specified in ENV 1090, with sufficient margins against over-tightening and failure.

The torque is generated by a servo motor and gear box. The torsional angle is directly measured from the servo motor, and both the bolt force and torque are directly obtained from load cells.
