Copper Strip Corrosion Tester QT-PETROCSCT020 Specifications:

Standard Test Methods	ASTM D130
Temperature Range	Ambient～100℃
Temperature Stability	±1℃
Test hole	4
Heater	Sheathed Heater x 2
Dimensions	14.17x10.63x19.29 inches
Weight	33.07 pounds (lbs)
Power Supply	AC220 V±10% 50/60Hz 1800W (110V is also available. Please specify when ordering)

Copper Strip Corrosion Tester QT-PETROCSCT020 Standard Accessories:

Part Number	Part Name	Q’TY
061004000	Pressure Vessel	2 sets
061002000	Cylinder holder	4 sets
061000021	Viewing test tube	1 set
014003200	Temperature sensor	1 pc
925000000	Copper strip	2 pcs
061002006	Test tube	12 pcs
061000026	Test tube stopper	2 pcs
061000006	Cover with four holes	1 pc
061006000	holder with hook	2 pcs
917001003	Fuse Ф6×30 10A	3 pcs

Copper Strip Corrosion Tester QT-PETROCSCT020D Specifications:.

Standard Test Methods	ASTM D130
Temperature Range	Ambient～130℃
Temperature Stability	±0.5℃
Test hole	10
Time display	0-3h 59min
Dimensions	11.81x11.81x18.90 inches
Weight	44.09 pounds (lbs)
Power Supply	AC220 V±10% 50/60Hz 1800W (110V is also available. Please specify when ordering)

Copper Strip Corrosion Tester QT-PETROCSCT020D Standard Accessories:

Number	Part Name	Q’TY
1	Fuse Ф6×30 10A	1 pc
2	Test tube	10 pcs
3	Test tube stopper	10 pcs
4	Pressure Vessel	2 pcs
5	Observing window	1 pc
6	holder with hook	1 pc
7	Copper strip	4 pcs
8	Cover for vessel	2 pcs
9	Cover for tubes	10 pcs
10	holder with hook	2 pcs

Copper Strip Corrosion Tester - QT-PETROCSCT020

Features:

Constructed with a stainless steel bath tank for durability and corrosion resistance.
Equipped with a digital temperature display and a high-precision PID controller to ensure precise temperature control.

Copper Strip Corrosion Tester - QT-PETROCSCT020D

Features:

Utilizes a metal bath, ensuring rapid heating for efficient testing.
Features a digital temperature display and uses a high-precision PID controller for accurate temperature regulation.
Incorporates digital timing with a time-clear function for precise timing during testing.
Eliminates the need for test jar cleaning in an oil bath setup, streamlining the testing process

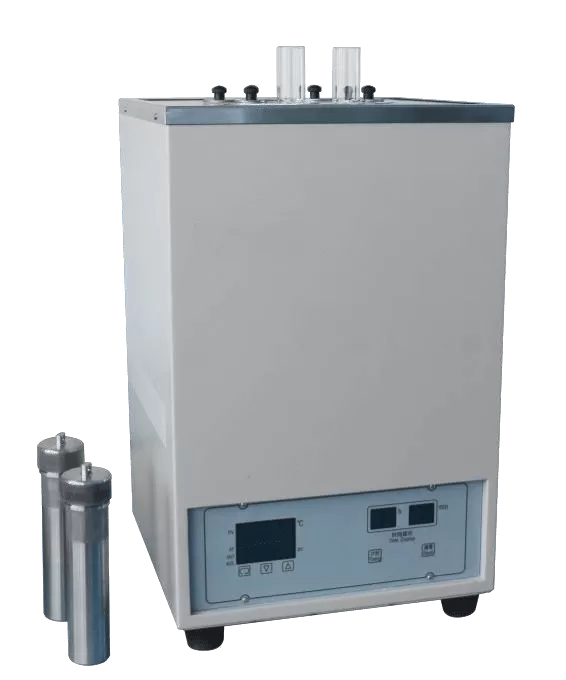

Copper Strip Corrosion Tester - QT-PETROCSCT020

Overview:

Copper Strip Corrosion Tester is purpose-built to evaluate the corrosiveness of aviation gasoline, aviation turbine fuel, diesel fuel, and distillate oil with a vapor pressure not exceeding 124kPa at 37.8℃ toward copper surfaces, following specified standards.

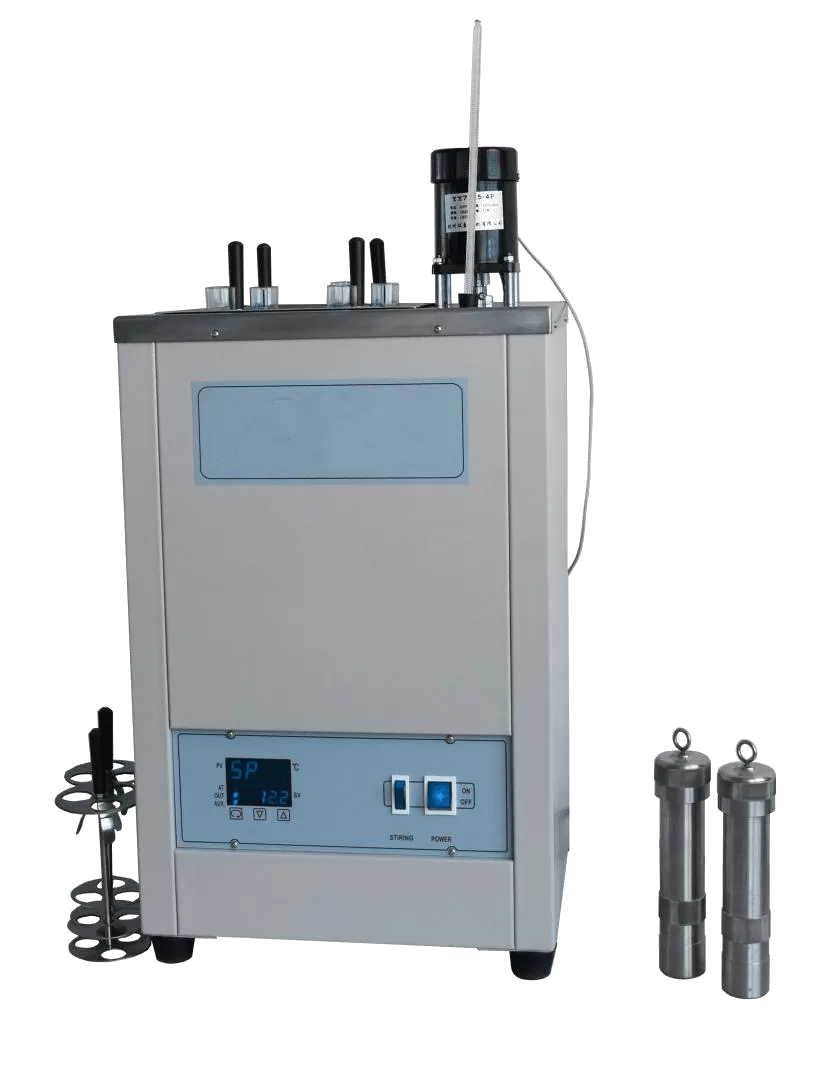

Copper Strip Corrosion Tester QT-PETROCSCT020D

Overview:

Copper Strip Corrosion Tester is engineered to assess the corrosiveness of substances such as aviation gasoline, aviation turbine fuel, diesel fuel, and lubricating oils, provided they have a vapor pressure not exceeding 124kPa at 37.8℃.
